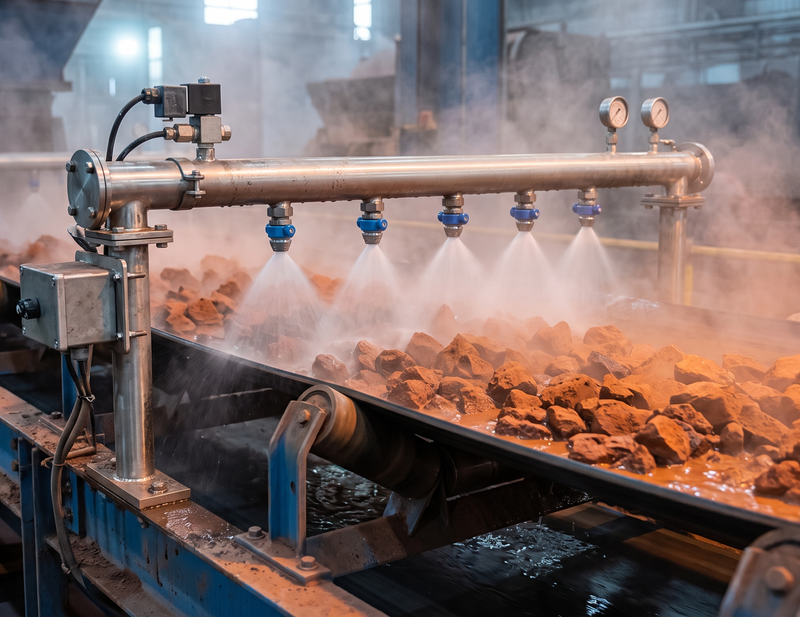

Cooling & Cleaning Iron Ore on Conveyors:
The Spray Nozzle Specification Guide
Why generic pipes and off-the-shelf nozzles fail on hot, abrasive iron ore conveyors — and exactly which spray nozzle types, materials, and configurations mining operations need to get the job done right.
Key Takeaways
- Full cone nozzles deliver the uniform, high-volume spray coverage required to cool iron ore and briquettes efficiently on moving belts — maximizing evaporative heat transfer per gallon of water used.
- Mining operations use recycled or reclaimed water loaded with particulates. Only nozzles with a high Maximum Free Passage (MFP) rating resist clogging in these conditions — spiral and deflector designs are the standard solution.
- Iron ore dust is highly abrasive. Standard stainless steel nozzles wear and enlarge within weeks; 416 SS, silicon carbide, or tungsten carbide orifice inserts are required for acceptable service life.
- Dust suppression requires a different nozzle strategy than cooling — fog and mist nozzles for airborne dust capture; flat fan nozzles for water curtain suppression at load and transfer points.
- Specifying the correct system requires six data points: belt width, belt speed, material temperature range, tonnage per hour, supply pressure, and water quality.
Iron ore conveyors operate in some of the most punishing spray environments in industry. Material comes off the furnace or sinter plant running well above ambient temperature, loaded with fine abrasive dust, and often still carrying chemically aggressive residuals. The belt underneath it is expensive to replace. The dust it generates is a regulatory and safety liability. And the water supply available on site is rarely clean enough for conventional nozzles to handle without constant maintenance intervention.
The temptation on site is to run a drilled pipe across the belt and call it a solution. Drilled pipes don't atomize, don't control droplet size, distribute water unevenly, and wear their holes oval within months — delivering excess flow in some zones and nothing in others. The result is a wet belt, inadequate cooling, and a clogged, ineffective system within a season.
What actually works is an engineered spray header using nozzles specified for the exact combination of material temperature, belt geometry, water quality, and target outcome. This guide explains the specification decisions that determine whether a conveyor spray system delivers reliable, efficient performance — or becomes a maintenance problem that never goes away.
Why Nozzle Selection Determines System Success
In a conveyor cooling application, the nozzle is the point where engineering meets physics. Everything upstream — the pump, the supply line, the header manifold — exists to deliver water at a specified pressure and flow rate to the nozzle orifice. What happens at the orifice determines whether that water is converted into a cooling spray that efficiently transfers heat from the iron ore, or into an oversized stream that floods the belt and achieves little thermal exchange.
Three variables at the nozzle define cooling performance: spray pattern (how the water is distributed across the target area), droplet size (which governs the surface area available for evaporative heat transfer), and impact velocity (which drives mechanical cleaning of fines from the ore surface). Getting all three right simultaneously — within the constraints of your available water pressure and the need to resist clogging and wear — is the engineering challenge that generic pipes and commodity nozzles cannot meet.
"In iron ore cooling, the nozzle is not a commodity component — it is the heat exchanger. Its geometry, orifice size, and material directly determine the energy efficiency of your entire cooling system."
Spray Pattern Selection for Iron Ore Conveyor Cooling
Full cone spray nozzles are the standard choice for iron ore and briquette cooling on conveyor belts. They produce a uniform, volumetric spray pattern that distributes water evenly across a circular or square impact area — maximizing contact between cooling water and the irregular surfaces of ore chunks and briquettes. For dust suppression at transfer points, flat fan nozzles provide a concentrated water curtain to intercept and knock down airborne fines.
Full Cone Nozzles — Primary Cooling
For the core cooling function — reducing the temperature of hot iron ore and briquettes as they travel on the belt — full cone spray nozzles are the proven industrial standard. A full cone nozzle converts supply pressure into a solid, uniformly filled spray pattern that covers a defined circular or square area. When mounted across the conveyor width in a properly spaced header, multiple full cone nozzles overlap to blanket the entire ore surface with water at the correct density.
The engineering advantage of a full cone pattern in this application is penetration. Iron ore on a moving belt is not a flat surface — it is a pile of irregular chunks with gaps and voids between them. A full cone spray drives water into those gaps, wetting the interior surfaces of the ore pile, not just the top layer. This dramatically increases the total wetted surface area in contact with the cooling water, which is directly proportional to the rate of heat transfer.
Flat Fan Nozzles — Fines Washing & Water Curtains
Flat fan spray nozzles produce a concentrated, high-impact sheet of water in a single plane — the geometry of choice where you need directional washing force or a defined water curtain across the belt width. In iron ore conveyor applications, flat fan nozzles serve two specific roles: mechanical washing of surface fines from the ore before it reaches the next process stage, and water curtain dust suppression at transfer points where material drops from one belt to another and generates a dust plume.
Flat fans are not the right choice for bulk cooling — their concentrated impact area and line distribution pattern don't distribute water broadly enough to achieve the thermal exchange required across a full ore load. They excel at the targeted, high-impact applications where penetrating a moving pile of ore isn't the requirement.
Full Cone Nozzles
Uniform, volumetric spray pattern for maximum surface coverage on irregular ore and briquette profiles. Best for bulk thermal reduction along the conveyor run.
Shop Full Cone → Washing & CurtainsFlat Fan Nozzles
High-impact sheet spray for surface fines washing and water curtain dust control at transfer and load points where directional force is required.
Shop Flat Fan → Dust CaptureFog & Mist Nozzles
Ultra-fine droplets for airborne dust particle agglomeration and capture — designed for enclosed transfer points and elevated dust generation zones.
Shop Fog & Mist →Droplet Size and Heat Transfer: The Physics That Drive Cooling Efficiency
The rate at which a spray cools a hot surface is governed by the contact surface area between the water droplets and the material — and droplet surface area is inversely proportional to droplet size. Smaller droplets have dramatically more total surface area per unit volume of water than large ones. This means that a finer, more atomized spray transfers heat more efficiently per gallon of water consumed than a coarse stream from a drilled pipe or a high-flow soaker.
However, very fine mist droplets (below about 100 microns) lose velocity quickly and may not penetrate deep into a pile of ore chunks on a moving belt. For iron ore conveyor cooling, the optimal droplet size balances penetration (driving water into the ore pile) with surface area (maximizing thermal contact per drop). Most full cone nozzles in the 250–500 micron range, operating at the pressures typical of mining supply systems, hit this balance well.
Increasing operating pressure does reduce droplet size and increase spray velocity, but above a certain point it begins to generate excessive mist that drifts off the belt rather than contacting the ore. This is why specifying the correct nozzle capacity size at your actual available pressure — rather than just grabbing the highest-pressure nozzle available — is essential to system efficiency.
Cooling & quenching nozzles for mining and heavy industry. Full cone, hollow cone, and specialized designs rated for high-temperature, high-particulate environments.
Maximum Free Passage: Solving the Clog Problem in Mining Water
Mining operations almost never use clean municipal water for conveyor spraying. Recycled process water, pond water, and reclaimed mine water contain suspended solids, scale, and sediment that block conventional nozzle passages quickly. The solution is to specify nozzles with a high Maximum Free Passage (MFP) rating — a parameter that defines the largest particle the nozzle can pass without clogging. Spiral-type and deflector-type full cone nozzles are specifically designed for this requirement, featuring large internal flow paths with no small restrictions.
Maximum Free Passage (MFP) is one of the most important specifications in any mining nozzle application — and one of the most commonly ignored by engineers who specify nozzles without mining-specific experience. MFP is expressed in millimeters and defines the diameter of the largest sphere that can pass through the nozzle's internal flow path without obstruction.
A nozzle with a 3mm MFP will pass any particle smaller than 3mm in diameter — including sediment, scale flakes, and mineral fines — without clogging. A standard precision industrial nozzle with an MFP of 0.5mm will block on the same water within minutes of operation. In a continuous mining operation where stopping the conveyor to clear nozzles means stopping production, nozzle clogging is not a minor inconvenience — it is an operational cost and a safety risk.
Nozzle Designs Engineered for High Free Passage
| Design Type | How It Achieves High MFP | Best For |
|---|---|---|
| Spiral Full Cone | No internal vane or insert — liquid spirals through an open, unrestricted passage and exits as a full cone pattern | Heavily contaminated recycled water; maximum clog resistance; highest MFP of any full cone design |
| Deflector / Tangential Full Cone | Large tangential inlet channels guide flow into a swirl chamber with generous passage dimensions | Moderately contaminated water; good MFP with fine atomization characteristics |
| Flat Fan (full-width slot) | Wide slot orifice rather than a round hole — width allows passage of elongated particles | Water curtains and surface washing with mine water containing fibrous or elongated particles |
| Standard Vane Full Cone | Internal vane creates swirl — small clearances around vane edges limit MFP | Clean or filtered supply water only — will clog rapidly on mine water without upstream filtration |
Filtration still matters even with high-MFP nozzles. A coarse inlet strainer upstream of the spray header is good practice regardless of nozzle design — it removes large debris that could mechanically damage nozzles even if it doesn't cause clogging. A 30–50 mesh strainer (matching the MFP of your selected nozzles) provides protection without introducing pressure drop from fine filtering.
Material Durability: Surviving Iron Ore's Abrasive Environment
For iron ore and briquette conveyor applications, nozzles must be specified in abrasion-resistant materials. 316L stainless steel handles most mine water chemistries. For high-abrasive environments, 416 hardened stainless steel or silicon carbide orifice components extend service life significantly. In the most demanding installations — very high particulate loads or chemically aggressive water — tungsten carbide orifice inserts deliver the greatest longevity, resisting the erosive wear that progressively enlarges orifices and destroys flow calibration over time.
Iron ore dust is one of the most abrasive substances encountered in industrial spray applications. Airborne fines from a hot ore belt combine with the evaporated water droplets in the spray zone to create an abrasive mist that attacks every surface it contacts — including the nozzle orifice. Mine water compounds this with dissolved minerals and particulates that wear orifice edges from the inside as they pass through at velocity.
When an orifice wears — even slightly — the effects cascade through the entire system. Orifice diameter increases, flow rate increases, operating pressure drops, spray pattern geometry deteriorates, and the coverage uniformity that makes the cooling system effective begins to collapse. A worn nozzle in a mining application doesn't just fail — it continues to operate while consuming more water and delivering less performance, making the problem invisible until the damage to belts and process quality has already accumulated.
Material Selection by Duty Level
| Material | Relative Wear Resistance | Best Application |
|---|---|---|
| 304 Stainless Steel | Baseline for industrial use | Low-pressure, low-abrasive environments only; not recommended for continuous iron ore service |
| 316L Stainless Steel | 4–6× vs. brass baseline | Standard for mining water chemistry; good corrosion resistance; moderate abrasive loading |
| 416 Hardened Stainless | 10–15× vs. brass baseline | High-abrasive mine water or airborne dust environments; significantly extended service life |
| Silicon Carbide | 90–130× vs. brass baseline | Extreme abrasive environments; slurry applications; best-in-class longevity for most mining installations |
| Tungsten Carbide Insert | 180–250× vs. brass baseline | Highest-duty applications; maximum orifice dimensional stability over service life |
Nozzles Engineered for Mining Environments
NozzlePro's mining nozzle collection covers cooling, dust suppression, and conveyor washing — in materials specified for abrasive, particulate-heavy mining water conditions.
Shop Mining Nozzles Cooling & QuenchingDust Suppression Nozzle Strategy
Cooling and dust suppression are related but technically distinct applications — and they require different nozzle strategies. Conflating them leads to systems that do neither well. Iron ore and briquette conveyors typically generate dust at two distinct points: along the belt run (from material abrasion and wind), and at transfer points where material drops from one belt to another or into a hopper, generating an explosive plume of airborne fines.
Airborne Dust Capture: Fog & Mist Nozzles
For dust that is already airborne — suspended in the air above or around the belt — the effective suppression mechanism is agglomeration: fine water droplets collide with dust particles, add mass, and cause them to fall out of the air column. This requires droplets in the 50–150 micron range — small enough to remain suspended long enough to intercept dust particles, but large enough to carry the momentum to knock them down rather than floating alongside them. Fog and mist nozzles produce this droplet range at relatively low water volumes, which is important in dust suppression — too much water turns dust into mud and creates a new operational problem.
Transfer Point Control: Flat Fan Water Curtains
At transfer points — where the real dust generation occurs — the most effective strategy is to prevent the dust from becoming airborne in the first place. Flat fan nozzles positioned at the inlet of the receiving belt create a water curtain that intercepts the falling material stream and knocks down the dust cloud before it disperses into the surrounding environment. This application requires nozzles with higher flow rates and a defined, wide flat fan angle to cover the full width of the transfer chute.
For a complete dust control strategy, see NozzlePro's dust and pollution control nozzle collection — including suppression, curtain, and fogging designs for mining environments.
System Components Beyond the Nozzle
The nozzle is the core specification decision, but a complete conveyor spray system requires several supporting components to function reliably. Understanding what else goes into the system helps operations teams scope the installation accurately and avoid the most common commissioning problems.
- Spray Header / Manifold: A schedule 40 or schedule 80 stainless steel pipe spanning the belt width, with threaded or socket-weld ports at calculated spacing to hold each nozzle at the correct standoff height and alignment. Header sizing must accommodate the total flow rate without creating pressure drop that under-supplies end nozzles.
- Inlet Strainer: A coarse inline strainer (typically 20–50 mesh stainless, matched to nozzle MFP) installed upstream of the header to intercept large debris. Self-cleaning or Y-strainer designs with a blowdown valve allow maintenance without full system shutdown.
- Solenoid Control Valve: Tied to the conveyor's PLC or motor starter so that water flow stops automatically when the belt stops running. A belt that stops while the spray system continues operating floods the stopped ore load and creates a water management problem. This is a non-optional component in any well-engineered system.
- Pressure Gauge and Flow Meter: Instruments at the header inlet allow operators to verify that the system is operating within specification and detect wear over time. A flow meter that shows increasing GPM at steady pressure is the most reliable early indicator of nozzle orifice wear.
- Mounting Framework: Typically strut channel (Unistrut or equivalent) bolted to the conveyor's side rail structure, supporting the header at the specified standoff height above the belt. Verify that mounting hardware is stainless or hot-dip galvanized — a coastal or chemical-wet mining environment will corrode mild steel hardware within a season.
What to Have Ready When You Contact NozzlePro
Providing complete, accurate data at the outset eliminates back-and-forth and allows us to specify the correct nozzle size, spacing, spray angle, and total system flow rate in one exchange. Here is the full data set needed to produce an accurate specification for a conveyor cooling and/or dust suppression system:
Iron Ore Conveyor Spray System: Quote Checklist
Have your conveyor specs ready? Contact NozzlePro's team directly and we'll specify the exact nozzle type, size, spacing, and flow rate for your iron ore cooling or dust suppression application.
Frequently Asked Questions
What type of spray nozzle is best for cooling hot iron ore on a conveyor belt?
Full cone spray nozzles are the standard choice for iron ore and briquette cooling on conveyor belts. Their uniform, volumetric spray pattern distributes water evenly across the full impact area and drives penetration into the irregular gaps between ore chunks — maximizing total wetted surface area and accelerating evaporative heat transfer. For supplemental dust suppression at transfer points, flat fan nozzles provide a concentrated water curtain to intercept airborne fines.
Why do spray nozzles clog in mining conveyor applications — and how do you prevent it?
Mining operations typically use recycled process water or reclaimed mine water containing suspended solids, sediment, and scale. Standard industrial nozzles with small internal passages block rapidly under these conditions. The solution is to specify nozzles with a high Maximum Free Passage (MFP) rating — a parameter defining the largest particle the nozzle can pass without clogging. Spiral-type full cone nozzles have no internal vane and achieve the highest MFP of any full cone design. A coarse inlet strainer upstream of the header removes oversized debris that could damage nozzles even if it doesn't cause clogging.
What nozzle material should I specify for iron ore mining water?
316L stainless steel is the standard starting point for mine water chemistry compatibility. For high-abrasive loading from iron ore fines in the water or spray zone, 416 hardened stainless or silicon carbide components extend service life significantly. For the most demanding installations — very high particulate concentrations or abrasive slurry — tungsten carbide orifice inserts provide the greatest dimensional stability over time, resisting the orifice enlargement that degrades flow calibration and spray pattern quality.
How do spray nozzles suppress dust from iron ore conveyor belts?
Two distinct nozzle strategies address mining conveyor dust. Fog and mist nozzles produce fine droplets (50–150 microns) that collide with and agglomerate airborne dust particles, adding mass and causing them to fall out of the air. This approach is best for dust already suspended in the air above the belt. At transfer points where dust is generated by falling material, flat fan nozzles positioned at the chute inlet create a water curtain that intercepts the material stream and prevents dust from becoming airborne in the first place. See NozzlePro's dust and pollution control collection for the full range of options.
What information do I need to get a quote for a conveyor cooling system?
To specify nozzles and headers accurately, NozzlePro needs: belt width and belt speed, tonnage per hour, starting and target material temperatures, available water pressure (PSI) and maximum flow rate (GPM) at the header location, water source (fresh, recycled, or reclaimed mine water), approximate water quality, and whether your goal is cooling only, combined cooling and dust suppression, or surface washing. With this data, we can calculate the exact nozzle type, capacity size, spray angle, header spacing, and total system flow rate for your installation.
Can the same nozzle system handle both cooling and dust suppression?
A single nozzle cannot simultaneously optimize for both functions because cooling requires coarser, higher-velocity droplets for penetration and thermal contact, while dust suppression (especially airborne dust agglomeration) requires finer mist with lower velocity to remain suspended long enough to intercept particles. In practice, most complete conveyor spray systems use a combination: full cone nozzles spaced along the belt run for cooling, plus fog/mist or flat fan nozzles positioned specifically at transfer points for dust control. NozzlePro can specify both zones as part of a single system design.
