Solid Stream Spray Nozzles

A solid stream nozzle produces a tight, non-diverging liquid jet, the highest-impact spray pattern available. Unlike hollow cone or flat fan nozzles that distribute liquid across an area, solid stream nozzles concentrate all flow into a single coherent stream. They are selected when maximum mechanical impact is required: descaling, pressure washing, tank jetting, and surface cleaning operations where softer spray patterns cannot dislodge the target material.

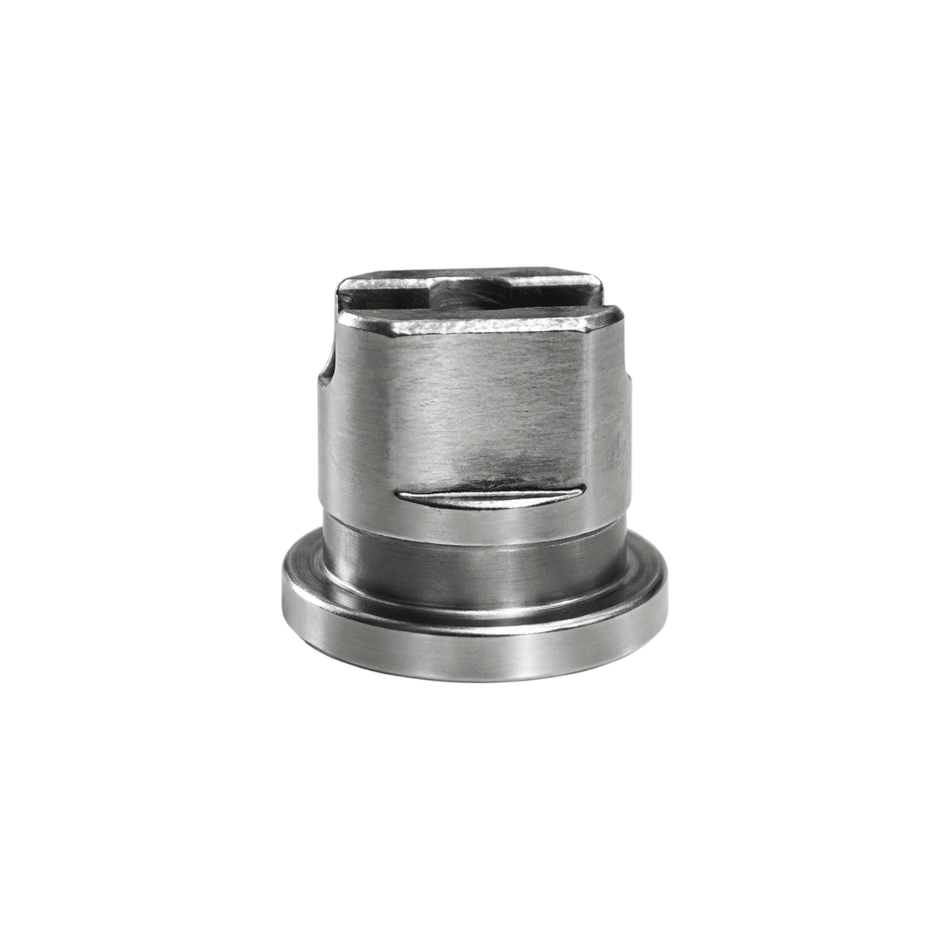

A solid stream impactor nozzle is a high-pressure variant that uses a hardened orifice insert, typically tungsten carbide or hardened stainless steel, instead of a directly drilled orifice in the nozzle body. At operating pressures above approximately 3,000 PSI, standard stainless steel orifices erode, widening the bore and degrading jet quality over time. Impactor nozzle inserts maintain precise orifice geometry across their rated service life. NozzlePro impactor nozzles are available in hardened stainless steel for industrial cleaning and high-pressure washing applications.

Solid stream nozzles concentrate all flow into a single high-impact point, the right choice when you need penetrating force to dislodge scale, mineral deposits, or tenacious fouling from a defined target area. Flat fan nozzles spread flow across a wide linear band, covering more surface area per pass but delivering lower impact per unit area. For large surface cleaning or tank washing applications, solid stream nozzles are frequently mounted in rotating or oscillating headers to combine their high-impact jet with programmatic coverage.

Common material options may include hardened stainless steel, 316L stainless steel, brass, and 303/304 stainless steel. Always match materials to fluid chemistry, temperature, and wear conditions.

Common options vary by series, but many selections compare sizes such as 1/4 in. and 1/8 in. with NPT connections where available.

Standard solid stream nozzles are rated for operating pressures from 20 PSI up to approximately 3,000 PSI depending on the specific model and orifice size. Solid stream impactor nozzles extend this range to 3,000–15,000 PSI or higher. Hardened orifice inserts are required above approximately 3,000 PSI to prevent wear-induced degradation of jet quality and flow rate accuracy.

Common applications include Cleaning & Washing, Coating & Surface Treatment, Cooling & Quenching, and Humidification & Conditioning.

Impact force is a function of flow rate, liquid velocity at the orifice, and jet coherence at the target distance. Higher operating pressure and larger orifice diameter both increase impact force; greater distance to target reduces it as the jet begins to break up. NozzlePro engineering can provide impact force estimates for specific nozzle models, pressures, and throw distances. Use the contact form or call our team with your operating pressure, required flow rate, and target distance.

Choose the correct material and orifice design for the fluid, verify filtration where needed, and set a maintenance routine based on actual service conditions.

Reach out when you need help balancing process performance, pressure, chemistry, maintenance access, or multiple candidate series.
