Flat Fan Spray Nozzles Series

Flat Fan Spray Nozzles

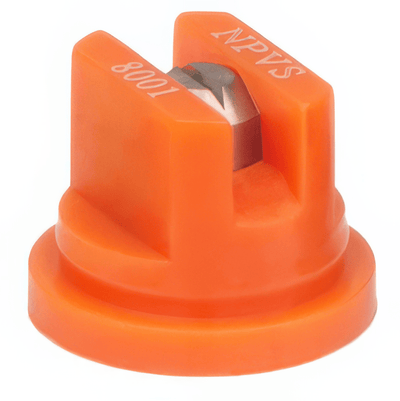

Flat Fan Spray Nozzles flat-spray nozzles deliver a controlled fan pattern with selectable spray angles and flow capacities for industrial coverage.

• Multiple spray pattern options available.
• Broad flow and pressure operating ranges.
• Select by required flow rate, spray angle/coverage, and operating pressure at the point of use.
• Confirm inlet connection size and material compatibility for chemicals, temperature, and wear conditions.

Spray Pattern Flat Fan

Available SKUs 1765 Products

Quality Industrial Grade

Shipping Ships Fast

Sort by:

1765 Products

- Multiple spray pattern options available
- Broad flow and pressure operating ranges
- Compatible with standard NPT connections
- Available in corrosion-resistant materials

Select products from this collection when designing or maintaining systems that require controlled liquid distribution for flat fan spray nozzles operations. Final nozzle selection should be based on flow rate, spray angle, operating pressure, and material compatibility.

What is the Flat Fan Spray Nozzles series used for?

Flat Fan Spray Nozzles flat spray nozzles produce a uniform, fan-shaped pattern for cleaning, rinsing, coating, and cooling. They're ideal for conveyor washing, parts cleaning, surface treatment, and spray bar applications.

What spray angles are available for Flat Fan Spray Nozzles?

Spray angles typically range from 15° to 110°. Narrow angles (15°–40°) deliver higher impact for cleaning. Wider angles (65°–110°) provide broader coverage for rinsing and coating applications.

How do I calculate Flat Fan Spray Nozzles spray coverage?

Use: Spray Width = 2 × Distance × tan(Spray Angle ÷ 2). For spray bars, space nozzles at about 40% of the theoretical width to ensure uniform overlap. Higher pressure narrows the angle slightly.

What materials are available for Flat Fan Spray Nozzles?

Flat Fan Spray Nozzles nozzles are available in brass for general use, 316L stainless steel for corrosive or food-contact applications, and specialty materials like PVDF and polypropylene for chemical resistance.

How do I select the right Flat Fan Spray Nozzles capacity?

Match flow rate to your application needs at your operating pressure. Capacity codes indicate flow at the standard rating pressure (typically 40 PSI for flat sprays). Use flow charts to verify.

What series are similar to Flat Fan Spray Nozzles?

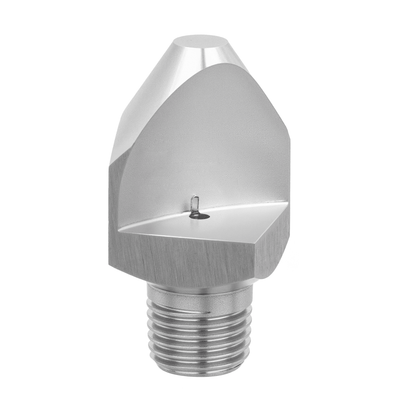

Related flat spray options include NPHU, NPHV, NPHVL, NPHV-KY/PP, NPK, NPP, NPU, NP3U—compare by spray angle, capacity range, and connection size.
