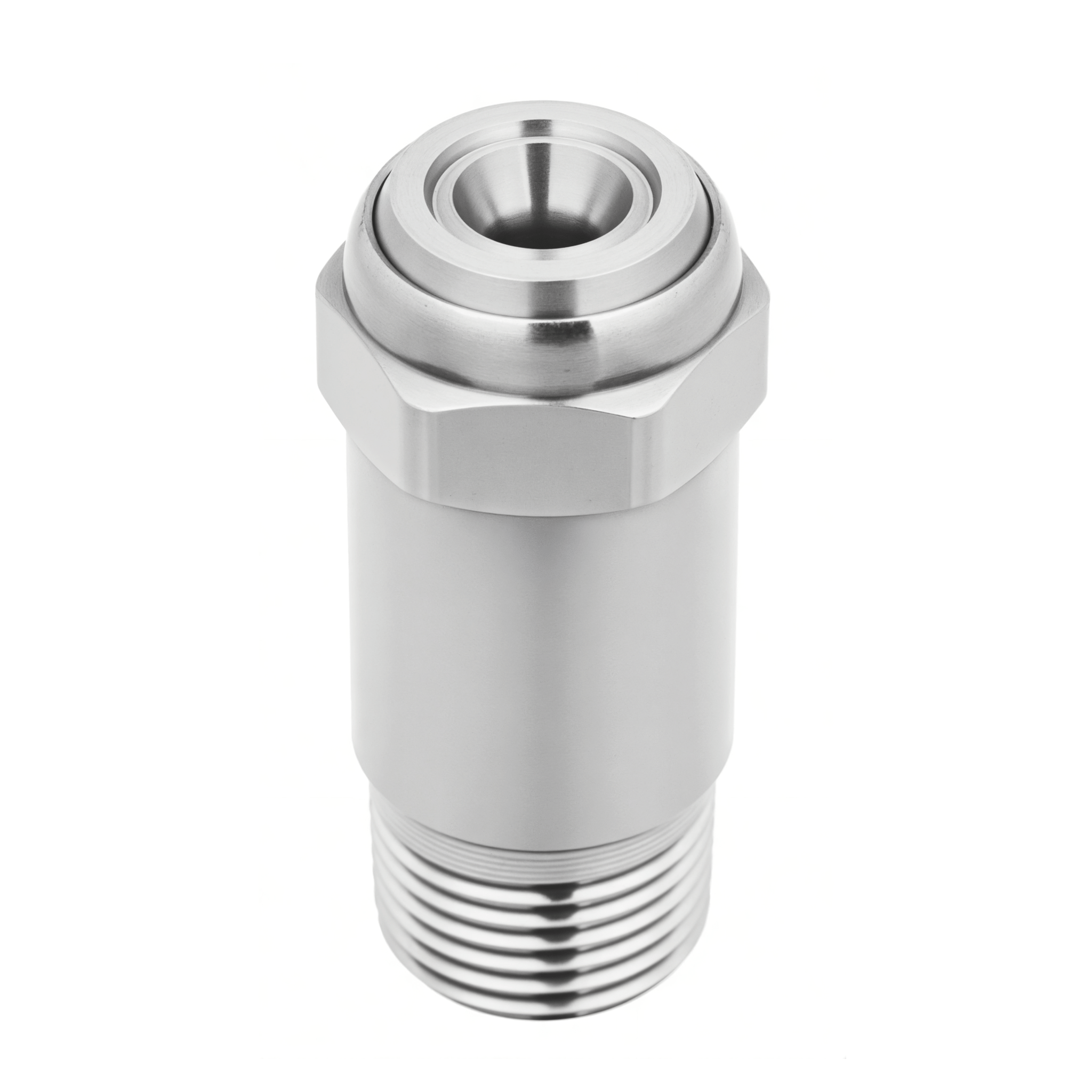

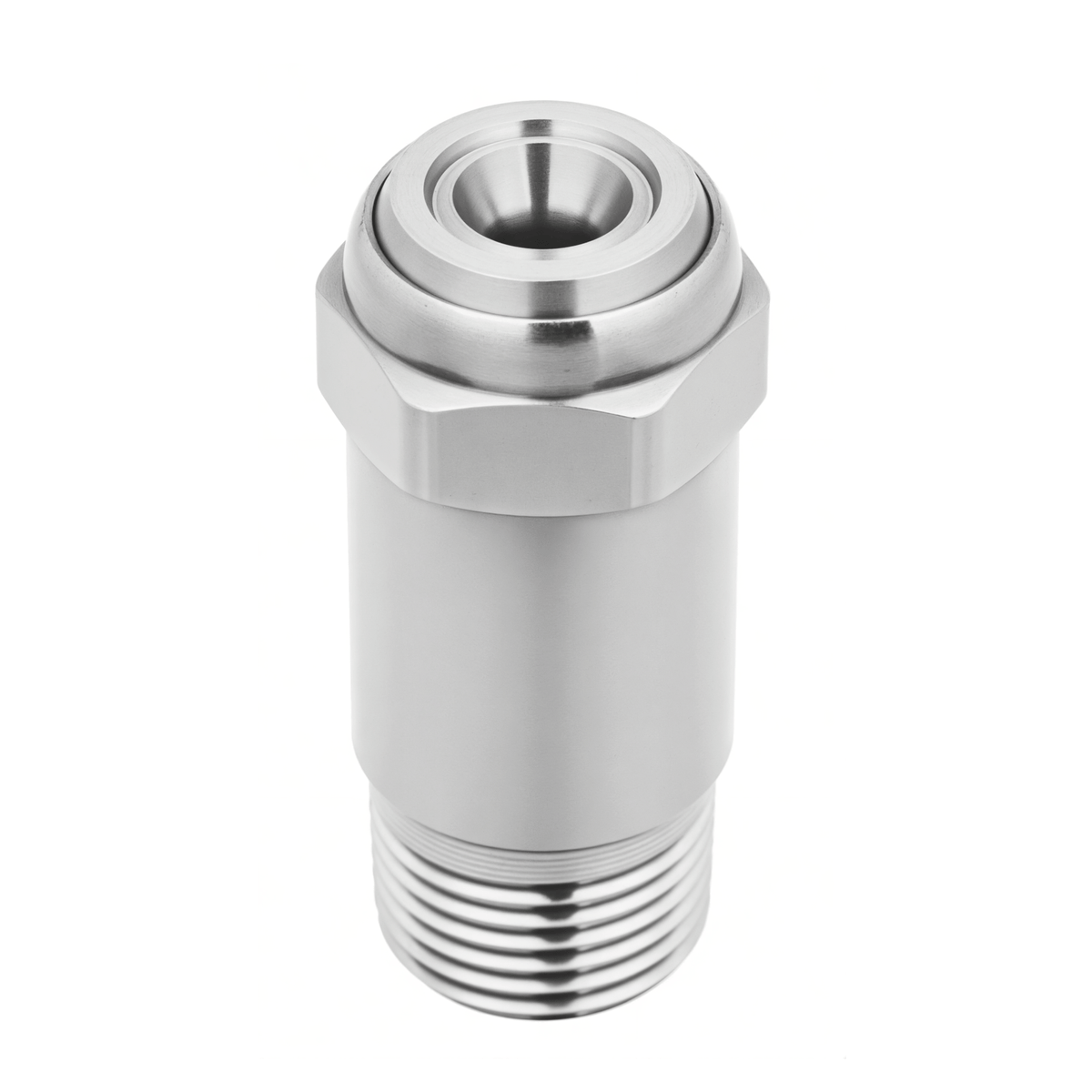

NPMFP-6032-1/2M-316 – Full Cone Nozzle, 1/2 Inlet, 316L Stainless Steel
Images are representative. Products may differ in material or configuration.
Images are representative. Products may differ in material or configuration.
Product Parameters
| Product Family | Full Cone |
|---|---|
| Product Series | NPMFP |
| Capacity Size | 32 |
| Inlet Connection Thread Type | NPT |
| Material Composition Filter | 316L stainless steel |
| Inlet Connection Size (in.) | 1/2 |
| Length (mm) | 45.1 |
| Length (in) | 1.225 |
| Hex Size (mm) | 25.4 |
| Hex Size (in) | 7/8 |
| Spray Angle at Rated Pressure (PSI) | 60 |
| Max. Free Passage Dia. (mm) | 4.8 |
Description
Product Overview
Inside the food & beverage line's trucking & fleet wash stage, a utilities coordinator relies on the NPMFP-6032-1/2M-316 to deliver consistent cleaning performance. Constructed from 316l stainless steel, the nozzle withstands corrosive cleaning agents and prolonged exposure to moisture. Its full cone spray pattern ensures even coverage across vehicle surfaces, reducing rework and minimizing water usage. This precise distribution supports operational efficiency while maintaining strict hygiene standards.
Applications
In trucking & fleet wash operations, the nozzle's uniform spray pattern facilitates effective cleaning & washing, helping to remove residues and contaminants without excess fluid consumption. Additionally, its resistance to harsh chemicals makes it suitable for specialty applications where durability and consistent spray quality are necessary to maintain process reliability.
Industries
The NPMFP-6032-1/2M-316 is widely used in automotive, chemical processing, and food & beverage sectors due to its corrosion resistance and spray uniformity.
