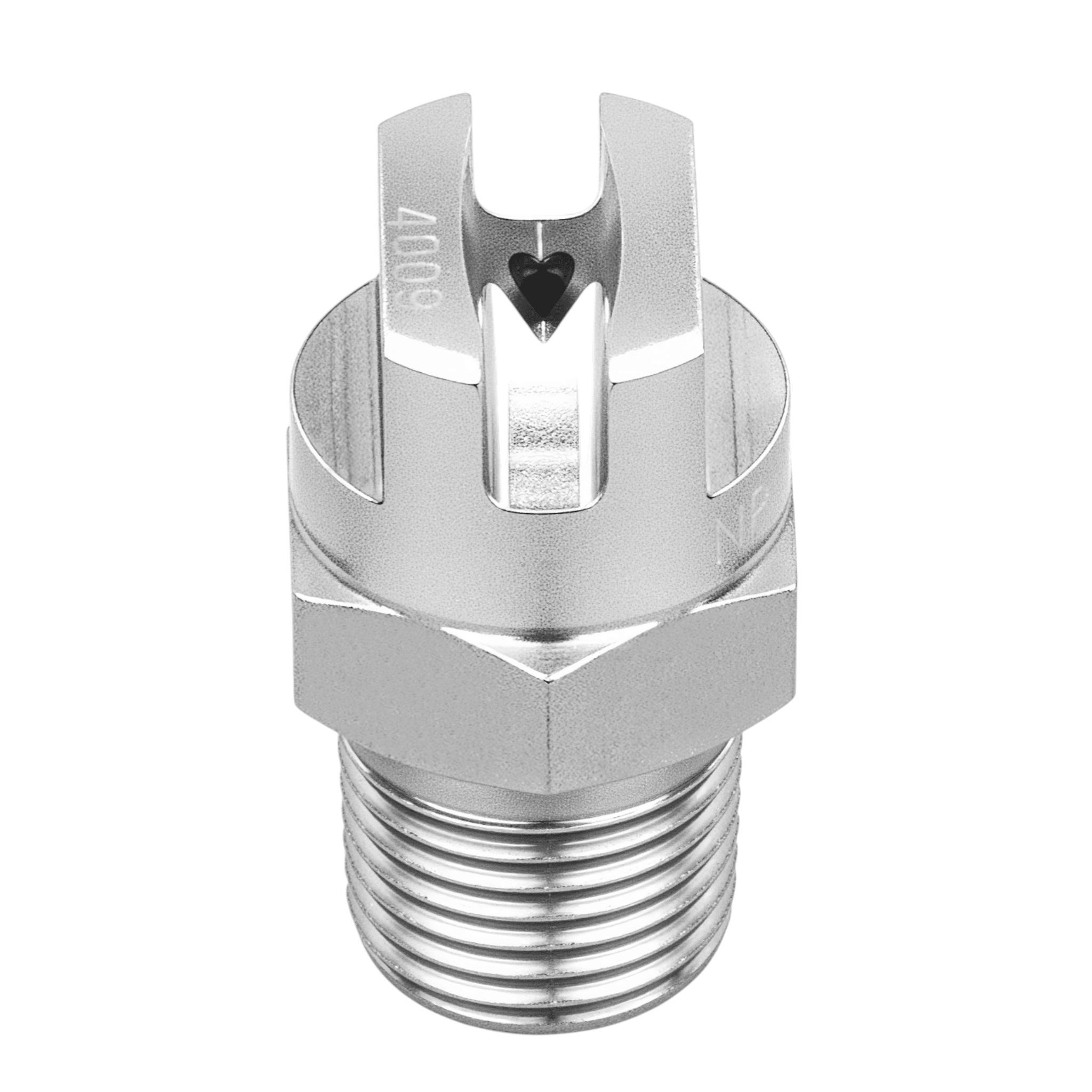

NPHV-6504-1/8-SS – Flat Nozzle, 1/8 Inlet, 303/304 Stainless Steel
Images are representative. Products may differ in material or configuration.
Images are representative. Products may differ in material or configuration.
Product Parameters
| Product Family | Flat |
|---|---|
| Product Series | NPHV |
| Capacity Size | 4 |
| Inlet Connection Thread Type | NPT |
| Material Composition Filter | 303/304 stainless steel |
| Inlet Connection Size (in.) | 1/8 |
| Length (mm) | 22 |
| Length (in) | 0.875 |
| Hex Size (mm) | 12.7 |
| Hex Size (in) | 1/2 |
| Equivalent Orifice Diameter (in) | 0.05 |
| Spray Angle at Rated Pressure (PSI) | 65 |
| Equivalent Orifice Diameter (mm) | 1.3 |
Description
Product Overview
During dust & pollution control on a steel & metals site, production technicians trust the NPHV-6504-1/8-SS to deliver a consistent flat spray that covers targeted areas evenly. Made from 303/304 stainless steel, this nozzle withstands corrosive environments encountered during ongoing operations. Operators install the nozzle with its 1/8 inlet connection, ensuring secure fitting and minimal downtime. The uniform spray pattern contributes to effective particulate suppression and equipment longevity by reducing residue buildup.
Applications
The NPHV-6504-1/8-SS is frequently used in cleaning & washing processes where precise fluid distribution improves surface preparation and maintenance. Its reliable spray characteristics also support cooling & quenching tasks, helping to regulate temperatures in heat-sensitive workflows.
Industries
Automotive assembly lines, food & beverage processing plants, and mining operations rely on this nozzle for consistent performance in harsh conditions. Additionally, sectors such as building materials, Energy, and breweries & wineries benefit from its corrosion resistance and predictable spray profile, which enhance operational efficiency and environmental compliance.
