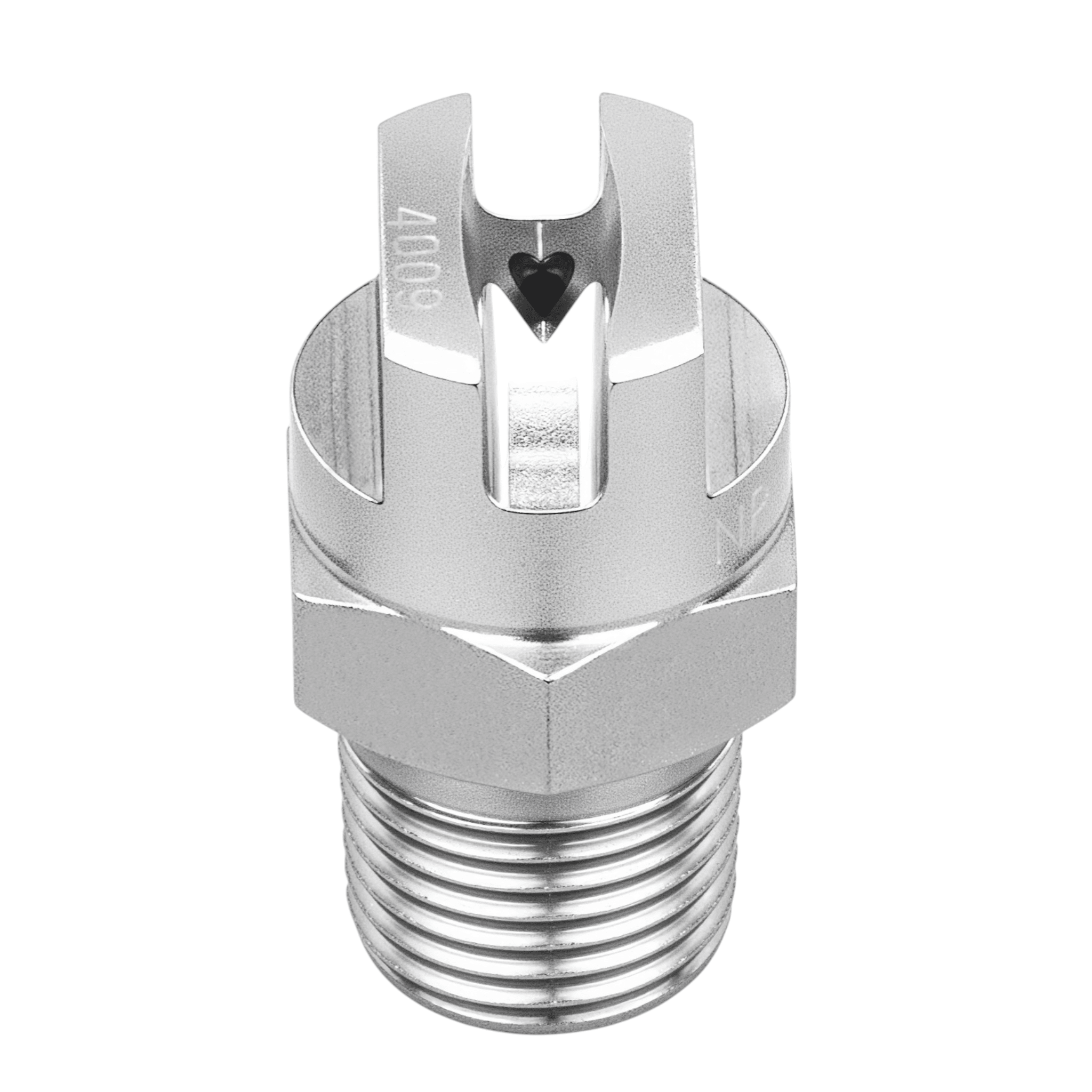

NPHV-4009-1/4-SS β Flat Nozzle, 1/4 Inlet, 303/304 stainless steel
Images are representative. Products may differ in material or configuration.
Images are representative. Products may differ in material or configuration.
Product Parameters
| Product Family | Flat |
|---|---|
| Product Series | NPHV |
| Spray Pattern Type | FLAT |
| Capacity Size | 09 |
| Inlet Connection Thread Type | NPT |
| Inlet Connection Gender | MALE (M) |
| Material Composition Filter | 303/304 stainless steel |
| Inlet Connection Size (in.) | 1/4 |
| Length (mm) | 23 |
| Hex Size (mm) | 14.3 |
| Spray Angle at Rated Pressure (PSI) | 40 |
| Equivalent Orifice Diameter (mm) | 1.9 |
Description
Product Overview
When mining crews manage cooling & quenching, the NPHV-4009-1/4-SS lets each utilities coordinator deliver precise fluid distribution under harsh conditions. Constructed from corrosion-resistant 303/304 stainless steel, this nozzle maintains consistent performance despite abrasive materials and fluctuating temperatures. The flat spray pattern ensures even coverage, reducing hot spots and wear in heat-sensitive zones. Operators rely on the NPHV-4009-1/4-SS to optimize cooling cycles and extend equipment service intervals.
Applications
In cleaning & washing processes, the uniform spray pattern of the nozzle effectively removes contaminants without excess water usage, improving downstream drying and handling. For dust & pollution control, the controlled flat spray minimizes airborne particulates, supporting safer work environments and regulatory compliance.
