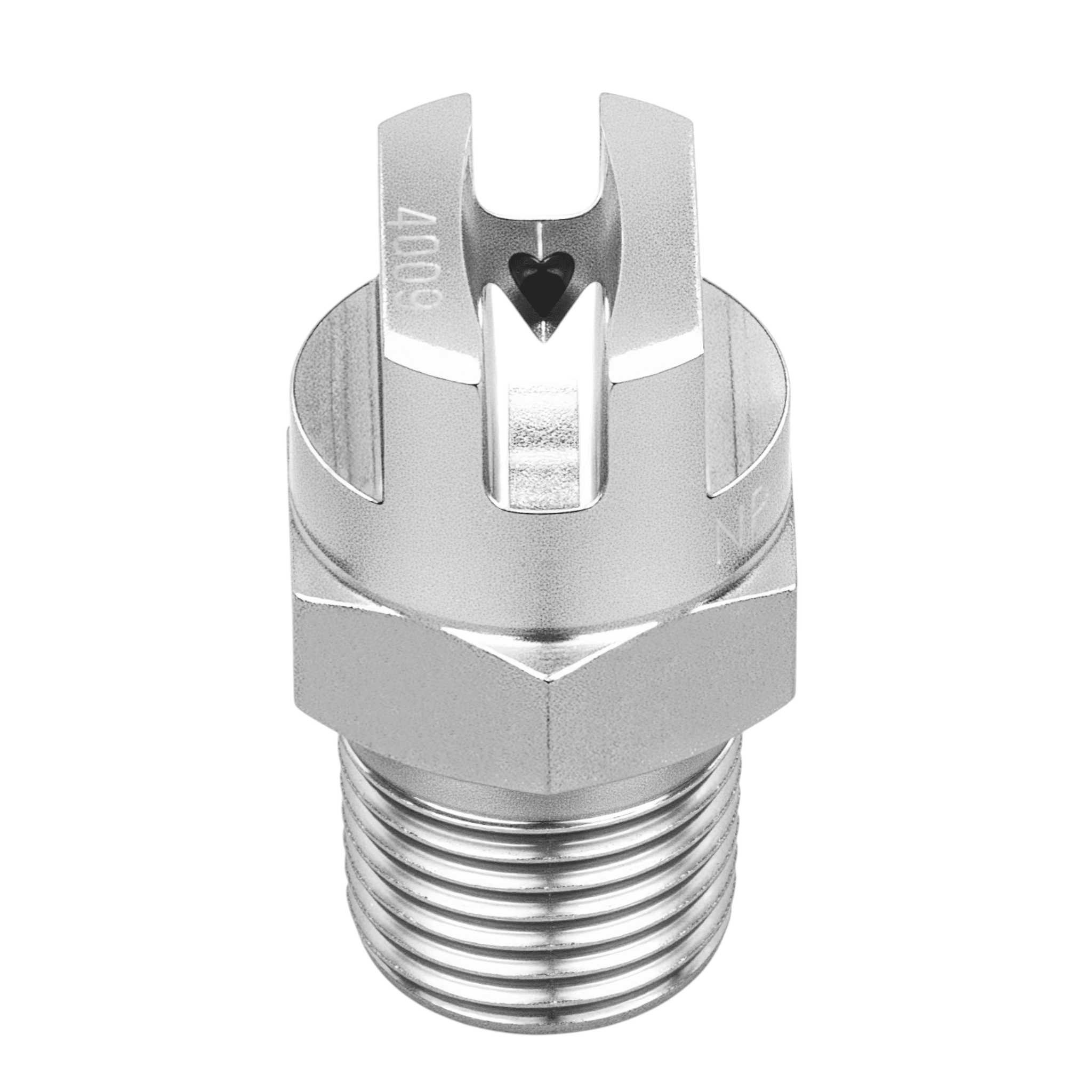

NPHV-40015-1/4-316 – Flat Nozzle, 1/4 Inlet, 316L Stainless Steel
Images are representative. Products may differ in material or configuration.
Images are representative. Products may differ in material or configuration.
Product Parameters
| Product Family | Flat |
|---|---|
| Product Series | NPHV |
| Capacity Size | 15 |
| Inlet Connection Thread Type | NPT |
| Material Composition Filter | 316L stainless steel |
| Inlet Connection Size (in.) | 1/4 |
| Length (mm) | 23 |
| Length (in) | 0.906 |
| Hex Size (mm) | 14.3 |
| Hex Size (in) | 9/16 |
| Equivalent Orifice Diameter (in) | 0.094 |
| Spray Angle at Rated Pressure (PSI) | 40 |
| Equivalent Orifice Diameter (mm) | 0.81 |
Description
Product Overview
A plant operator in the engineered wood facility uses the NPHV-40015-1/4-316 during specialty applications to ensure a consistent flat spray that enhances surface treatment uniformity. Constructed from 316L stainless steel, the nozzle resists corrosion in harsh production environments, maintaining reliability over extended use. The operator connects the 1/4-inch inlet to the existing fluid delivery system, achieving precise coverage that reduces material waste and improves process consistency.
Applications
This nozzle is frequently employed in cleaning & washing processes where uniform spray distribution is critical for removing residues without damaging sensitive surfaces. Additionally, it supports cooling & quenching operations by delivering an even spray pattern that controls temperature gradients, minimizing thermal stress on components.
Industries
Sectors such as automotive, food & beverage, and steel & metals favor the NPHV-40015-1/4-316 for its durability and consistent spray characteristics under demanding conditions. The nozzle's corrosion resistance and precise flow control address the varied needs of manufacturing & assembly, cement, and mining industries where fluid application quality directly impacts operational efficiency.
