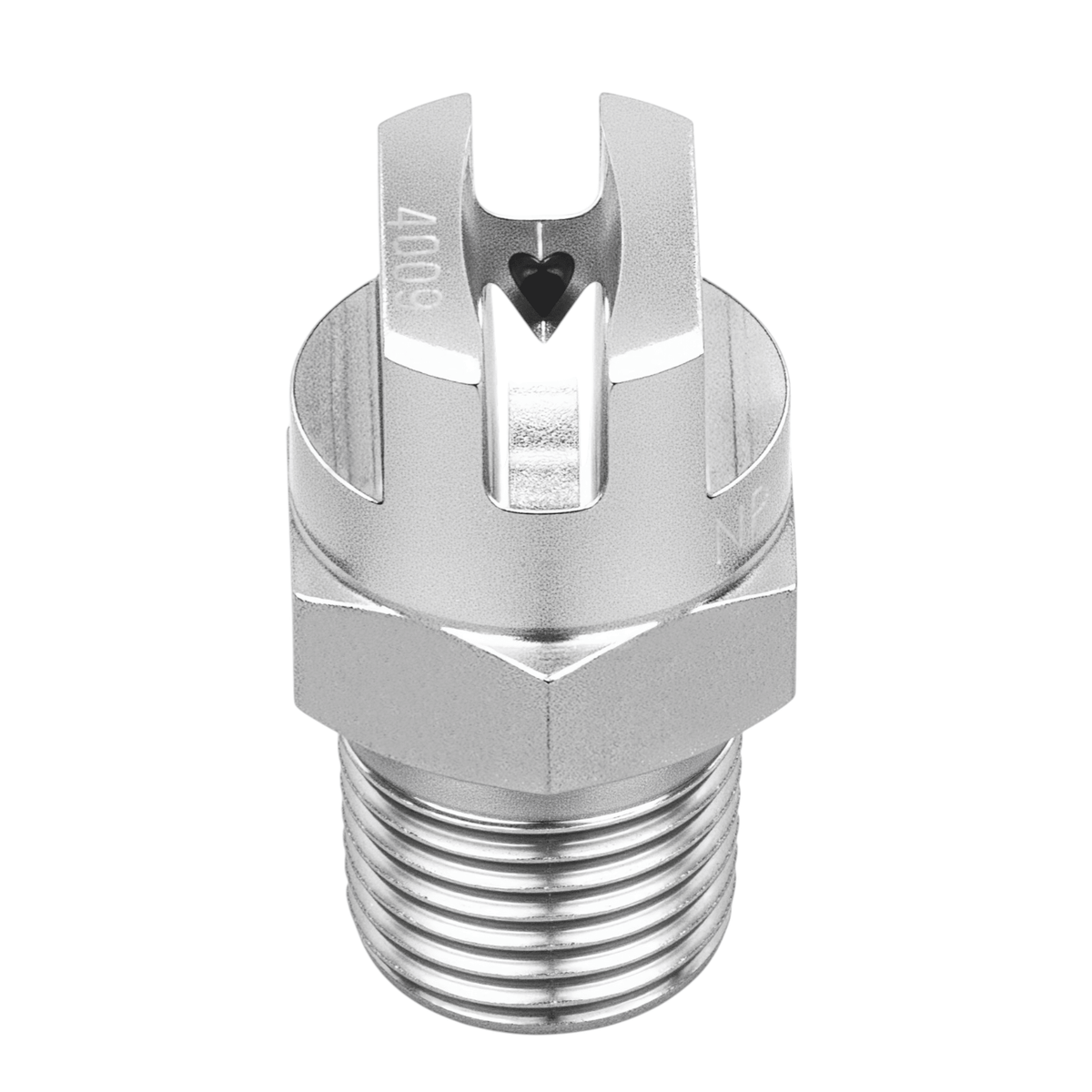

NPHV-11005-1/8-SS β Flat Nozzle, 1/8 Inlet, 303/304 Stainless Steel
Images are representative. Products may differ in material or configuration.
Images are representative. Products may differ in material or configuration.
Product Parameters
| Product Family | Flat |
|---|---|
| Product Series | NPHV |
| Capacity Size | 5 |
| Inlet Connection Thread Type | NPT |
| Material Composition Filter | 303/304 stainless steel |
| Inlet Connection Size (in.) | 1/8 |
| Length (mm) | 22 |
| Length (in) | 0.875 |
| Hex Size (mm) | 12.7 |
| Hex Size (in) | 1/2 |
| Equivalent Orifice Diameter (in) | 0.056 |
| Spray Angle at Rated Pressure (PSI) | 110 |
| Equivalent Orifice Diameter (mm) | 1.4 |
Description
Product Overview
When building materials crews manage cooling & quenching, the NPHV-11005-1/8-SS lets each utilities coordinator deliver consistent fluid coverage critical to maintaining proper material temperature. The nozzle, constructed from 303/304 stainless steel, attaches seamlessly via its 1/8-inch inlet to existing piping. Its precision flat spray pattern ensures uniform distribution, reducing hotspots and improving thermal control. Operators benefit from corrosion resistance that extends service life in harsh industrial environments, minimizing downtime.
Applications
The NPHV-11005-1/8-SS is well-suited for cleaning & washing tasks where controlled spray angles help remove contaminants without damaging surfaces. In cooling & quenching scenarios, its uniform flat spray allows for precise temperature regulation, which supports process stability and product integrity.
Industries
This nozzle is favored in industries such as automotive, mining, and food & beverage due to its durability and consistent spray performance. Sectors including steel & metals, cement, and breweries & wineries rely on its corrosion resistance and precise fluid control to meet demanding operational standards.
