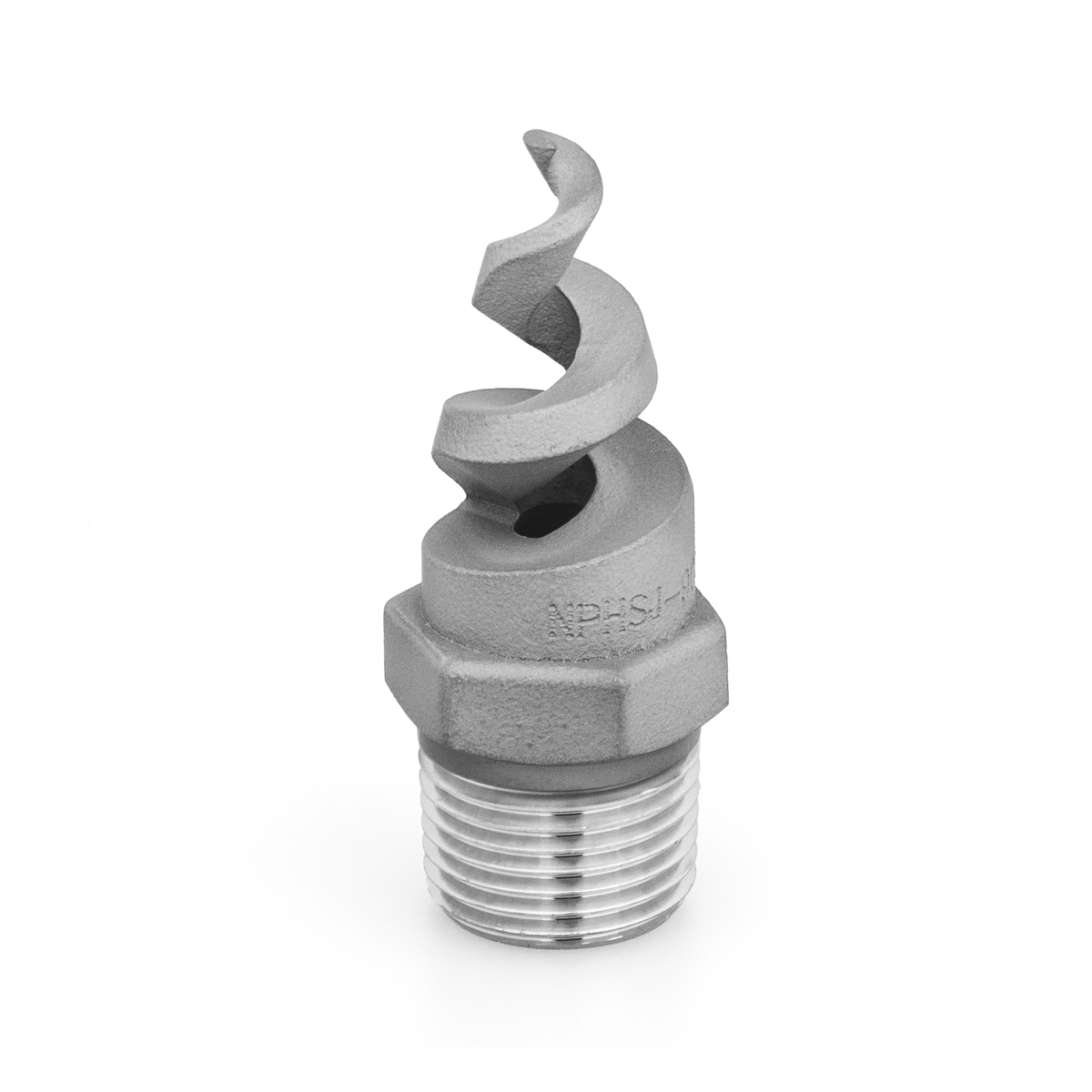

NPHSJ-90960-1-1/2-316 – Full Cone, Spiral Nozzle, 1-1/2 Inlet, 316L Stainless Steel
Images are representative. Products may differ in material or configuration.
Images are representative. Products may differ in material or configuration.
Product Parameters
| Product Family | Full Cone Spiral |
|---|---|
| Product Series | NPHSJ |
| Capacity Size | 960 |
| Inlet Connection Thread Type | NPT |
| Material Composition Filter | 316L stainless steel |
| Orifice Diameter. Nom. (mm) | 28.6 |
| Orifice Diameter. Nom. (in) | 1.125 |
| Inlet Connection Size (in.) | 1-1/2 |
| Length (mm) | 171 |
| Length (in) | 4.375 |
| Hex Size (mm) | 50.8 |
| Hex Size (in) | 2 |
| Spray Angle at Rated Pressure (PSI) | 90 |
| Max. Free Passage Dia. (mm) | 7.9 |
Description
Product Overview
When breweries & wineries crews manage car wash operations, the NPHSJ-90960-1-1/2-316 lets each quality manager ensure consistent spray coverage that maintains cleanliness without damaging equipment. Constructed from 316L stainless steel, this spiral full cone nozzle resists corrosion even under harsh chemical exposure. Operators install the nozzle with a 1-1/2 inch inlet for seamless integration into existing piping, resulting in uniform droplet distribution that supports process reliability and reduces maintenance intervals.
Applications
In cleaning & washing processes, the nozzle delivers a controlled full cone spray that removes residues efficiently, improving overall hygiene standards. Additionally, its use in cooling & quenching stabilizes material temperatures quickly, minimizing thermal stress and enhancing downstream product quality.
Industries
Sectors such as building materials, chemical processing, and steel & metals rely on this nozzle for its durability and spray uniformity under challenging conditions. Energy, mining, and manufacturing & assembly operations also benefit from its corrosion resistance and consistent performance, which help maintain process stability across varied industrial environments.
