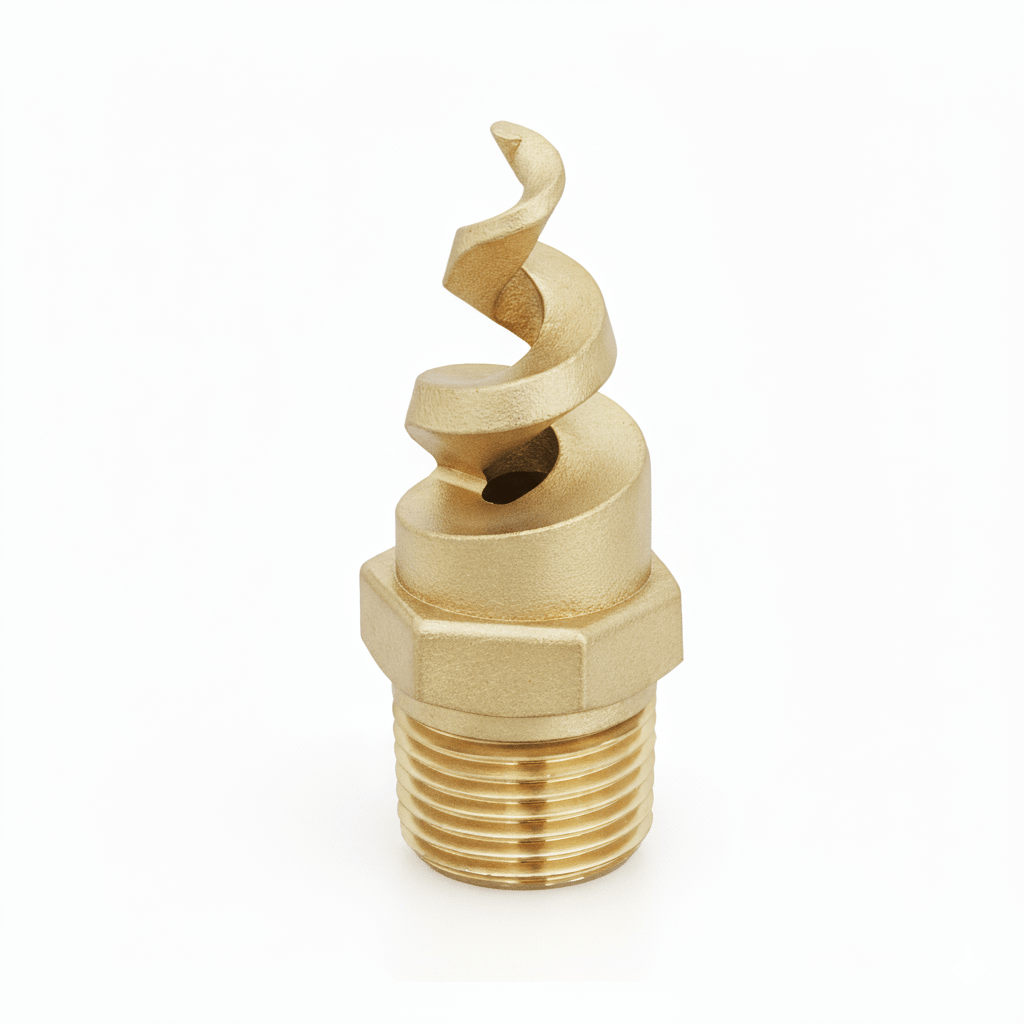

NPHSJ-9020-1/4 – Full Cone, Spiral Nozzle, 1/4 Inlet, Brass
Images are representative. Products may differ in material or configuration.
Images are representative. Products may differ in material or configuration.
Product Parameters
| Product Family | Full Cone Spiral |
|---|---|
| Product Series | NPHSJ |
| Capacity Size | 20 |
| Inlet Connection Thread Type | NPT |
| Material Composition Filter | Brass |
| Orifice Diameter. Nom. (mm) | 4.0 |
| Orifice Diameter. Nom. (in) | 0.156 |
| Inlet Connection Size (in.) | 1/4 |
| Length (mm) | 53.9 |
| Length (in) | 1.875 |
| Hex Size (mm) | 14.3 |
| Hex Size (in) | 9/16 |
| Spray Angle at Rated Pressure (PSI) | 90 |
| Max. Free Passage Dia. (mm) | 3.2 |
Description
Product Overview
When mining crews manage cooling & quenching, the NPHSJ-9020-1/4 lets each plant operator precisely control spray distribution with a full cone, spiral pattern. Constructed from corrosion-resistant brass and equipped with a 1/4-inch inlet, this nozzle delivers consistent coverage essential for temperature regulation and equipment longevity. Operators rely on its uniform spray to reduce hotspots and maintain process stability during high-demand operations. The robust design helps minimize maintenance intervals while sustaining performance under harsh industrial conditions.
Applications
In cleaning & washing processes, the NPHSJ-9020-1/4 ensures thorough surface coverage that improves residue removal without excessive water use. Its consistent spray pattern also supports dust & pollution control efforts by effectively capturing airborne particulates, reducing environmental impact and enhancing workplace safety.
Industries
This nozzle is commonly utilized in building materials, chemical processing, and Energy sectors due to its durability and precise spray control. Mining, steel & metals, breweries & wineries, cement, dairy, and manufacturing & assembly operations also benefit from its ability to deliver reliable, corrosion-resistant performance in demanding environments.
