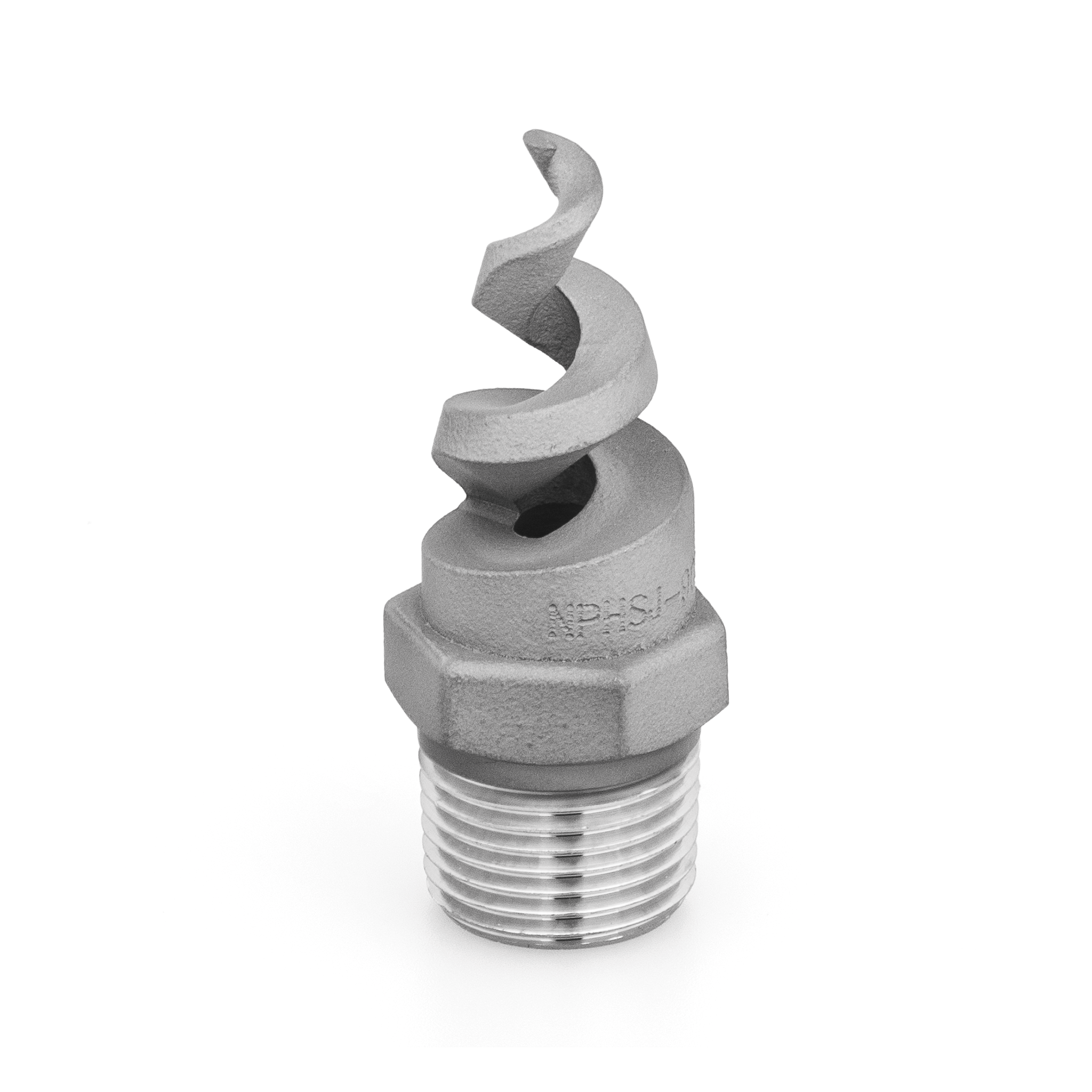

NPHSJ-9020-1/4-316 – Full Cone, Spiral Nozzle, 1/4 Inlet, 316L Stainless Steel
Images are representative. Products may differ in material or configuration.
Images are representative. Products may differ in material or configuration.
Product Parameters
| Product Family | Full Cone Spiral |
|---|---|
| Product Series | NPHSJ |
| Capacity Size | 20 |
| Inlet Connection Thread Type | NPT |
| Material Composition Filter | 316L stainless steel |
| Orifice Diameter. Nom. (mm) | 4.0 |
| Orifice Diameter. Nom. (in) | 0.156 |
| Inlet Connection Size (in.) | 1/4 |
| Length (mm) | 53.9 |
| Length (in) | 1.875 |
| Hex Size (mm) | 14.3 |
| Hex Size (in) | 9/16 |
| Spray Angle at Rated Pressure (PSI) | 90 |
| Max. Free Passage Dia. (mm) | 3.2 |
Description
Product Overview
When breweries & wineries crews manage cleaning & washing, the NPHSJ-9020-1/4-316 lets each maintenance supervisor achieve consistent coverage through its precision full cone, spiral spray pattern. Constructed from 316L stainless steel, this nozzle resists corrosion in harsh washdown environments, extending operational uptime. Operators install the NPHSJ-9020-1/4-316 on a 1/4 inch inlet line to deliver uniform fluid distribution, optimizing cleaning cycles and minimizing water use. The reliable spray quality supports process standards by ensuring thorough surface contact and residue removal.
Applications
The NPHSJ-9020-1/4-316 is effective in cleaning & washing routines where consistent spray patterns improve contaminant removal and reduce downtime. Its ability to maintain performance under variable pressures also makes it valuable for cooling & quenching operations, helping to control thermal conditions precisely.
Industries
This nozzle is favored across sectors such as building materials, chemical processing, and mining due to its corrosion resistance and spray uniformity. Energy, steel & metals, and manufacturing & assembly industries also rely on it for tasks requiring durable components capable of withstanding demanding industrial environments.
