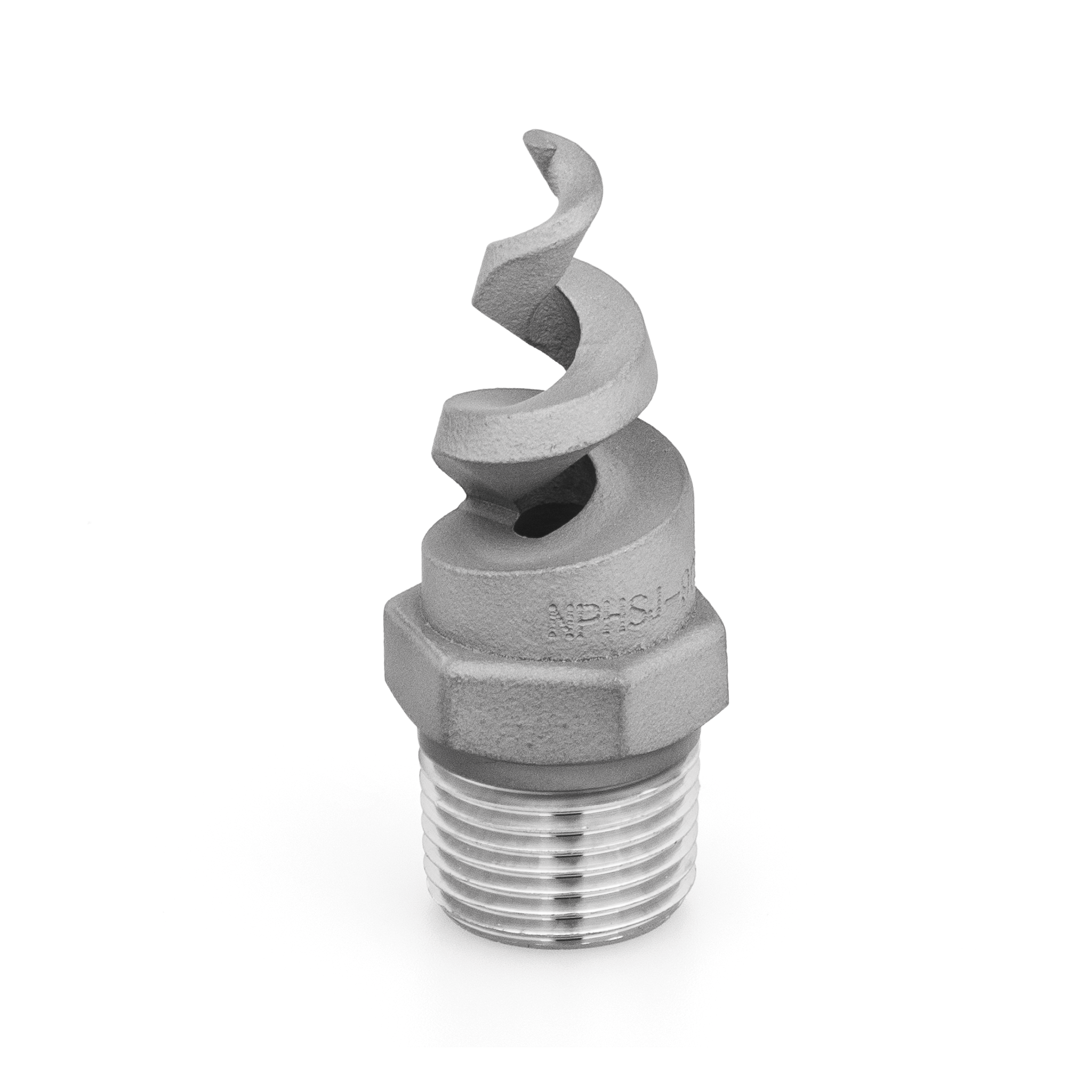

NPHSJ-15030-3/8-316 – Full Cone, Spiral Nozzle, 3/8 Inlet, 316L Stainless Steel
Images are representative. Products may differ in material or configuration.
Images are representative. Products may differ in material or configuration.
Product Parameters
| Product Family | Full Cone Spiral |
|---|---|
| Product Series | NPHSJ |
| Capacity Size | 30 |
| Inlet Connection Thread Type | NPT |
| Material Composition Filter | 316L stainless steel |
| Orifice Diameter. Nom. (mm) | 4.8 |
| Orifice Diameter. Nom. (in) | 0.188 |
| Inlet Connection Size (in.) | 3/8 |
| Length (mm) | 60.3 |
| Length (in) | 1.875 |
| Hex Size (mm) | 17.5 |
| Hex Size (in) | 11/16 |
| Spray Angle at Rated Pressure (PSI) | 150 |
| Max. Free Passage Dia. (mm) | 3.2 |
Description
Product Overview
Inside the building materials line's fire protection & safety stage, a quality manager relies on the NPHSJ-15030-3/8-316 to deliver consistent spray coverage critical for reliable system performance. Constructed from 316L stainless steel, this spiral full cone nozzle resists corrosion from harsh chemicals and environmental conditions commonly encountered on-site. Its 3/8-inch inlet size allows for easy integration into existing piping systems while maintaining uniform droplet distribution. Operators monitor flow rates and spray angles to ensure proper coverage, extending equipment lifespan and enhancing safety standards.
Applications
In cleaning & washing processes, the nozzle's uniform spray pattern enables thorough removal of residues, improving operational cleanliness and reducing downtime. Additionally, its role in dust & pollution control helps minimize airborne particles, contributing to safer working conditions and compliance with environmental regulations.
Industries
The nozzle is preferred in industries such as building materials, chemical processing, mining, and steel & metals due to its durability and resistance to corrosive substances. Breweries & wineries, cement, dairy, and manufacturing & assembly sectors also benefit from its reliable performance in applications requiring precise fluid distribution under demanding conditions.
