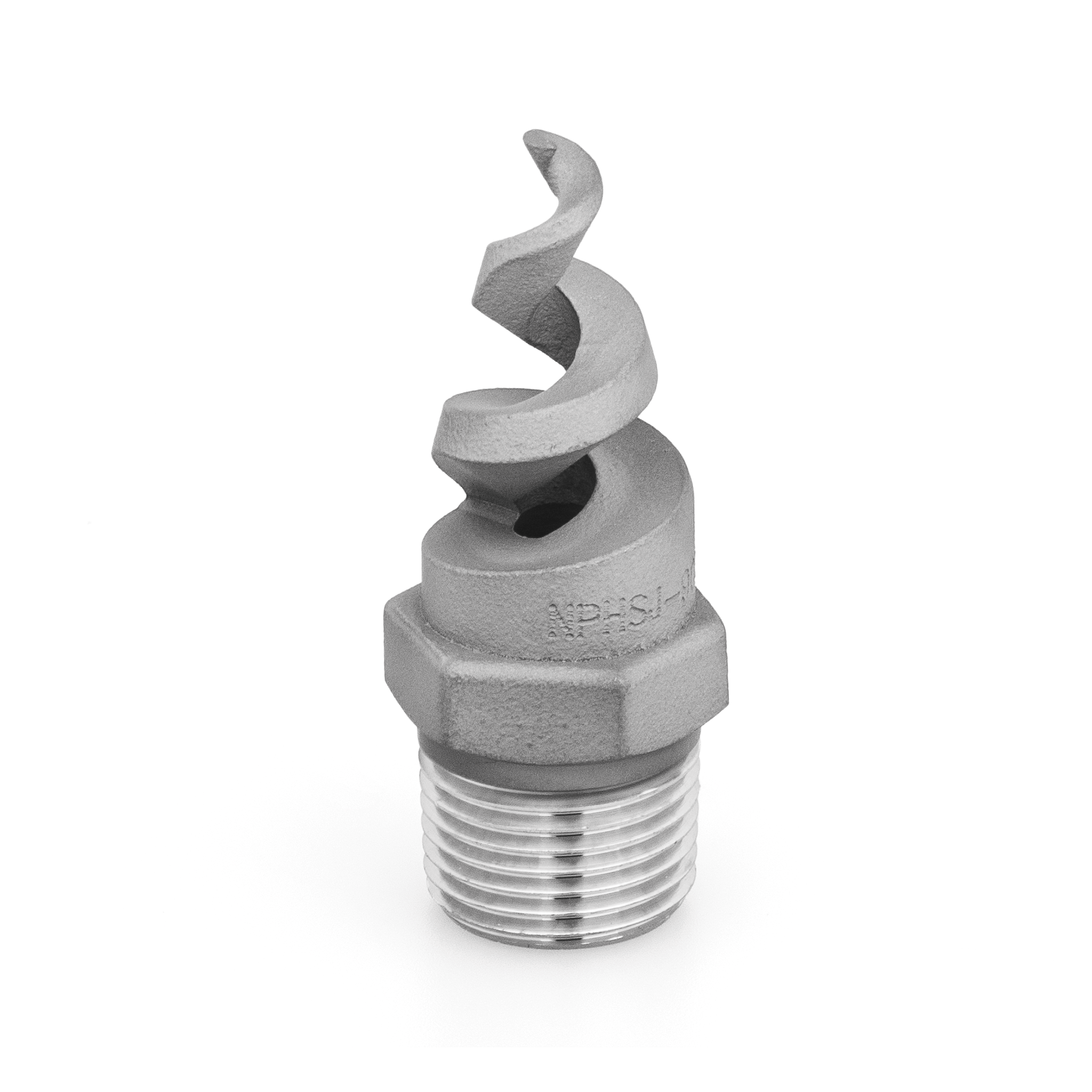

NPHSJ-15020-1/4-316 β Full Cone, Spiral Nozzle, 1/4 Inlet, 316L Stainless Steel
Images are representative. Products may differ in material or configuration.
Images are representative. Products may differ in material or configuration.
Product Parameters
| Product Family | Full Cone Spiral |
|---|---|
| Product Series | NPHSJ |
| Capacity Size | 20 |
| Inlet Connection Thread Type | NPT |
| Material Composition Filter | 316L stainless steel |
| Orifice Diameter. Nom. (mm) | 4.0 |
| Orifice Diameter. Nom. (in) | 0.156 |
| Inlet Connection Size (in.) | 1/4 |
| Length (mm) | 53.9 |
| Length (in) | 1.875 |
| Hex Size (mm) | 14.3 |
| Hex Size (in) | 9/16 |
| Spray Angle at Rated Pressure (PSI) | 150 |
| Max. Free Passage Dia. (mm) | 3.2 |
Description
Product Overview
During cooling & quenching on a mining site, production technicians trust the NPHSJ-15020-1/4-316 to deliver consistent and reliable performance. Constructed from 316L stainless steel, this spiral nozzle produces a full cone spray pattern that ensures even coverage across metal surfaces. Operators rely on its corrosion resistance to maintain flow stability in harsh environments, reducing downtime and improving cycle times. The precision design of the NPHSJ-15020-1/4-316 contributes to accurate fluid distribution, which is critical for process control.
Applications
In cleaning & washing operations, this nozzle provides uniform spray distribution that enhances contaminant removal while minimizing water usage. Its role in dust & pollution control helps maintain regulatory compliance by effectively suppressing airborne particulates in industrial settings.
Industries
Sectors such as building materials, chemical processing, and mining utilize this nozzle because of its durability and consistent spray performance under demanding conditions. Additionally, Energy, steel & metals, and manufacturing & assembly operations benefit from the NPHSJ-15020-1/4-316's ability to resist corrosion and support continuous process efficiency.
