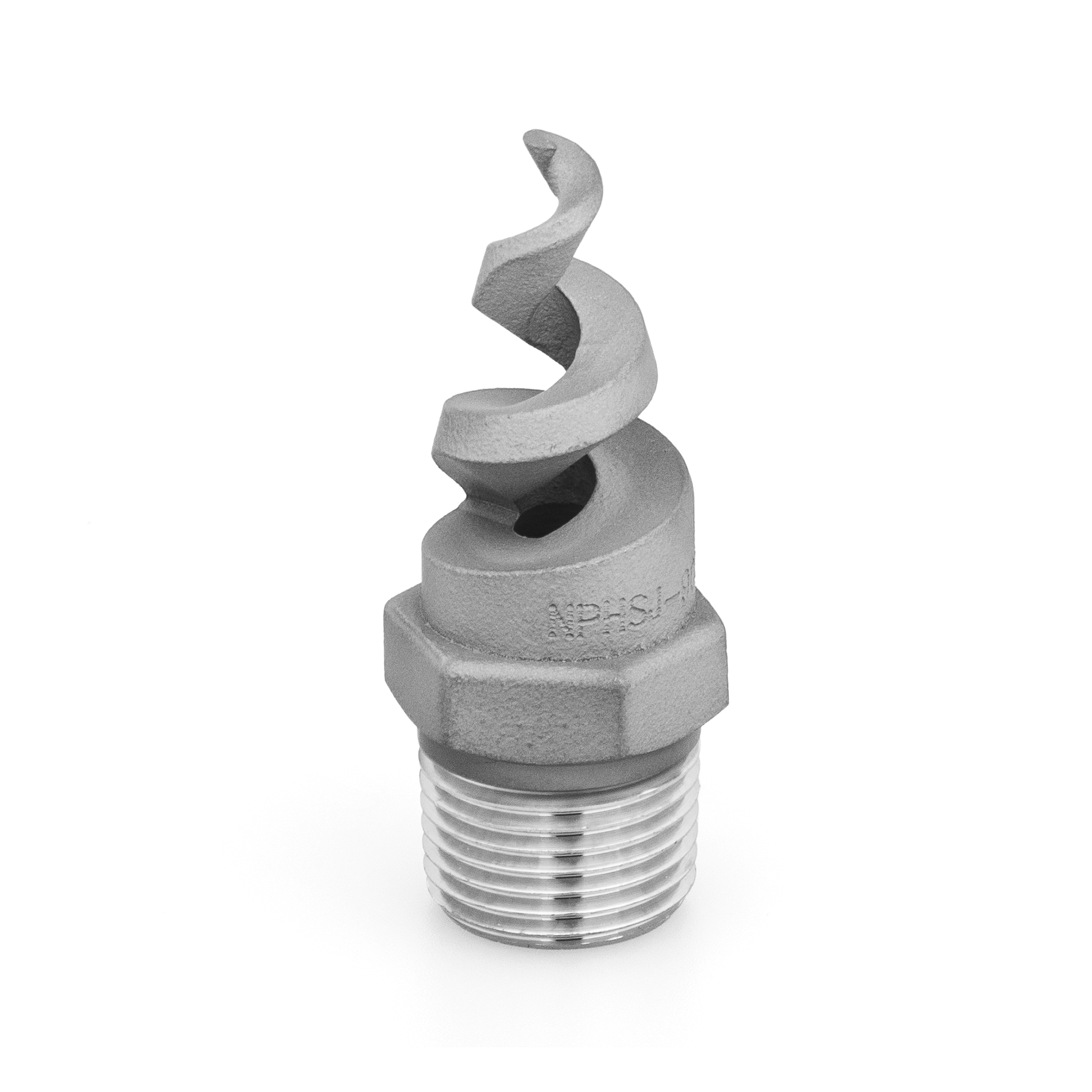

NPHSJ-12013-1/4-316 – Full Cone, Spiral Nozzle, 1/4 Inlet, 316L Stainless Steel
Images are representative. Products may differ in material or configuration.
Images are representative. Products may differ in material or configuration.
Product Parameters
| Product Family | Full Cone Spiral |
|---|---|
| Product Series | NPHSJ |
| Capacity Size | 13 |
| Inlet Connection Thread Type | NPT |
| Material Composition Filter | 316L stainless steel |
| Orifice Diameter. Nom. (mm) | 3.2 |
| Orifice Diameter. Nom. (in) | 0.125 |
| Inlet Connection Size (in.) | 1/4 |
| Length (mm) | 53.9 |
| Length (in) | 1.875 |
| Hex Size (mm) | 14.3 |
| Hex Size (in) | 9/16 |
| Spray Angle at Rated Pressure (PSI) | 120 |
| Max. Free Passage Dia. (mm) | 3.2 |
Description
Product Overview
When steel & metals crews manage trucking & fleet wash, the NPHSJ-12013-1/4-316 lets each process engineer achieve consistent coverage through its full cone, spiral spray pattern. Constructed from 316L stainless steel, this nozzle resists corrosion and maintains performance in harsh environments. Operators rely on its 1/4-inch inlet size for straightforward installation and integration into existing systems, ensuring uniform spray distribution that optimizes fluid usage and cleaning efficiency. The precision design of the NPHSJ-12013-1/4-316 supports reliable operation under continuous demand.
Applications
In cleaning & washing operations, this nozzle delivers even fluid application to maximize contaminant removal without excessive overspray. Its performance in dust & pollution control helps reduce airborne particulates by providing consistent atomization and coverage, contributing to safer and cleaner work environments.
Industries
Sectors such as building materials, chemical processing, and manufacturing & assembly select this nozzle for its durability and spray consistency under rigorous conditions. Additionally, Energy, mining, and breweries & wineries benefit from its corrosion resistance and adaptability to diverse fluids, which supports ongoing process integrity.
