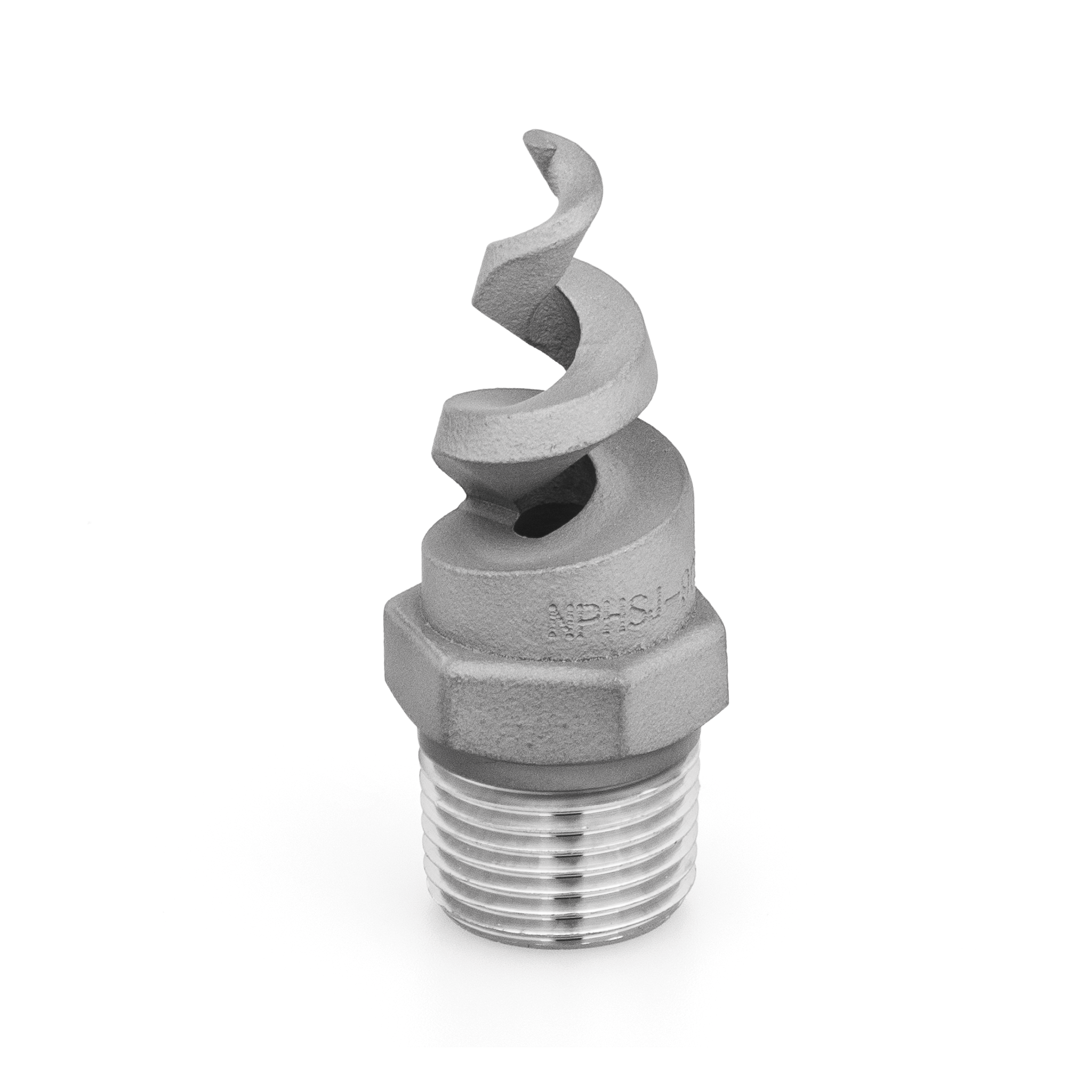

NPHSJ-90470-1-316 – Full Cone, Spiral Nozzle, 1 Inlet, 316L Stainless Steel
Images are representative. Products may differ in material or configuration.
Images are representative. Products may differ in material or configuration.
Product Parameters
| Product Family | Full Cone Spiral |
|---|---|
| Product Series | NPHSJ |
| Capacity Size | 470 |
| Inlet Connection Thread Type | NPT |
| Material Composition Filter | 316L stainless steel |
| Orifice Diameter. Nom. (mm) | 19.1 |
| Orifice Diameter. Nom. (in) | 0.75 |
| Inlet Connection Size (in.) | 1 |
| Length (mm) | 116 |
| Length (in) | 3.625 |
| Hex Size (mm) | 34.9 |
| Hex Size (in) | 1-3/8 |
| Spray Angle at Rated Pressure (PSI) | 90 |
| Max. Free Passage Dia. (mm) | 6.4 |
Description
Product Overview
Inside the chemical processing line's fire protection & safety stage, a utilities coordinator relies on the NPHSJ-90470-1-316 to deliver consistent and reliable spray coverage. Constructed from 316L stainless steel, this nozzle withstands corrosive environments commonly found in industrial settings. Its precision full cone, spiral design ensures a uniform distribution of liquid, which helps maintain system integrity and operational safety. The coordinator monitors spray patterns to verify performance and reduce potential hotspots that could compromise fire suppression efforts.
Applications
The nozzle's uniform spray pattern is critical in cleaning & washing processes, where thorough coverage is required to remove residues without damaging equipment surfaces. Additionally, its role in dust & pollution control helps minimize airborne particulates, thereby supporting environmental compliance and worker safety downstream.
Industries
Sectors such as building materials, chemical processing, and steel & metals favor the NPHSJ-90470-1-316 for its corrosion resistance and consistent spray characteristics. Breweries & wineries and dairy operations also benefit from its ability to maintain cleanliness standards, while manufacturing & assembly plants integrate it to meet diverse operational demands.
