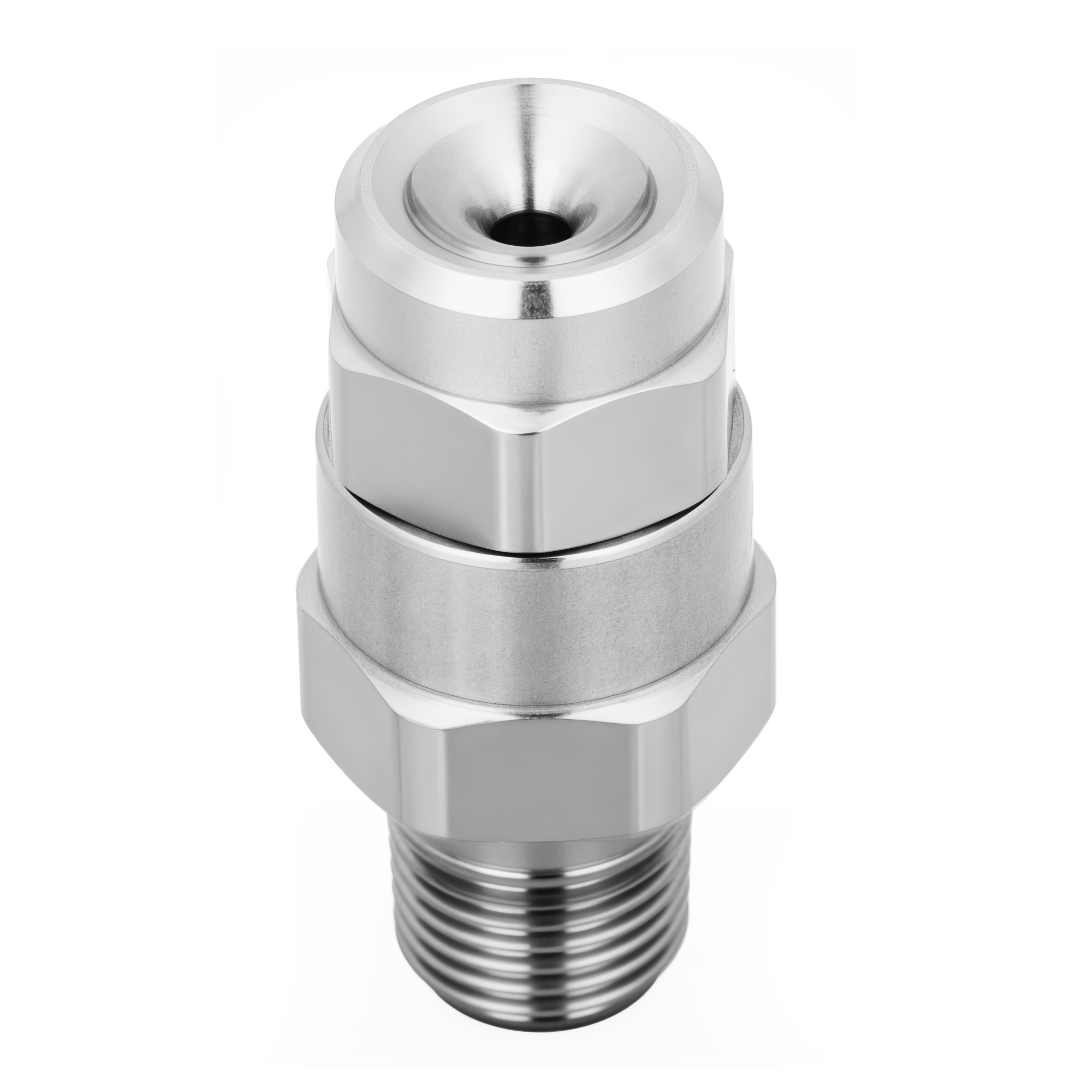

NPGG-45W-1/2-SS – Full Cone Nozzle, 1/2 Inlet, 303/304 Stainless Steel
Images are representative. Products may differ in material or configuration.
Images are representative. Products may differ in material or configuration.
Product Parameters
| Product Family | Full Cone |
|---|---|
| Product Series | NPGG |
| Capacity Size | 45W |
| Inlet Connection Thread Type | NPT |
| Inlet Connection Gender | MALE (M) |
| Material Composition Filter | 303/304 stainless steel |
| Orifice Diameter. Nom. (mm) | 6.4 |
| Inlet Connection Size (in.) | 1/2 |
| Length (mm) | 56.5 |
| Length (in) | 2.219 |
| Hex Size (mm) | 25.4 |
| Hex Size (in) | 1 |
| Equivalent Orifice Diameter (in) | 0.250 |
| Max. Free Passage Dia. (mm) | 3.6 |
Description
Product Overview
Inside the Energy line's cooling & quenching stage, a utilities coordinator relies on the NPGG-45W-1/2-SS to deliver consistent full cone spray coverage that ensures even temperature control across metal components. Constructed from 303/304 stainless steel, this nozzle withstands corrosive environments while maintaining stable flow rates through its 1/2-inch inlet. Operators observe uniform droplet distribution that minimizes thermal gradients, supporting process reliability and reducing material stresses during quenching cycles.
Applications
This nozzle plays a critical role in cleaning & washing processes by providing a uniform spray pattern that enhances debris removal without damaging sensitive surfaces. Additionally, its use in cooling & quenching applications helps maintain precise temperature profiles, which are essential for material properties and downstream processing consistency.
Industries
Sectors such as automotive, building materials, and steel & metals depend on the nozzle's corrosion resistance and uniform spray for manufacturing and assembly operations. Energy, mining, and cement industries also benefit from its durability under harsh conditions and its ability to support specialized surface treatment and coating applications.
