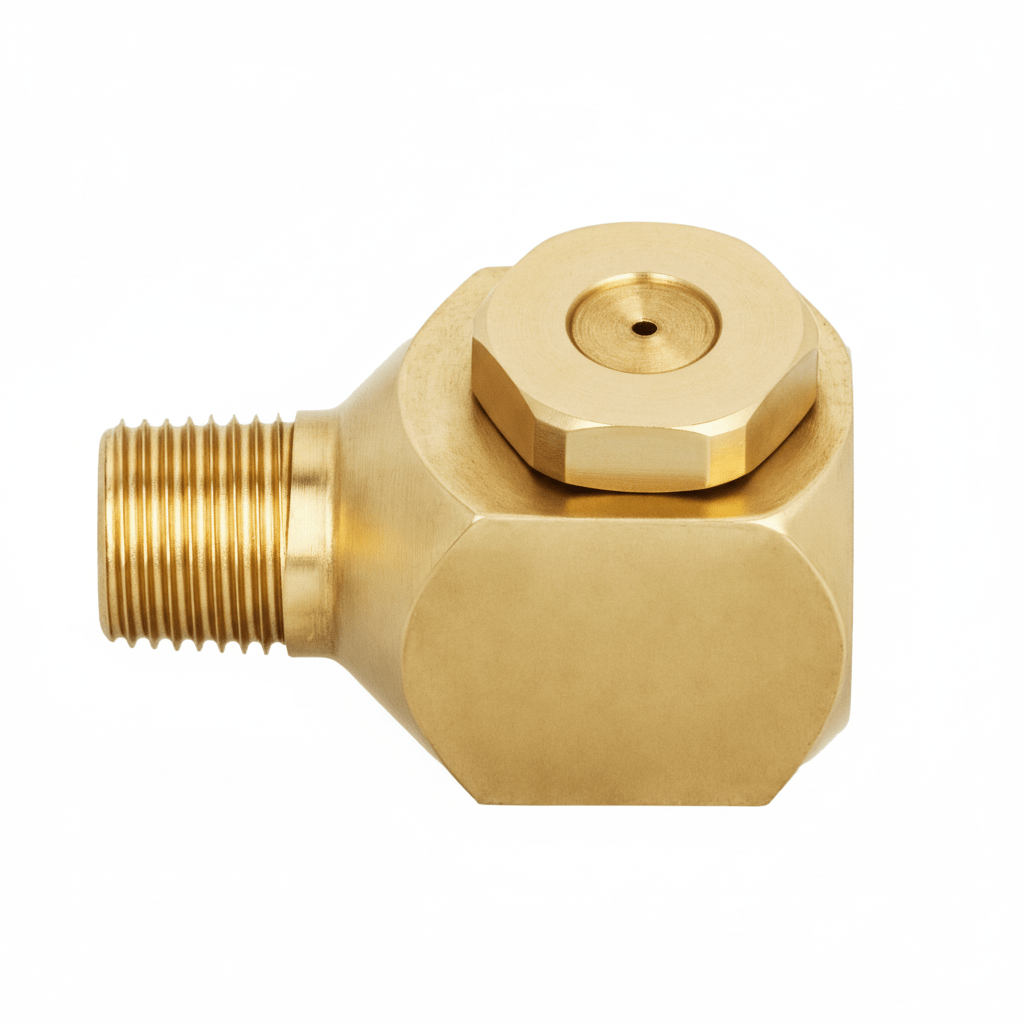

NPBX-5-5W-1/8 – Hollow Cone Nozzle, 1/8 Inlet, Brass
Images are representative. Products may differ in material or configuration.
Images are representative. Products may differ in material or configuration.
Product Parameters
| Product Family | Hollow Cone |
|---|---|
| Product Series | NPBX |
| Capacity Size | 5-5W |
| Inlet Connection Thread Type | NPT |
| Inlet Connection Gender | MALE (M) |
| Material Composition Filter | Brass |
| Orifice Diameter. Nom. (mm) | 3.2 |
| Orifice Diameter. Nom. (in) | 0.125 |
| Inlet Connection Size (in.) | 1/8 |
| Length (mm) | 30.5 |
| Length (in) | 1.188 |
| Inlet Dia. Nom. (in) | 0.125 |
| Max. Free Passage Dia. (mm) | 3.2 |
Description
Product Overview
During specialty applications on a steel & metals site, process engineers trust the NPBX-5-5W-1/8 to deliver consistent coverage and reliable operation. Made from brass, the nozzle's 1/8 inlet supports easy integration into existing spray systems while providing a hollow cone spray pattern that ensures uniform distribution. Operators measure its performance by monitoring spray angle and flow rate consistency, crucial for maintaining process standards and reducing material waste. The corrosion-resistant properties of the NPBX-5-5W-1/8 extend service life in harsh industrial environments.
Applications
The use of this nozzle in cooling & quenching processes allows for controlled thermal management, which directly influences product quality and throughput. Additionally, its role in dust & pollution control helps minimize airborne particulates, improving workplace safety and compliance with environmental regulations.
