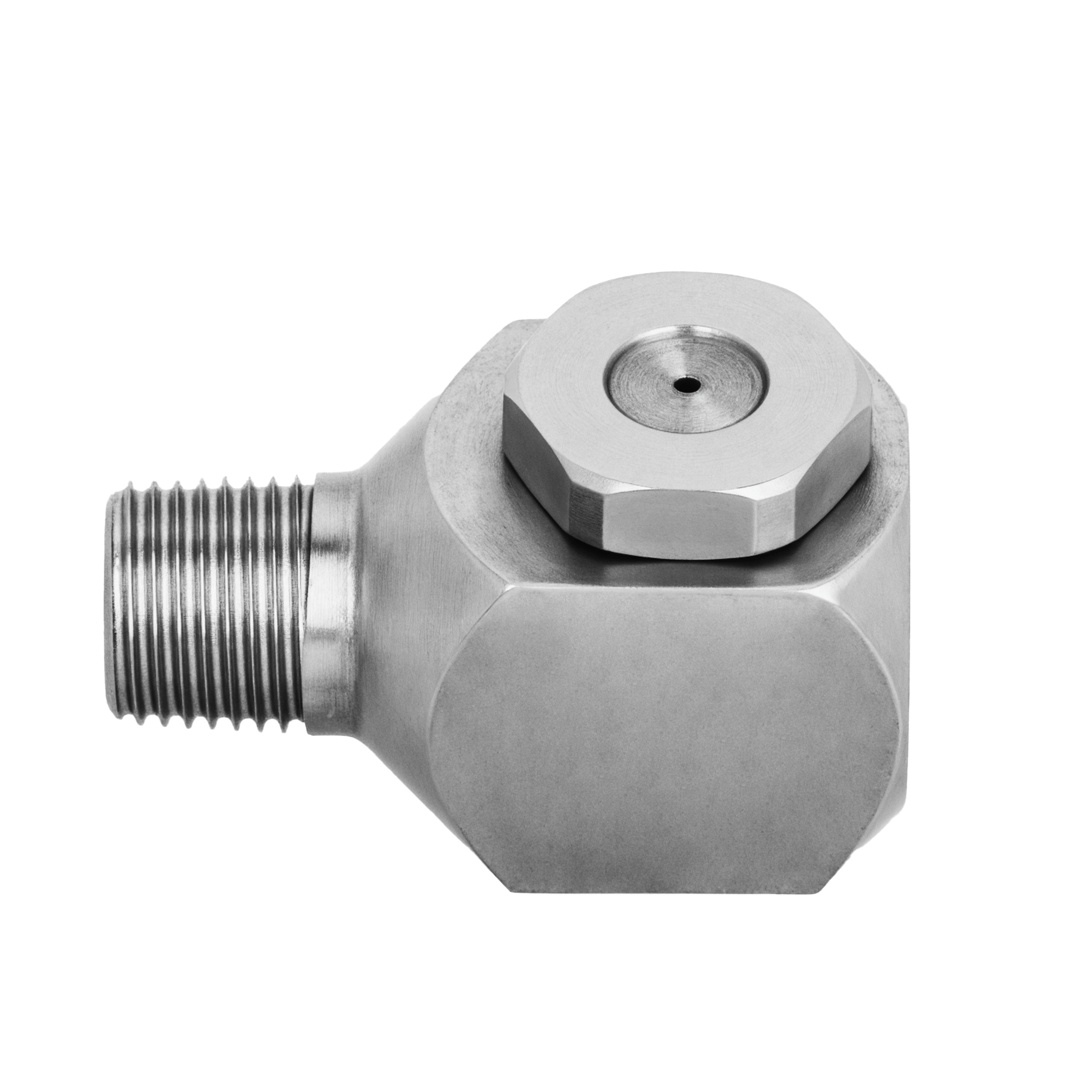

NPBX-5-5W-1/4-SS – Hollow Cone Nozzle, 1/4 Inlet, 303/304 Stainless Steel
Images are representative. Products may differ in material or configuration.
Images are representative. Products may differ in material or configuration.
Product Parameters
| Product Family | Hollow Cone |
|---|---|
| Product Series | NPBX |
| Capacity Size | 5-5W |
| Inlet Connection Thread Type | NPT |
| Inlet Connection Gender | MALE (M) |
| Material Composition Filter | 303/304 stainless steel |
| Orifice Diameter. Nom. (mm) | 3.6 |
| Orifice Diameter. Nom. (in) | 0.125 |
| Inlet Connection Size (in.) | 1/4 |
| Length (mm) | 35 |
| Length (in) | 1.375 |
| Inlet Dia. Nom. (in) | 0.141 |
| Max. Free Passage Dia. (mm) | 3.2 |
Description
Product Overview
Inside the building materials line's specialty applications stage, a production technician relies on the NPBX-5-5W-1/4-SS to deliver consistent spray coverage during surface treatment processes. Crafted from 303/304 stainless steel, the nozzle ensures durability and resistance to corrosion in harsh environments. Its hollow cone spray pattern achieves uniform distribution, which helps maintain precise moisture levels and enhances material quality. This nozzle's reliable flow characteristics contribute to efficient use of resources and reduced downtime.
Applications
In cooling & quenching operations, the NPBX-5-5W-1/4-SS provides a stable hollow cone spray that optimizes temperature control and minimizes thermal stress. Additionally, its role in dust & pollution control supports cleaner air management by capturing airborne particulates effectively within processing areas.
Industries
The nozzle finds broad use across automotive, chemical processing, and steel & metals sectors due to its corrosion-resistant construction and consistent spray performance. Its adaptability to manufacturing & assembly lines, as well as in breweries & wineries, further highlights its value where precise fluid application and material handling are critical.
