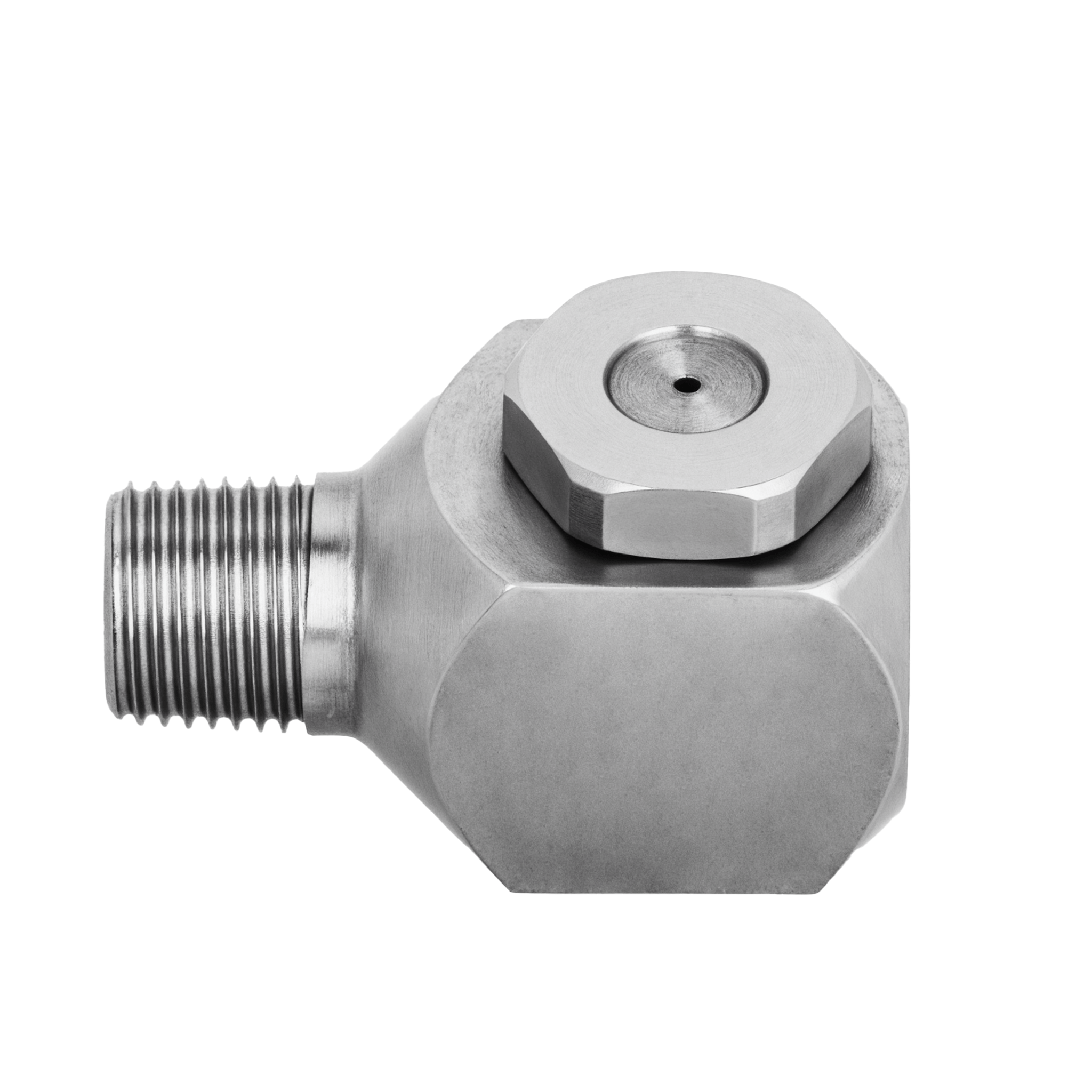

NPBX-5-5W-1/4-316 – Hollow Cone Nozzle, 1/4 Inlet, 316L Stainless Steel
Images are representative. Products may differ in material or configuration.
Images are representative. Products may differ in material or configuration.
Product Parameters
| Product Family | Hollow Cone |
|---|---|
| Product Series | NPBX |
| Capacity Size | 5-5W |
| Inlet Connection Thread Type | NPT |
| Inlet Connection Gender | MALE (M) |
| Material Composition Filter | 316L stainless steel |
| Orifice Diameter. Nom. (mm) | 3.6 |
| Orifice Diameter. Nom. (in) | 0.125 |
| Inlet Connection Size (in.) | 1/4 |
| Length (mm) | 35 |
| Length (in) | 1.375 |
| Inlet Dia. Nom. (in) | 0.141 |
| Max. Free Passage Dia. (mm) | 3.2 |
Description
Product Overview
A plant operator in the breweries & wineries facility uses the NPBX-5-5W-1/4-316 during cooling & quenching to deliver a consistent hollow cone spray that ensures rapid temperature control of brewing vessels. Constructed from 316L stainless steel, the nozzle withstands corrosive environments typical in fermentation and cleaning processes. The 1/4-inch inlet facilitates easy integration with existing piping systems while maintaining uniform coverage. This precision nozzle contributes to minimizing thermal stress and improving process reliability.
Applications
In cooling & quenching operations, the nozzle's uniform hollow cone spray pattern effectively reduces surface temperatures with minimal water consumption. Additionally, its application in dust & pollution control helps contain airborne particulates, supporting cleaner production environments.
