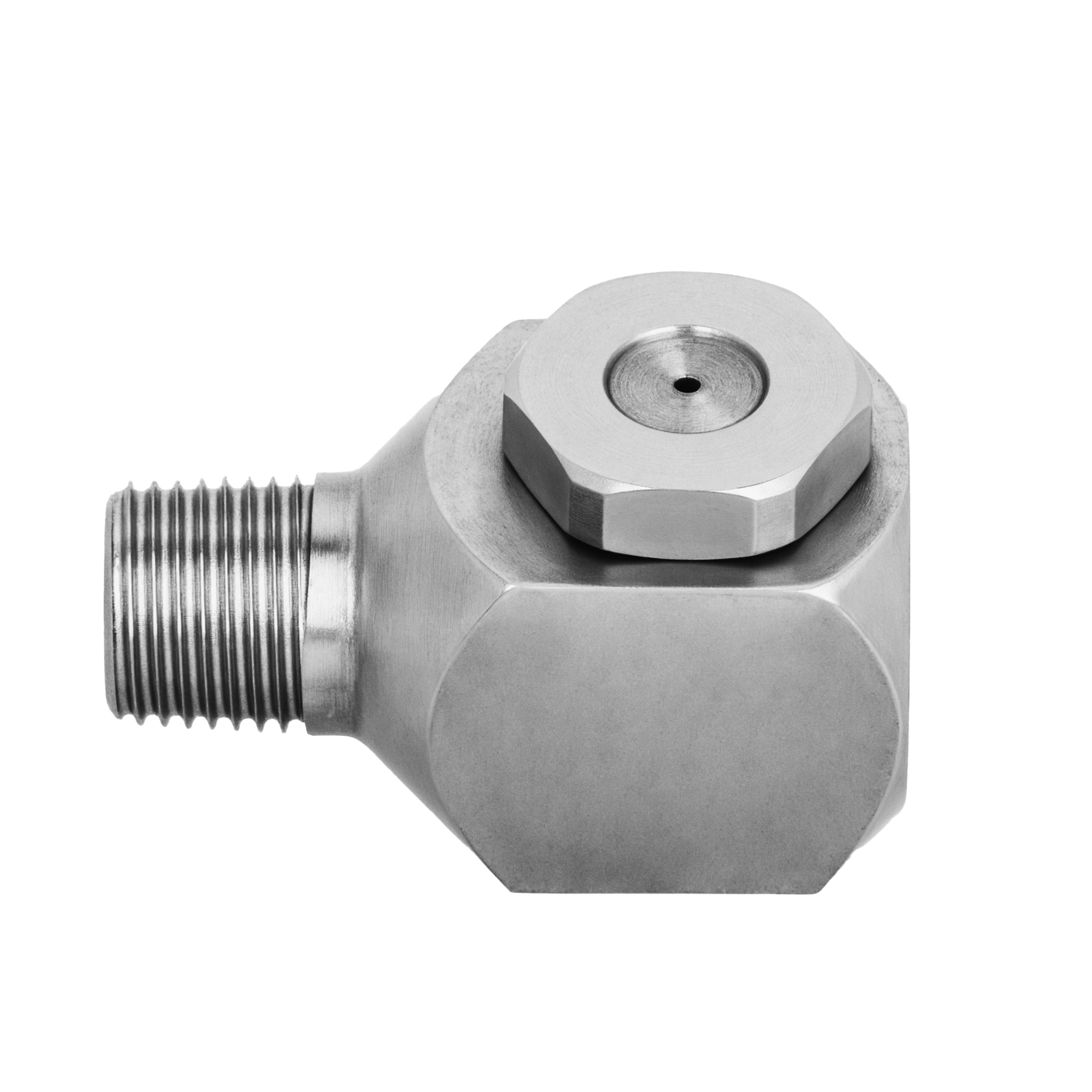

NPBX-5-15W-1/4-316 – Hollow Cone Nozzle, 1/4 Inlet, 316L Stainless Steel
Images are representative. Products may differ in material or configuration.
Images are representative. Products may differ in material or configuration.
Product Parameters
| Product Family | Hollow Cone |
|---|---|
| Product Series | NPBX |
| Capacity Size | 5-15W |
| Inlet Connection Thread Type | NPT |
| Inlet Connection Gender | MALE (M) |
| Material Composition Filter | 316L stainless steel |
| Orifice Diameter. Nom. (mm) | 3.6 |
| Orifice Diameter. Nom. (in) | 0.219 |
| Inlet Connection Size (in.) | 1/4 |
| Length (mm) | 35 |
| Length (in) | 1.375 |
| Inlet Dia. Nom. (in) | 0.141 |
| Max. Free Passage Dia. (mm) | 5.6 |
Description
Product Overview
Inside the building materials line's specialty applications stage, a plant operator relies on the NPBX-5-15W-1/4-316 to deliver consistent hollow cone spray patterns that enhance material coating uniformity. Fabricated from 316l stainless steel, this nozzle withstands corrosive environments common in industrial mixing and curing processes. Its 1/4-inch inlet simplifies integration with existing piping systems, while the precise spray distribution contributes to improved process control and reduced material waste. Operators observe measurable gains in application consistency and reduced downtime due to the nozzle's durability.
Applications
In cooling & quenching operations, the nozzle's uniform hollow cone spray enables rapid temperature reduction and prevents surface defects. Additionally, its role in dust & pollution control helps maintain air quality by efficiently capturing airborne particulates in processing areas.
Industries
The nozzle is widely used across automotive, chemical processing, and steel & metals sectors where corrosion resistance and spray precision are critical. Furthermore, breweries & wineries and manufacturing & assembly plants depend on this nozzle to support processes requiring reliable fluid dispersion under demanding conditions.
