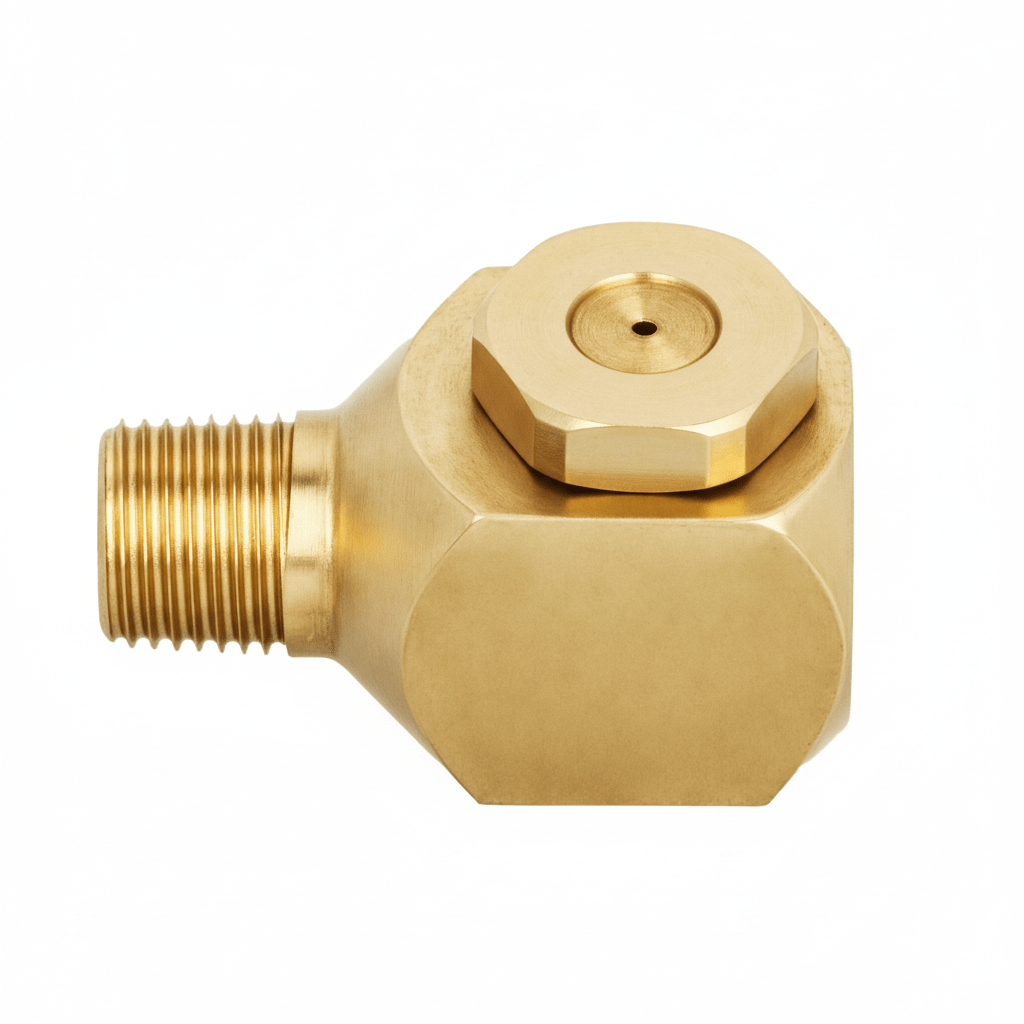

NPBX-5-10W-1/4 – Hollow Cone Nozzle, 1/4 Inlet, Brass
Images are representative. Products may differ in material or configuration.
Images are representative. Products may differ in material or configuration.
Product Parameters
| Product Family | Hollow Cone |
|---|---|
| Product Series | NPBX |
| Capacity Size | 5-10W |
| Inlet Connection Thread Type | NPT |
| Inlet Connection Gender | MALE (M) |
| Material Composition Filter | Brass |
| Orifice Diameter. Nom. (mm) | 3.6 |
| Orifice Diameter. Nom. (in) | 0.172 |
| Inlet Connection Size (in.) | 1/4 |
| Length (mm) | 35 |
| Length (in) | 1.375 |
| Inlet Dia. Nom. (in) | 0.141 |
| Max. Free Passage Dia. (mm) | 4.4 |
Description
Product Overview
When Energy crews manage humidification & conditioning, the NPBX-5-10W-1/4 lets each process engineer install a reliable solution that delivers consistent hollow cone spray patterns. Constructed from brass, this nozzle maintains durability under corrosive environments while ensuring even coverage across target surfaces. Operators integrate the NPBX-5-10W-1/4 into existing piping systems using its 1/4-inch inlet, facilitating precise fluid distribution that supports stable environmental control parameters. The uniform spray reduces variability in moisture levels, improving process repeatability and operational efficiency.
Applications
In cooling & quenching operations, the nozzle's uniform spray pattern supports effective heat dissipation, reducing thermal stress on components. Dust & pollution control applications benefit from its consistent atomization, which enhances particulate capture and limits airborne contaminants.
Industries
Sectors such as automotive, chemical processing, and steel & metals favor this nozzle for its corrosion resistance and reliable spray distribution. Building materials, breweries & wineries, and manufacturing & assembly also utilize the NPBX-5-10W-1/4 to achieve controlled fluid application under demanding production conditions.
