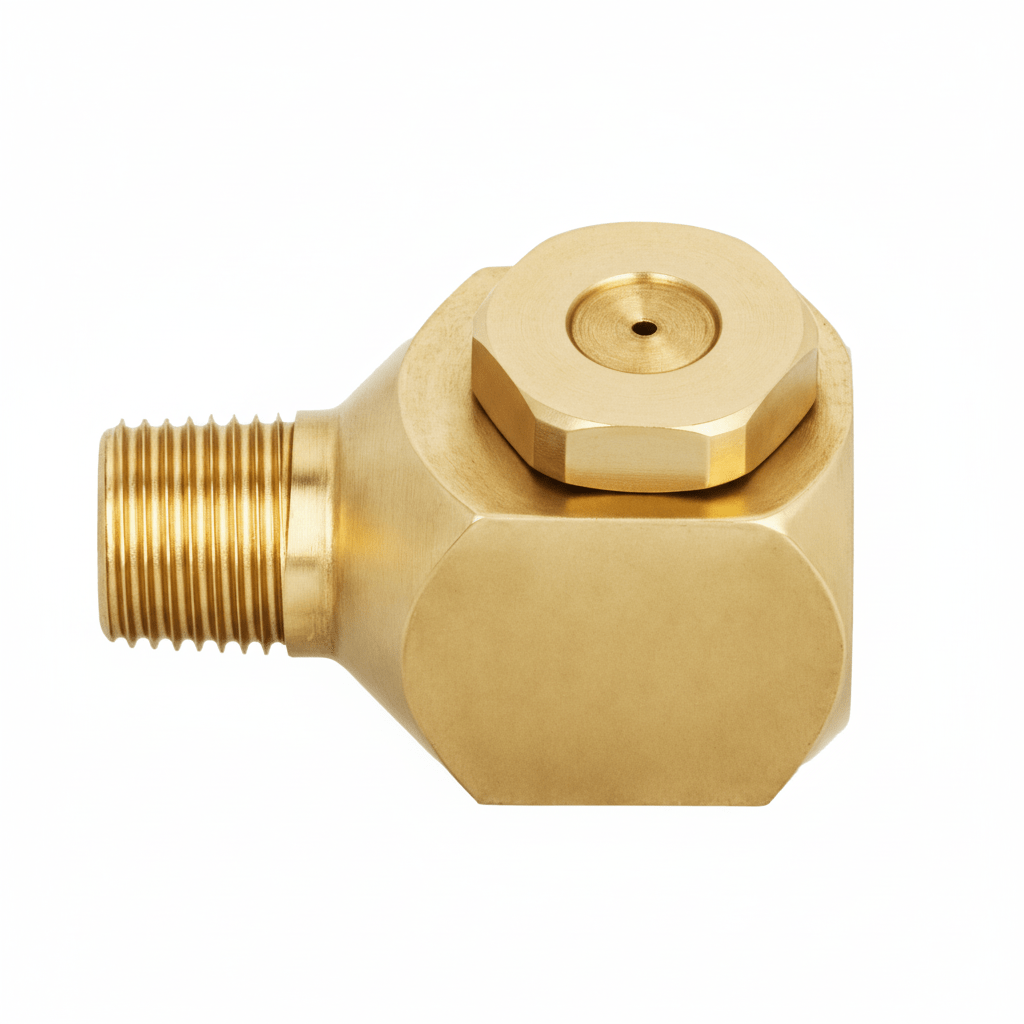

NPBX-10-15W-1/4 – Hollow Cone Nozzle, 1/4 Inlet, Brass
Images are representative. Products may differ in material or configuration.
Images are representative. Products may differ in material or configuration.
Product Parameters
| Product Family | Hollow Cone |
|---|---|
| Product Series | NPBX |
| Capacity Size | 10-15W |
| Inlet Connection Thread Type | NPT |
| Inlet Connection Gender | MALE (M) |
| Material Composition Filter | Brass |
| Orifice Diameter. Nom. (mm) | 4.8 |
| Orifice Diameter. Nom. (in) | 0.219 |
| Inlet Connection Size (in.) | 1/4 |
| Length (mm) | 35 |
| Length (in) | 1.375 |
| Inlet Dia. Nom. (in) | 0.188 |
| Max. Free Passage Dia. (mm) | 5.6 |
Description
Product Overview
A plant operator in the chemical processing facility uses the NPBX-10-15W-1/4 during cooling & quenching to ensure consistent spray coverage over metal surfaces. Constructed from brass, the nozzle's hollow cone design delivers a uniform distribution of liquid, which aids in managing temperature control effectively. The 1/4-inch inlet size allows for straightforward integration with existing piping systems, while the corrosion resistance of the material reduces maintenance intervals. This results in improved process stability and extended equipment life.
Applications
In cooling & quenching operations, the nozzle provides precise liquid dispersion that supports rapid temperature reduction without damaging parts. Additionally, the hollow cone spray pattern is valuable in dust & pollution control by effectively capturing airborne particles and reducing environmental emissions.
Industries
The NPBX-10-15W-1/4 is favored across sectors such as automotive, building materials, and manufacturing & assembly due to its durability and consistent spray performance. Energy, steel & metals, and chemical processing industries also rely on this nozzle for its ability to withstand harsh operating conditions while maintaining fluid delivery accuracy.
