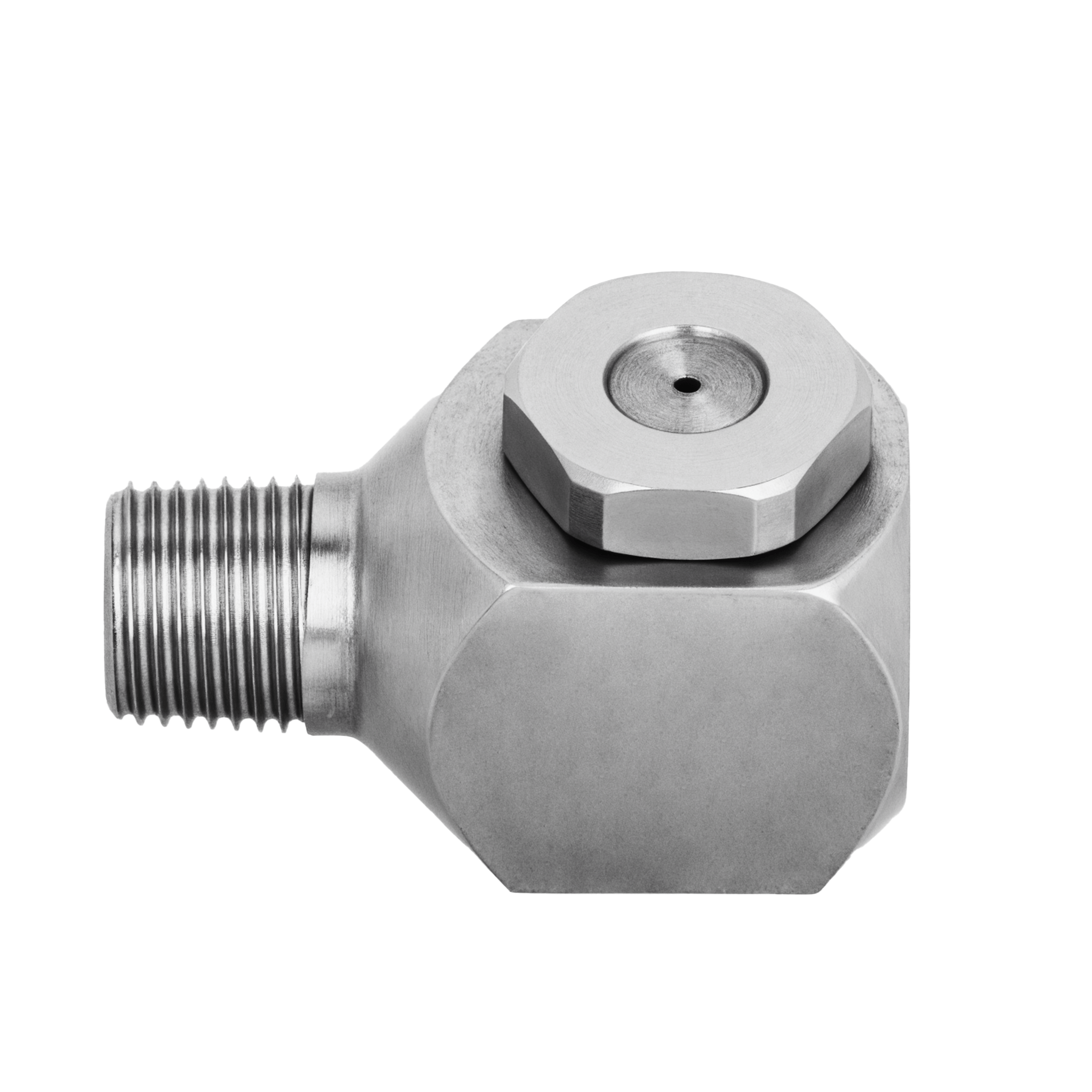

NPBX-1-15W-1/4-316 – Hollow Cone Nozzle, 1/4 Inlet, 316L Stainless Steel
Images are representative. Products may differ in material or configuration.
Images are representative. Products may differ in material or configuration.
Product Parameters
| Product Family | Hollow Cone |
|---|---|
| Product Series | NPBX |
| Capacity Size | 1-15W |
| Inlet Connection Thread Type | NPT |
| Inlet Connection Gender | MALE (M) |
| Material Composition Filter | 316L stainless steel |
| Orifice Diameter. Nom. (mm) | 1.6 |
| Orifice Diameter. Nom. (in) | 0.219 |
| Inlet Connection Size (in.) | 1/4 |
| Length (mm) | 35 |
| Length (in) | 1.375 |
| Inlet Dia. Nom. (in) | 0.063 |
| Max. Free Passage Dia. (mm) | 5.6 |
Description
Product Overview
A plant operator in the automotive facility uses the NPBX-1-15W-1/4-316 during cooling & quenching to maintain consistent temperature control on metal parts. Constructed from 316L stainless steel, this nozzle resists corrosion in harsh environments while delivering a uniform hollow cone spray pattern. The 1/4-inch inlet enables straightforward integration with existing fluid delivery systems, allowing precise application of coolant. This controlled spray helps improve process repeatability and reduces thermal stress on components.
Applications
In cooling & quenching processes, the nozzle ensures even distribution of fluids to rapidly reduce surface temperatures and prevent warping. Additionally, it supports dust & pollution control by atomizing sprays that capture airborne particles effectively, aiding compliance with environmental regulations.
Industries
The NPBX-1-15W-1/4-316 is valued in automotive, steel & metals, and chemical processing sectors for its corrosion resistance and reliable spray characteristics. Facilities focused on manufacturing & assembly, as well as breweries & wineries, also use this nozzle to maintain operational consistency in fluid handling applications.
