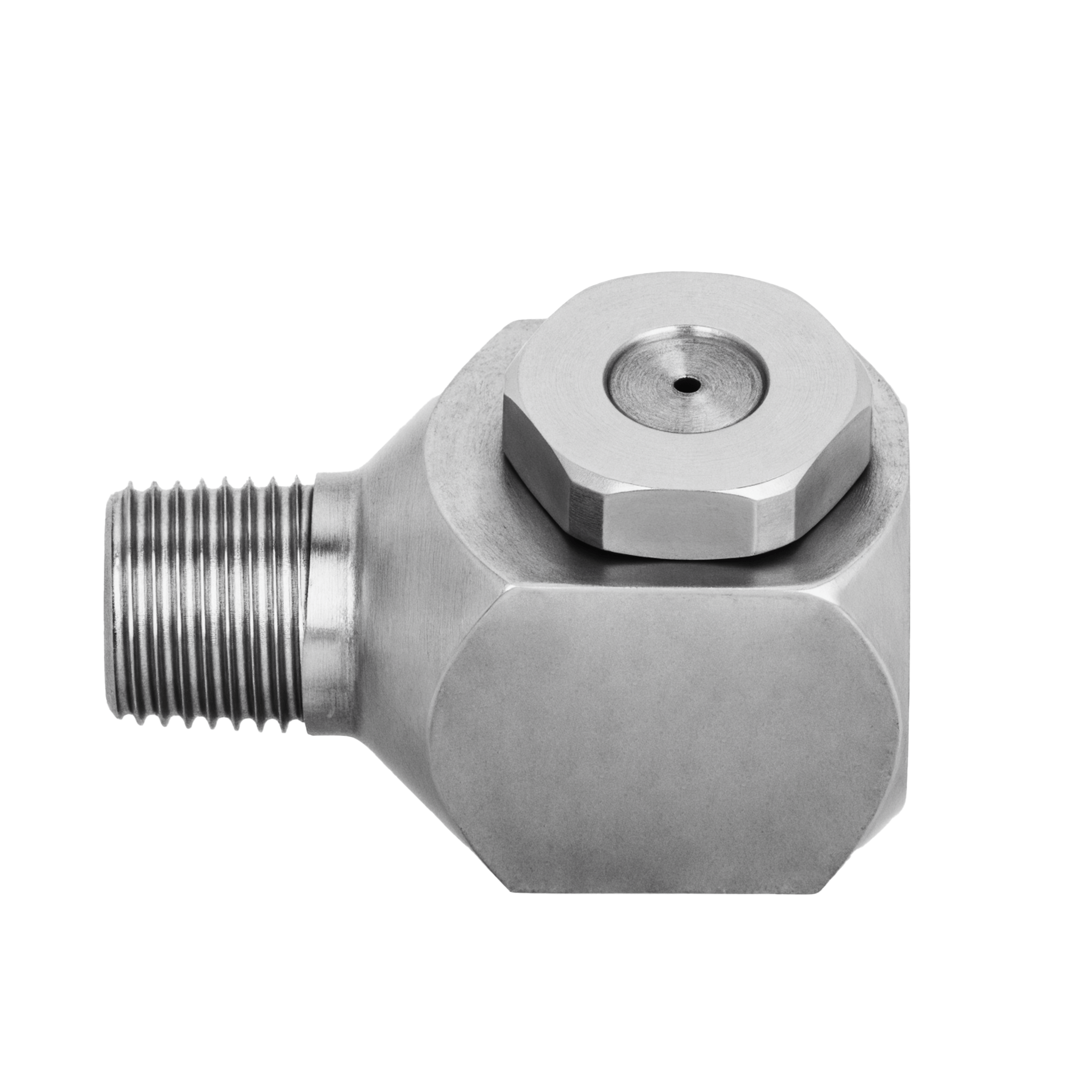

NPBX-1-10W-1/4-SS – Hollow Cone Nozzle, 1/4 Inlet, 303/304 Stainless Steel
Images are representative. Products may differ in material or configuration.
Images are representative. Products may differ in material or configuration.
Product Parameters
| Product Family | Hollow Cone |
|---|---|
| Product Series | NPBX |
| Capacity Size | 1-10W |
| Inlet Connection Thread Type | NPT |
| Inlet Connection Gender | MALE (M) |
| Material Composition Filter | 303/304 stainless steel |
| Orifice Diameter. Nom. (mm) | 1.6 |
| Orifice Diameter. Nom. (in) | 0.172 |
| Inlet Connection Size (in.) | 1/4 |
| Length (mm) | 35 |
| Length (in) | 1.375 |
| Inlet Dia. Nom. (in) | 0.063 |
| Max. Free Passage Dia. (mm) | 4.4 |
Description
Product Overview
Inside the automotive line's humidification & conditioning stage, a production technician relies on the NPBX-1-10W-1/4-SS to deliver consistent and controlled spray coverage. Constructed from 303/304 stainless steel, this nozzle resists corrosion under harsh operating conditions while maintaining uniform hollow cone spray patterns. The technician calibrates the 1/4-inch inlet connection to ensure precise fluid distribution, optimizing humidity levels critical to product quality. This approach reduces variability and supports stable environmental control throughout the manufacturing process.
Applications
In cooling & quenching operations, the nozzle's even spray pattern enables rapid temperature reduction, which minimizes thermal stress on components. Additionally, its use in dust & pollution control helps capture airborne particles effectively, contributing to safer workplace conditions and improved equipment longevity.
Industries
The NPBX-1-10W-1/4-SS is favored by sectors such as automotive, chemical processing, steel & metals, and Energy due to its durability and consistent spray performance. These industries require reliable nozzles capable of withstanding corrosive environments while providing precise fluid management across various production stages.
