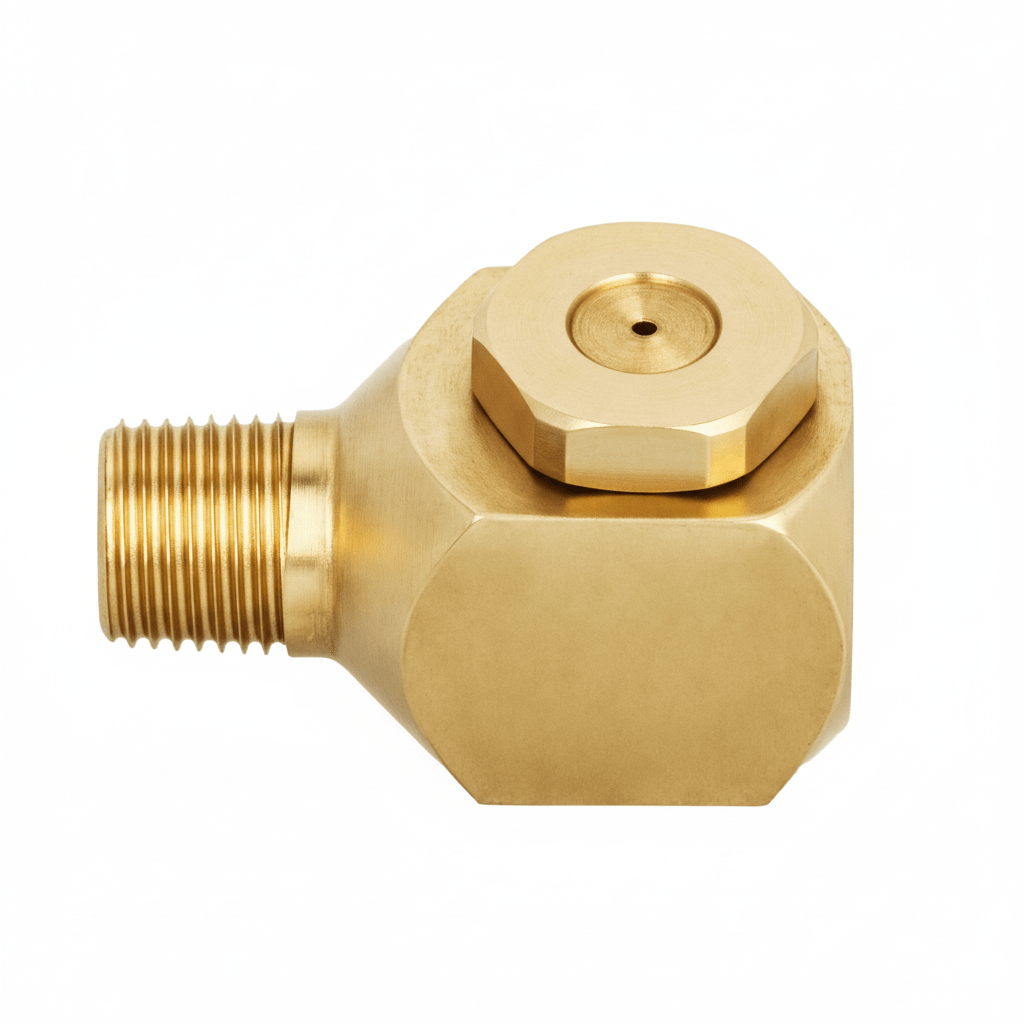

NPBX-1-10W-1/4 – Hollow Cone Nozzle, 1/4 Inlet, Brass
Images are representative. Products may differ in material or configuration.
Images are representative. Products may differ in material or configuration.
Product Parameters
| Product Family | Hollow Cone |
|---|---|
| Product Series | NPBX |
| Capacity Size | 1-10W |
| Inlet Connection Thread Type | NPT |
| Inlet Connection Gender | MALE (M) |
| Material Composition Filter | Brass |
| Orifice Diameter. Nom. (mm) | 1.6 |
| Orifice Diameter. Nom. (in) | 0.172 |
| Inlet Connection Size (in.) | 1/4 |
| Length (mm) | 35 |
| Length (in) | 1.375 |
| Inlet Dia. Nom. (in) | 0.063 |
| Max. Free Passage Dia. (mm) | 4.4 |
Description
Product Overview
Inside the manufacturing & assembly line's specialty applications stage, a maintenance supervisor relies on the NPBX-1-10W-1/4 to deliver consistent spray coverage critical for process stability. Constructed from brass, this nozzle resists corrosion while maintaining structural integrity under harsh conditions. Its precision hollow cone design ensures a uniform spray pattern that optimizes cooling and coating operations. By integrating this nozzle, operators achieve reliable flow rates and reduced downtime linked to nozzle wear or clogging.
Applications
In cooling & quenching processes, the nozzle provides controlled fluid distribution to maintain material properties and prevent thermal stress. Additionally, its use in dust & pollution control helps minimize airborne particulates, improving workplace safety and regulatory compliance.
Industries
Sectors such as automotive, chemical processing, and steel & metals depend on this nozzle for its ability to withstand corrosive environments and deliver precise spray patterns. The consistent performance also benefits energy, cement, and breweries & wineries operations where process reliability and fluid handling accuracy are essential.
