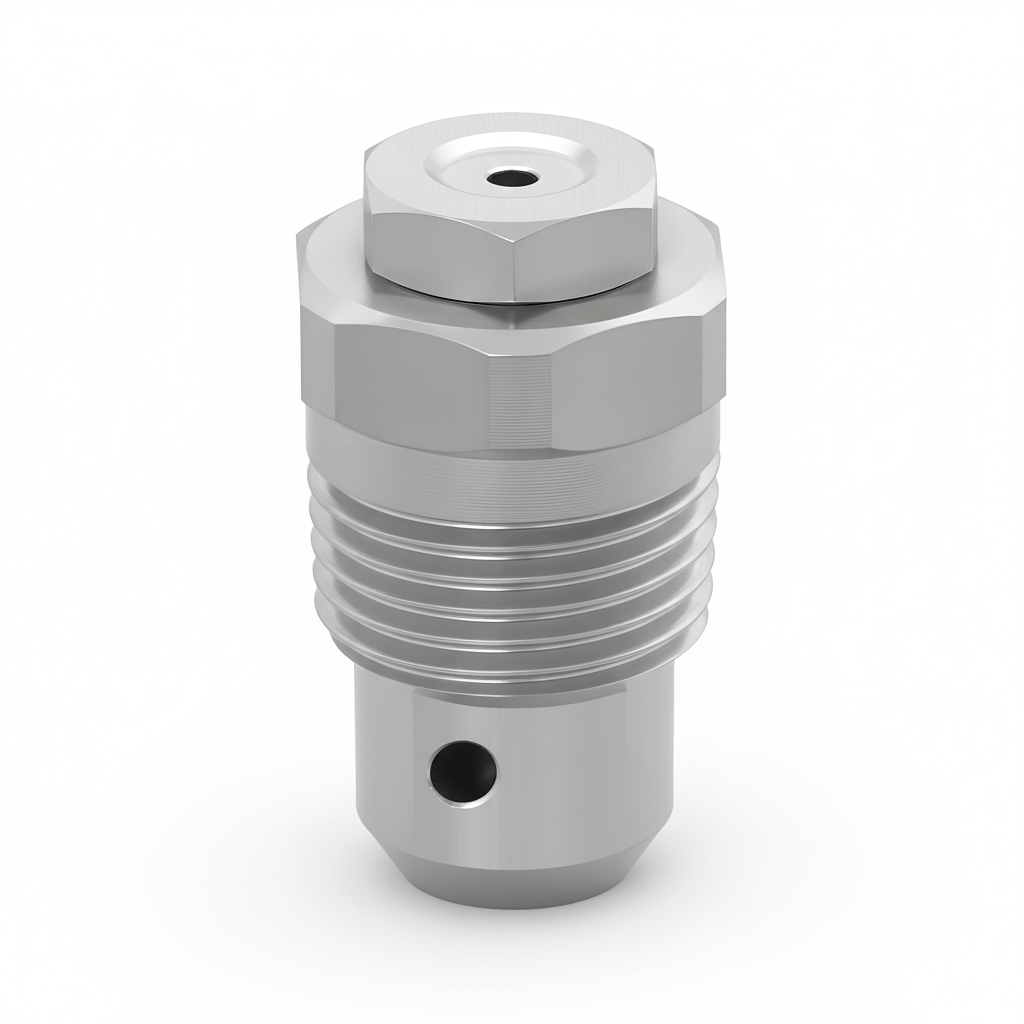

NPBD-5-10W-3/8-316 – Hollow Cone Nozzle, 3/8 Inlet, 316L stainless steel
Images are representative. Products may differ in material or configuration.
Images are representative. Products may differ in material or configuration.
Product Parameters
| Product Family | Hollow Cone |
|---|---|
| Product Series | NPBD |
| Capacity Size | 5-10W |
| Inlet Connection Thread Type | NPT |
| Inlet Connection Gender | MALE (M) |
| Material Composition Filter | 316L stainless steel |
| Orifice Diameter. Nom. (mm) | 2.8 |
| Orifice Diameter. Nom. (in) | 0.172 |
| Inlet Connection Size (in.) | 3/8 |
| Hex Size (mm) | 17.5 |
| Inlet Dia. Nom. (in) | 0.109 |
| Max. Free Passage Dia. (mm) | 4.4 |
Description
Product Overview
During cooling & quenching on a manufacturing & assembly site, quality managers trust the NPBD-5-10W-3/8-316 to deliver consistent and controlled spray coverage. Made from 316L stainless steel, this nozzle resists corrosion in harsh environments while maintaining a hollow cone spray pattern that ensures uniform fluid distribution. Operators rely on its 3/8 inch inlet size for easy integration into existing systems, achieving precise thermal regulation and minimizing material stress during heat treatment. As a result, the NPBD-5-10W-3/8-316 supports product quality and process reliability in demanding industrial settings.
Applications
The nozzle's design is well-suited for cooling & quenching applications where temperature control is critical to material properties. Additionally, its consistent spray pattern aids dust & pollution control by capturing airborne particles efficiently, which helps maintain compliance with environmental regulations and workplace safety.
