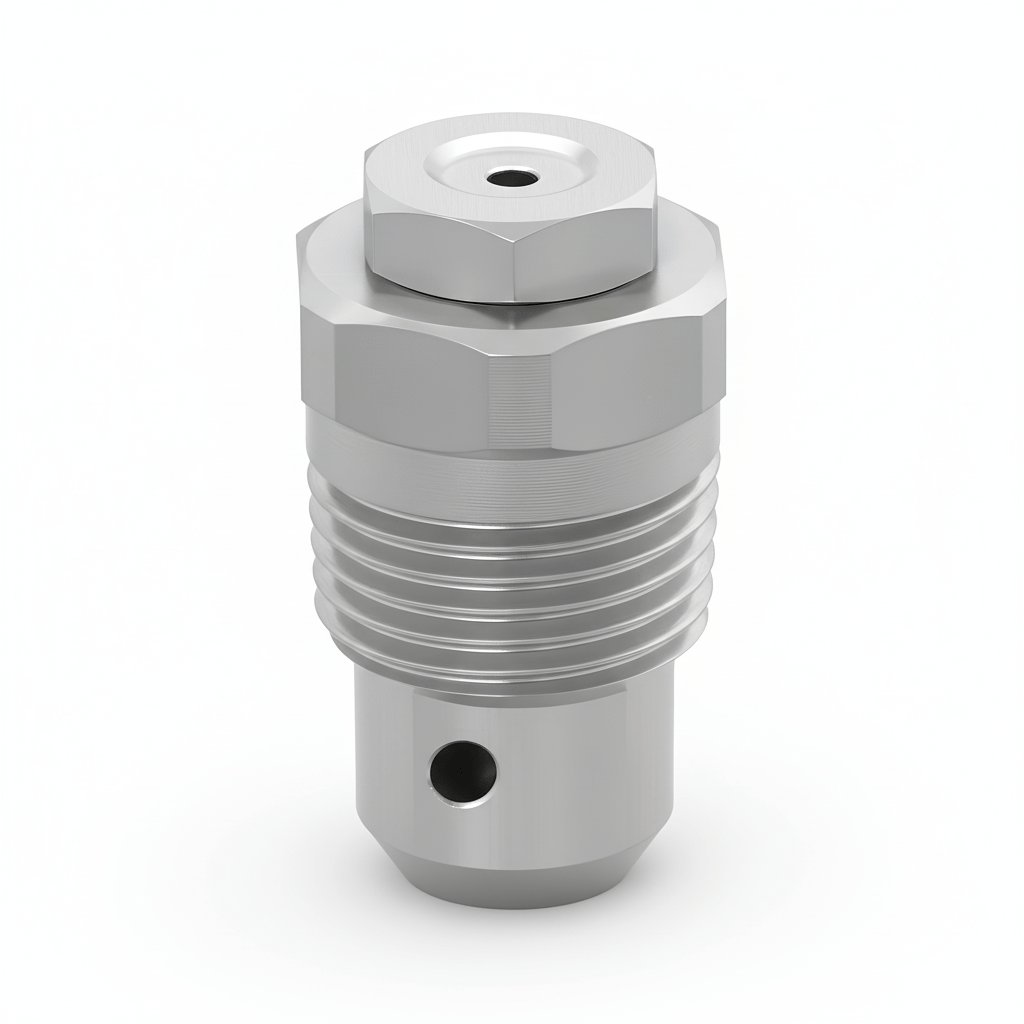

NPBD-3-5W-3/8-316 – Hollow Cone Nozzle, 3/8 Inlet, 316L stainless steel
Images are representative. Products may differ in material or configuration.
Images are representative. Products may differ in material or configuration.
Product Parameters
| Product Family | Hollow Cone |
|---|---|
| Product Series | NPBD |
| Capacity Size | 3-5W |
| Inlet Connection Thread Type | NPT |
| Inlet Connection Gender | MALE (M) |
| Material Composition Filter | 316L stainless steel |
| Orifice Diameter. Nom. (mm) | 2.4 |
| Orifice Diameter. Nom. (in) | 0.125 |
| Inlet Connection Size (in.) | 3/8 |
| Hex Size (mm) | 17.5 |
| Inlet Dia. Nom. (in) | 0.094 |
| Max. Free Passage Dia. (mm) | 3.2 |
Description
Product Overview
During cooling & quenching on a manufacturing & assembly site, production technicians trust the NPBD-3-5W-3/8-316 to deliver consistent spray coverage essential for maintaining material integrity. Constructed from 316L stainless steel, the nozzle withstands corrosive environments while producing a precision hollow cone spray pattern. This uniform distribution helps optimize thermal exchange and prevents hotspots during metal processing. Operators rely on the 3/8 inlet size for straightforward integration into existing fluid delivery systems, ensuring stable flow rates and repeatable results.
Applications
In cooling & quenching operations, the NPBD-3-5W-3/8-316 nozzle supports controlled temperature reduction critical to product quality. It also plays a role in dust & pollution control by generating fine mist sprays that capture airborne particulates, reducing environmental emissions at the source.
Industries
Sectors such as building materials, mining, and cement utilize this nozzle for its resistance to harsh chemicals and abrasive conditions. Additionally, roofing and manufacturing & assembly industries benefit from its durability and consistent spray performance in processes that demand reliable fluid application.
