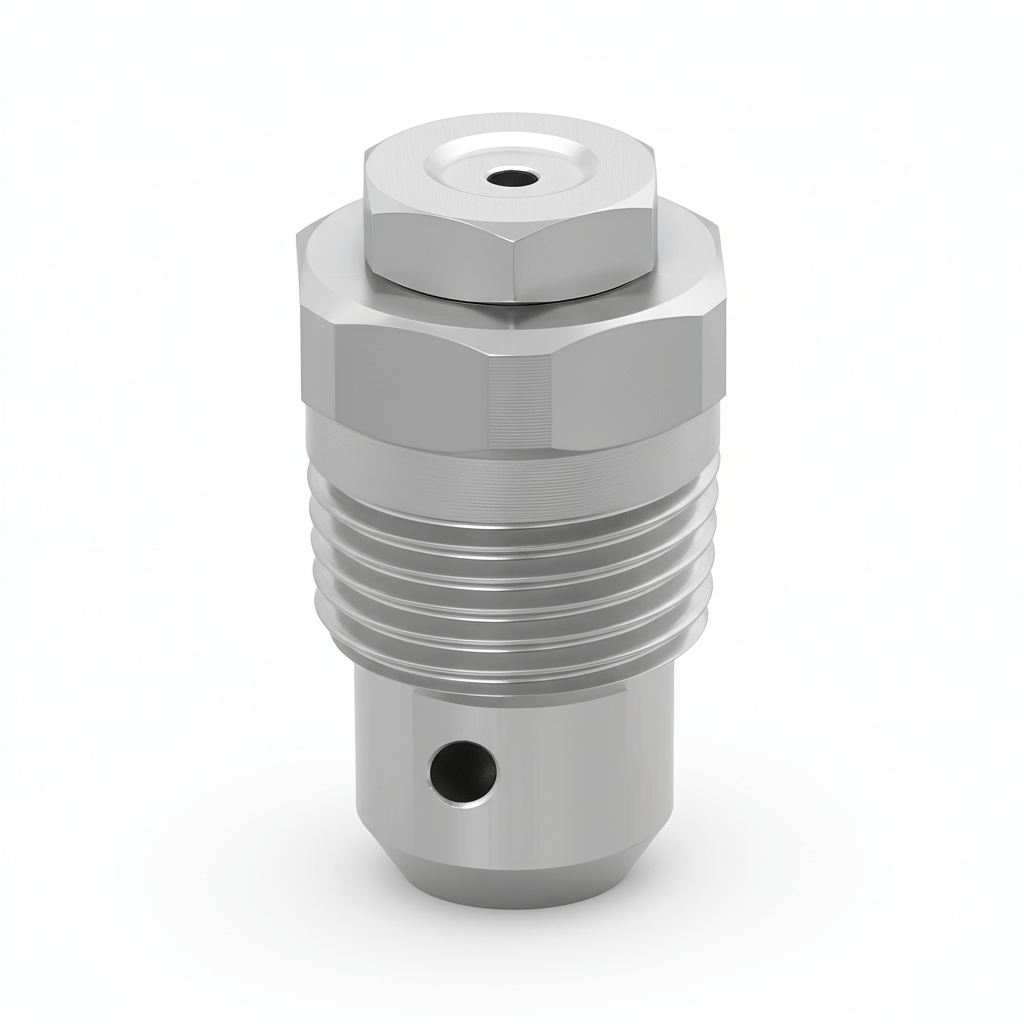

NPBD-10-10W-3/4-316 – Hollow Cone Nozzle, 3/4 Inlet, 316L stainless steel
Images are representative. Products may differ in material or configuration.
Images are representative. Products may differ in material or configuration.
Product Parameters
| Product Family | Hollow Cone |
|---|---|
| Product Series | NPBD |
| Capacity Size | 10-10W |
| Inlet Connection Thread Type | NPT |
| Inlet Connection Gender | MALE (M) |
| Material Composition Filter | 316L stainless steel |
| Orifice Diameter. Nom. (mm) | 5.2 |
| Orifice Diameter. Nom. (in) | 0.172 |
| Inlet Connection Size (in.) | 3/4 |
| Hex Size (mm) | 27 |
| Inlet Dia. Nom. (in) | 0.203 |
| Max. Free Passage Dia. (mm) | 4.4 |
Description
Product Overview
During cooling & quenching on an Energy site, maintenance supervisors trust the NPBD-10-10W-3/4-316 to deliver consistent spray coverage essential for temperature control. Fabricated from 316L stainless steel, the nozzle resists corrosion in harsh chemical environments, extending operational life. Its hollow cone spray pattern ensures uniform fluid distribution, minimizing hot spots and improving process efficiency. Operators can measure performance by monitoring spray angle and flow rate to maintain precise thermal regulation.
Applications
The NPBD-10-10W-3/4-316 nozzle plays a critical role in cooling & quenching processes where even fluid application prevents material distortion. In dust & pollution control setups, the uniform hollow cone spray aids in capturing airborne particles, reducing emissions and improving workplace safety.
Industries
This nozzle is favored across building materials, mining, cement, and manufacturing & assembly industries due to its durability and corrosion resistance under demanding conditions. Roofing applications also benefit from its reliable spray pattern, helping to ensure consistent material application and long-term system stability.
