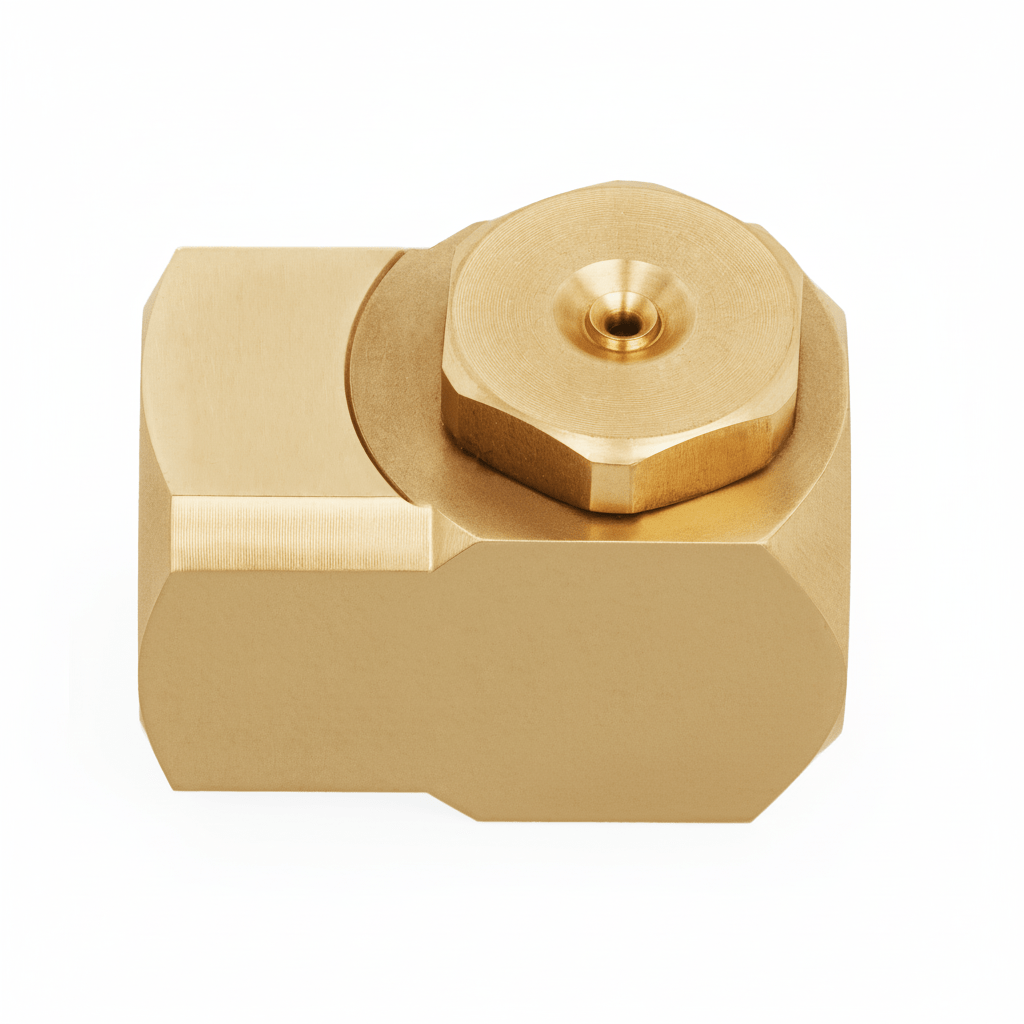

NPAX-5-10W-1/8 – Hollow Cone Nozzle, 1/8 Inlet, Brass
Images are representative. Products may differ in material or configuration.
Images are representative. Products may differ in material or configuration.
Product Parameters
| Product Family | Hollow Cone |
|---|---|
| Product Series | NPAX |
| Capacity Size | 5-10W |
| Inlet Connection Thread Type | NPT |
| Inlet Connection Gender | FEMALE (F) |
| Material Composition Filter | Brass |
| Orifice Diameter. Nom. (mm) | 3.2 |
| Orifice Diameter. Nom. (in) | 0.172 |
| Inlet Connection Size (in.) | 1/8 |
| Length (mm) | 25.5 |
| Length (in) | 1.000 |
| Inlet Dia. Nom. (in) | 0.125 |
| Max. Free Passage Dia. (mm) | 4.4 |
Description
Product Overview
A quality manager in the building materials facility uses the NPAX-5-10W-1/8 during specialty applications to deliver consistent spray coverage critical for process reliability. Manufactured from brass, this nozzle features a 1/8-inch inlet that ensures easy integration with existing equipment. Its hollow cone spray pattern creates a uniform mist that improves material conditioning while resisting corrosion under harsh operating conditions. The precision design helps maintain predictable flow rates, supporting tighter process control and reducing maintenance intervals.
Applications
In cooling & quenching operations, the NPAX-5-10W-1/8 provides uniform spray distribution that aids in temperature regulation and surface treatment consistency. The nozzle's ability to support dust & pollution control also helps facilities meet environmental compliance by improving particulate suppression during production.
Industries
The NPAX-5-10W-1/8 is preferred across multiple sectors including automotive, building materials, and chemical processing, where durability and consistent spray patterns are essential. Additional applications in Energy, steel & metals, breweries & wineries, manufacturing & assembly, and meat & poultry benefit from its corrosion resistance and flow stability in demanding environments.
