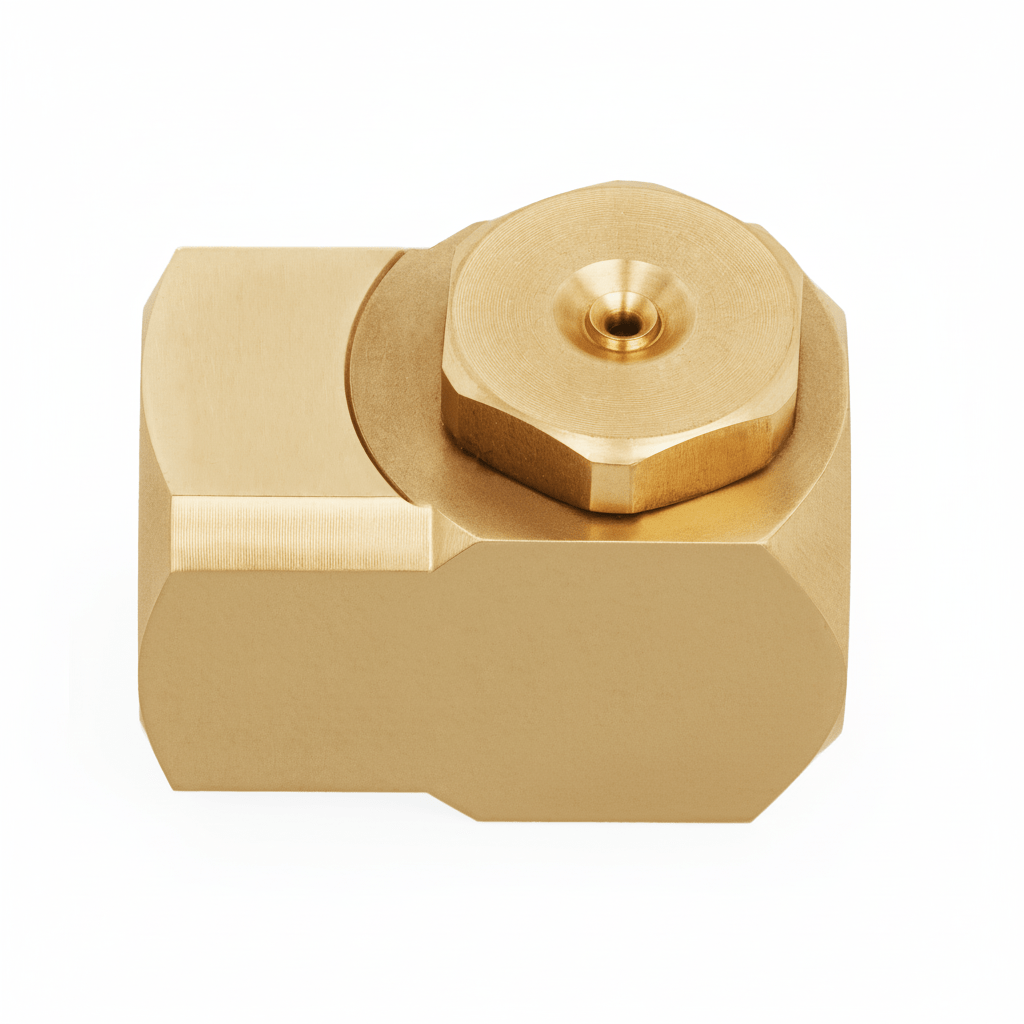

NPAX-1-5W-1/4 – Hollow Cone Nozzle, 1/4 Inlet, Brass
Images are representative. Products may differ in material or configuration.
Images are representative. Products may differ in material or configuration.
Product Parameters
| Product Family | Hollow Cone |
|---|---|
| Product Series | NPAX |
| Capacity Size | 1-5W |
| Inlet Connection Thread Type | NPT |
| Inlet Connection Gender | FEMALE (F) |
| Material Composition Filter | Brass |
| Orifice Diameter. Nom. (mm) | 1.6 |
| Orifice Diameter. Nom. (in) | 0.125 |
| Inlet Connection Size (in.) | 1/4 |
| Length (mm) | 32 |
| Length (in) | 1.250 |
| Inlet Dia. Nom. (in) | 0.063 |
| Max. Free Passage Dia. (mm) | 3.2 |
Description
Product Overview
Inside the building materials line's specialty applications stage, a utilities coordinator relies on the NPAX-1-5W-1/4 to deliver consistent fluid distribution across molding and curing processes. Constructed from brass, this nozzle features a 1/4-inch inlet and produces a hollow cone spray pattern that ensures uniform coverage while resisting corrosion in harsh operating environments. By maintaining precise spray geometry, the nozzle aids in optimizing material curing times and reducing waste. The measurable outcome is improved process stability and reduced downtime due to nozzle wear or inconsistent application.
Applications
In cooling & quenching operations, this nozzle provides steady and controlled spray patterns essential for rapid temperature reduction without surface damage. Additionally, it supports dust & pollution control by evenly dispersing mist to capture airborne particles, enhancing workplace air quality and equipment longevity.
Industries
The NPAX-1-5W-1/4 finds frequent use in sectors such as automotive, steel & metals, and manufacturing & assembly where precise fluid application is critical for quality and efficiency.
