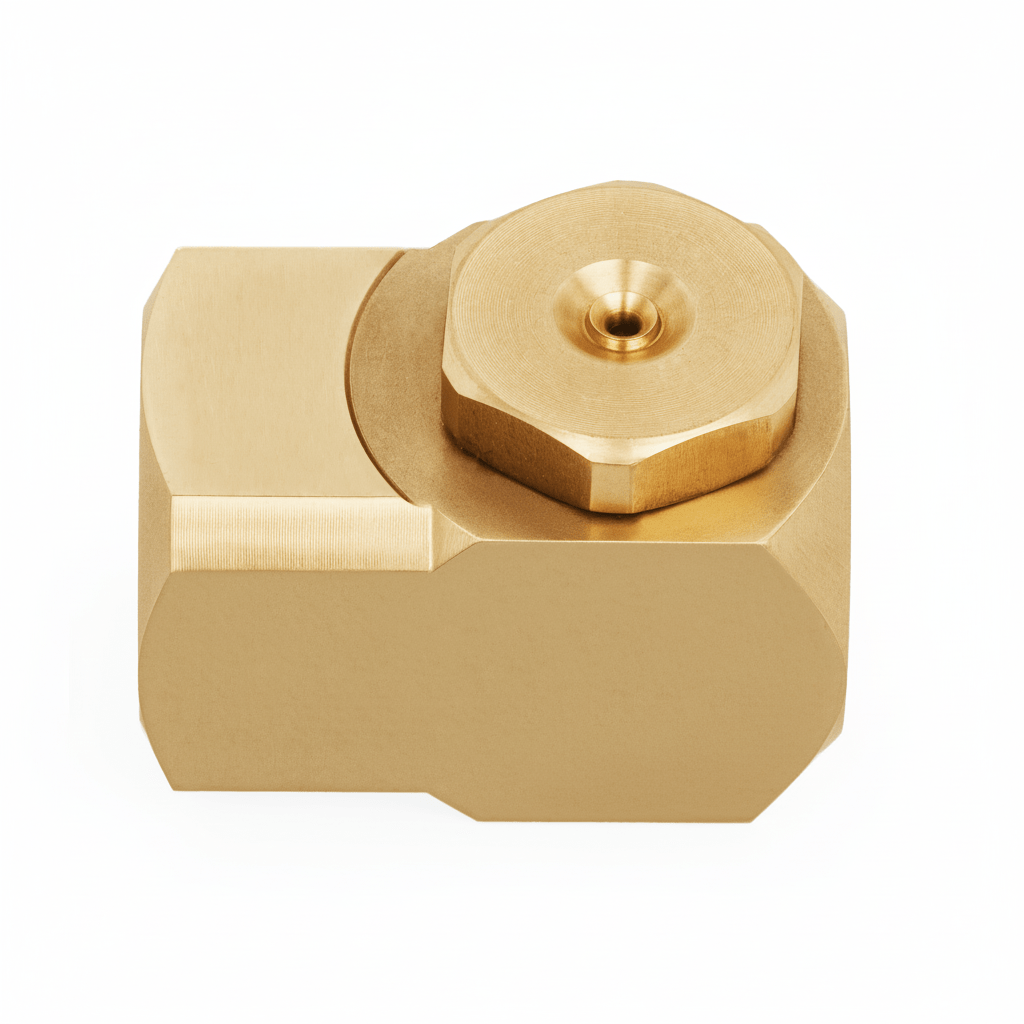

NPAX-1-1W-1/4 – Hollow Cone Nozzle, 1/4 Inlet, Brass
Images are representative. Products may differ in material or configuration.
Images are representative. Products may differ in material or configuration.
Product Parameters
| Product Family | Hollow Cone |
|---|---|
| Product Series | NPAX |
| Capacity Size | 1-1W |
| Inlet Connection Thread Type | NPT |
| Inlet Connection Gender | FEMALE (F) |
| Material Composition Filter | Brass |
| Orifice Diameter. Nom. (mm) | 1.6 |
| Orifice Diameter. Nom. (in) | 0.063 |
| Inlet Connection Size (in.) | 1/4 |
| Length (mm) | 32 |
| Length (in) | 1.250 |
| Inlet Dia. Nom. (in) | 0.063 |
| Max. Free Passage Dia. (mm) | 1.6 |
Description
Product Overview
A production technician in the steel & metals facility uses the NPAX-1-1W-1/4 during specialty applications to achieve a consistent hollow cone spray pattern essential for even coverage. The brass construction offers durability and corrosion resistance, allowing reliable operation in harsh environments. By installing the 1/4 inch inlet nozzle, the operator ensures precise fluid distribution that supports process stability and reduces material waste. This results in controlled cooling and improved surface finish quality across metal components.
Applications
The nozzle's uniform spray pattern is critical for cooling & quenching processes, where fluid consistency directly influences metallurgical properties. Additionally, it supports dust & pollution control by effectively suppressing airborne particles, contributing to cleaner workspaces and compliance with environmental standards.
