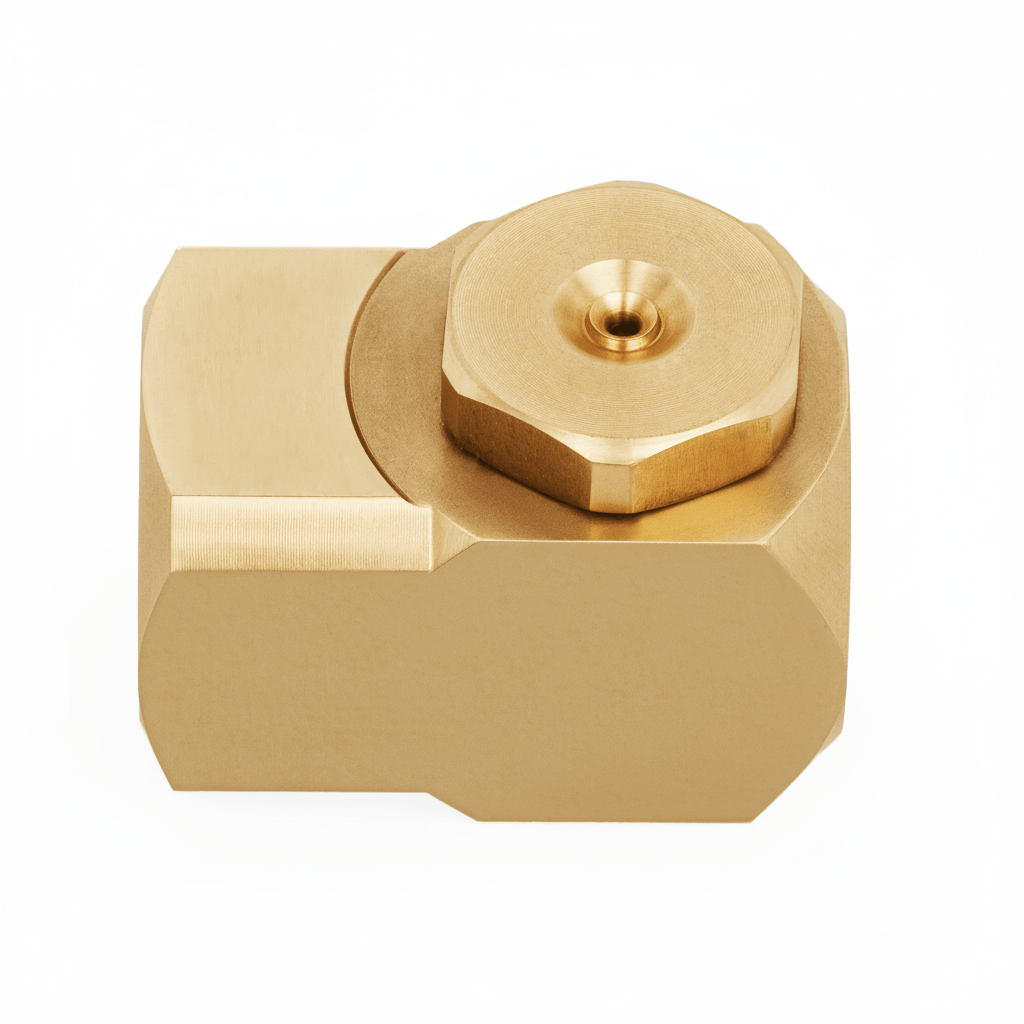

NPAX-1-15W-1/4 – Hollow Cone Nozzle, 1/4 Inlet, Brass
Images are representative. Products may differ in material or configuration.
Images are representative. Products may differ in material or configuration.
Product Parameters
| Product Family | Hollow Cone |
|---|---|
| Product Series | NPAX |
| Capacity Size | 1-15W |
| Inlet Connection Thread Type | NPT |
| Inlet Connection Gender | FEMALE (F) |
| Material Composition Filter | Brass |
| Orifice Diameter. Nom. (mm) | 1.6 |
| Orifice Diameter. Nom. (in) | 0.219 |
| Inlet Connection Size (in.) | 1/4 |
| Length (mm) | 32 |
| Length (in) | 1.250 |
| Inlet Dia. Nom. (in) | 0.063 |
| Max. Free Passage Dia. (mm) | 5.6 |
Description
Product Overview
Inside the steel & metals line's specialty applications stage, a plant operator relies on the NPAX-1-15W-1/4 to deliver a consistent spray pattern critical for uniform cooling during quenching processes. Constructed from brass, this nozzle resists corrosion in harsh environments, enabling sustained operation without frequent maintenance. The hollow cone design ensures an even distribution of liquid, improving process control and reducing thermal stresses on metal components. By integrating this nozzle, operators can maintain tighter temperature tolerances and enhance product quality downstream.
Applications
In cooling & quenching operations, the NPAX-1-15W-1/4 provides a controlled and uniform spray that effectively manages thermal gradients in metal treatment. The nozzle's precise flow characteristics also support dust & pollution control by efficiently suppressing particulate emissions in industrial air streams.
