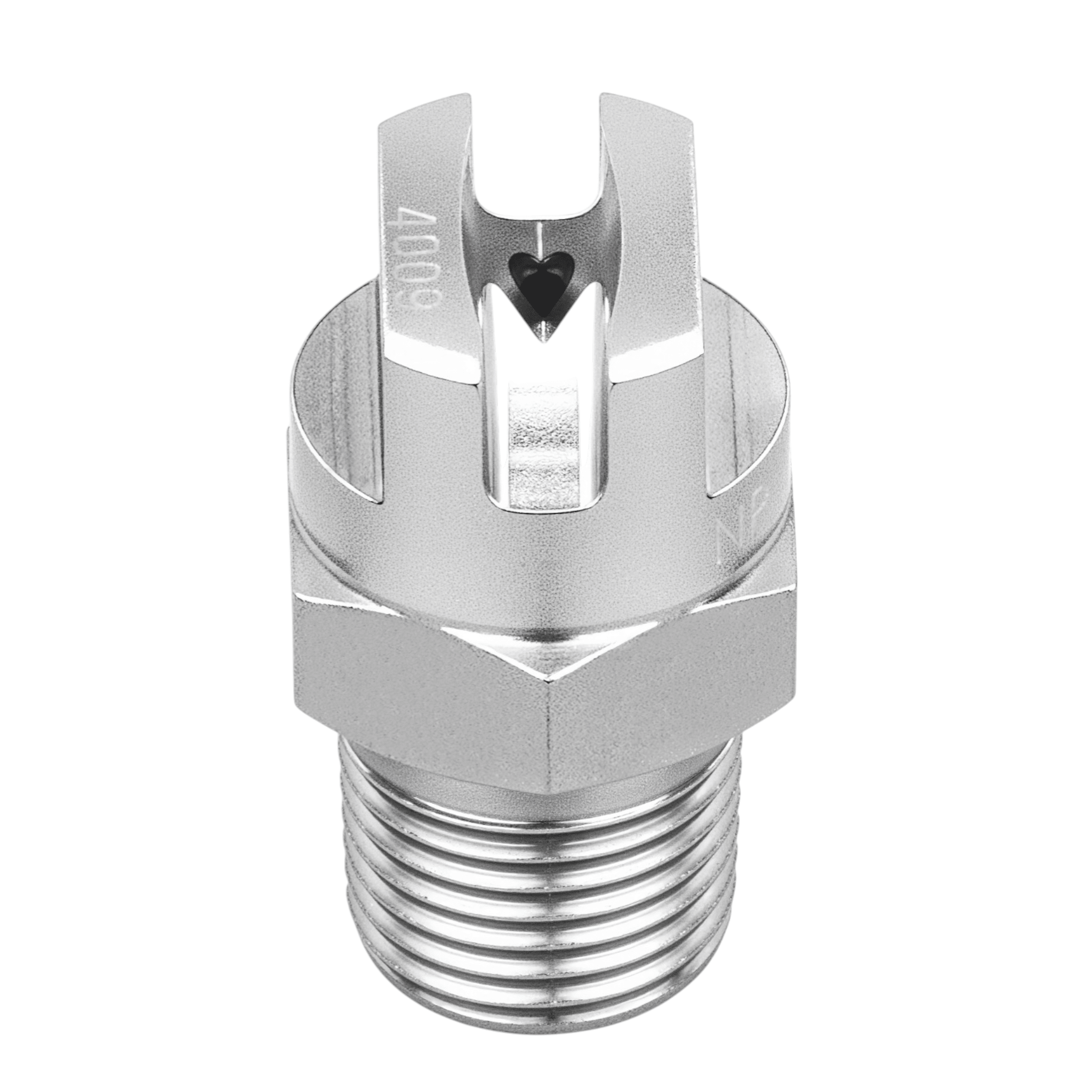

NPHV-8008-1/4-316 β Flat Nozzle, 1/4 Inlet, 316L stainless steel
Images are representative. Products may differ in material or configuration.
Images are representative. Products may differ in material or configuration.
Product Parameters
| Product Family | Flat |
|---|---|
| Product Series | NPHV |
| Capacity Size | 8 |
| Inlet Connection Thread Type | NPT |
| Material Composition Filter | 316L stainless steel |
| Inlet Connection Size (in.) | 1/4 |
| Length (mm) | 23 |
| Length (in) | 0.906 |
| Hex Size (mm) | 14.3 |
| Hex Size (in) | 9/16 |
| Equivalent Orifice Diameter (in) | 0.071 |
| Spray Angle at Rated Pressure (PSI) | 80 |
| Equivalent Orifice Diameter (mm) | 1.8 |
Description
Product Overview
Inside the dairy line's coating & surface treatment stage, a process engineer relies on the NPHV-8008-1/4-316 to deliver consistent coverage across conveyorized product surfaces. Constructed from 316L stainless steel, the nozzle withstands exposure to corrosive cleaning agents and steam. Its flat spray pattern is calibrated for uniform distribution, minimizing over-application and reducing waste. The engineer monitors flow rates and spray angles to maintain process stability and product quality.
Applications
During cleaning & washing operations, the nozzle ensures thorough removal of residues without damaging sensitive equipment. This uniform spray distribution also supports cooling & quenching processes that prevent overheating and maintain material integrity downstream.
Industries
Sectors such as automotive, cement, and steel & metals utilize this nozzle for its durability and reliable spray control under harsh conditions. Food & beverage and breweries & wineries favor its corrosion resistance and precise application in environments demanding stringent hygiene and consistency.
