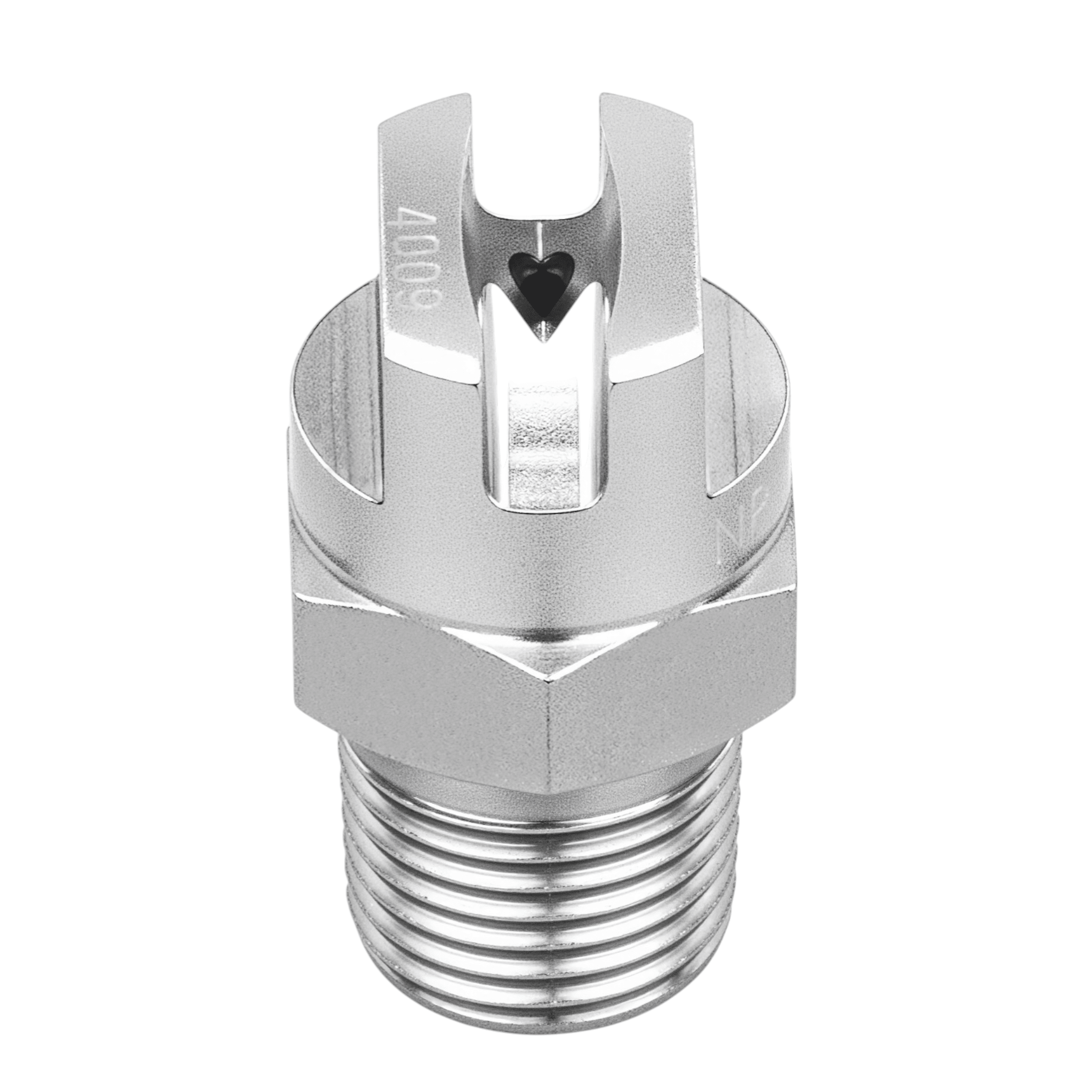

NPHV-5008-1/4-SS – Flat Nozzle, 1/4 Inlet, 303/304 stainless steel
Images are representative. Products may differ in material or configuration.
Images are representative. Products may differ in material or configuration.
Product Parameters
| Product Family | Flat |
|---|---|
| Product Series | NPHV |
| Capacity Size | 8 |
| Inlet Connection Thread Type | NPT |
| Material Composition Filter | 303/304 stainless steel |
| Inlet Connection Size (in.) | 1/4 |
| Length (mm) | 23 |
| Length (in) | 0.906 |
| Hex Size (mm) | 14.3 |
| Hex Size (in) | 9/16 |
| Equivalent Orifice Diameter (in) | 0.071 |
| Spray Angle at Rated Pressure (PSI) | 50 |
| Equivalent Orifice Diameter (mm) | 1.8 |
Description
Product Overview
During coating & surface treatment on an automotive site, maintenance supervisors trust the NPHV-5008-1/4-SS to deliver consistent and uniform flat spray coverage. Crafted from durable 303/304 stainless steel, this nozzle resists corrosion and wear in harsh environments, extending service life. Operators install the nozzle using its 1/4-inch inlet, ensuring compatibility with existing fluid delivery systems. The precision spray pattern improves coating adherence and reduces overspray, contributing to tighter process control and material savings.
Applications
In cleaning & washing processes, the uniform spray distribution of the NPHV-5008-1/4-SS enables effective removal of contaminants without damaging sensitive surfaces. Its role in cooling & quenching supports thermal management by delivering consistent flow rates that stabilize component temperatures during production cycles.
Industries
Sectors such as automotive, mining, and steel & metals rely on this nozzle for its resistance to corrosion and ability to maintain performance in abrasive environments. Food & beverage, beverage bottling & packaging, and breweries & wineries also prefer it for processes requiring hygienic and precise fluid application under demanding operational conditions.
