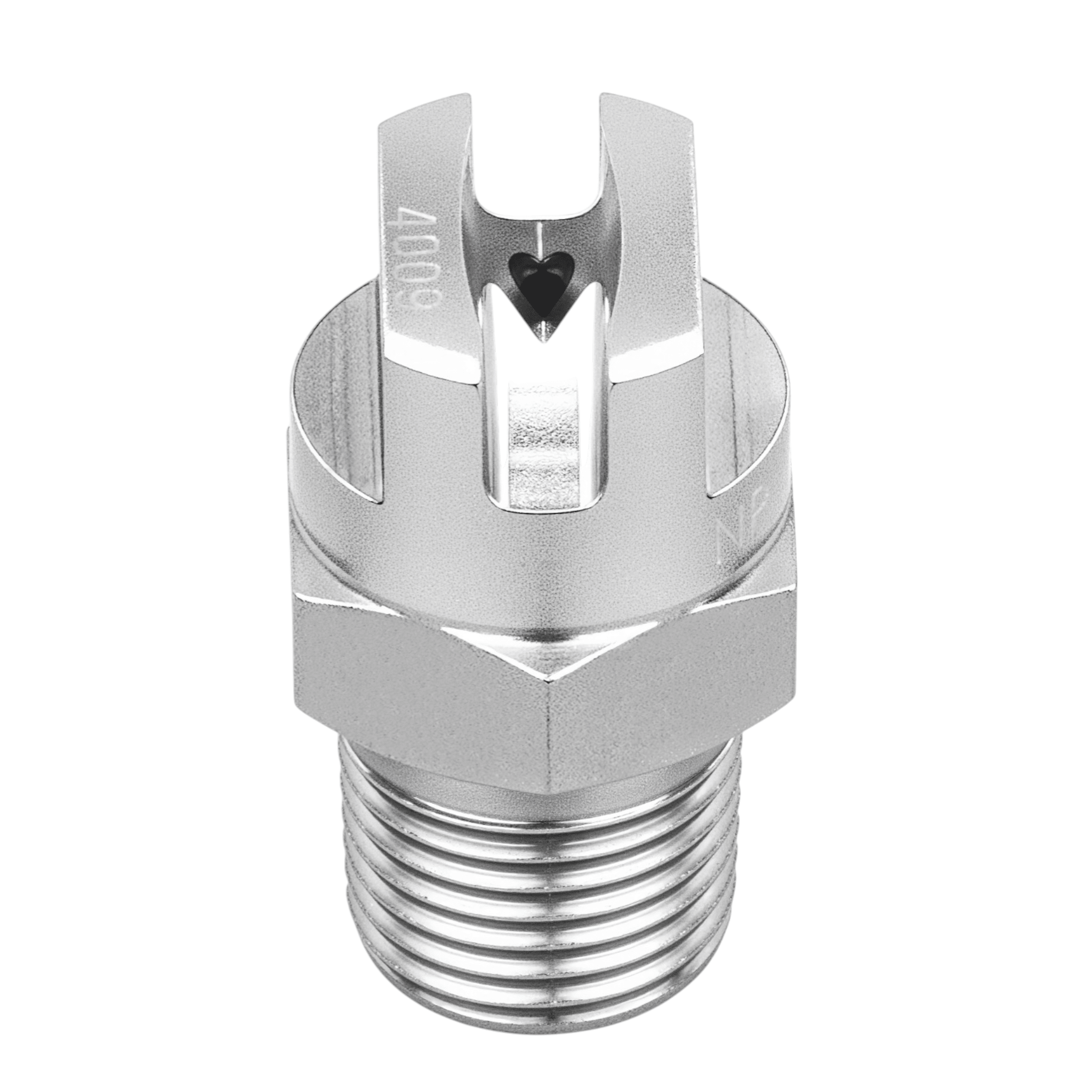

NPHV-4005-1/4-316 – Flat Nozzle, 1/4 Inlet, 316L stainless steel
Images are representative. Products may differ in material or configuration.
Images are representative. Products may differ in material or configuration.
Product Parameters
| Product Family | Flat |
|---|---|
| Product Series | NPHV |
| Capacity Size | 5 |
| Inlet Connection Thread Type | NPT |
| Material Composition Filter | 316L stainless steel |
| Inlet Connection Size (in.) | 1/4 |
| Length (mm) | 23 |
| Length (in) | 0.906 |
| Hex Size (mm) | 14.3 |
| Hex Size (in) | 9/16 |
| Equivalent Orifice Diameter (in) | 0.056 |
| Spray Angle at Rated Pressure (PSI) | 40 |
| Equivalent Orifice Diameter (mm) | 1.4 |
Description
Product Overview
When manufacturing & assembly crews manage dust & pollution control, the NPHV-4005-1/4-316 lets each plant operator integrate a durable, corrosion-resistant nozzle into their spray system. Constructed from 316L stainless steel with a 1/4 inch inlet, this flat nozzle delivers a consistent, uniform spray pattern critical for precise process control. Operators rely on this nozzle to maintain operational efficiency by minimizing downtime caused by corrosion or uneven coverage. The NPHV-4005-1/4-316 supports stable flow rates that translate into predictable cleaning and coating outcomes across demanding environments.
Applications
In cleaning & washing operations, this nozzle enables even distribution of fluids, improving surface cleanliness and reducing residue buildup that can impede downstream equipment function. Its consistency is also valuable in cooling & quenching applications, where uniform spray patterns help achieve rapid and controlled temperature reduction to protect material integrity.
Industries
Sectors such as automotive, food & beverage, and steel & metals benefit from the NPHV-4005-1/4-316's robust construction and reliable spray characteristics. These industries often require equipment that withstands harsh chemical exposure and maintains performance in processes like coating & surface treatment or dust & pollution control, making this nozzle a practical choice.
