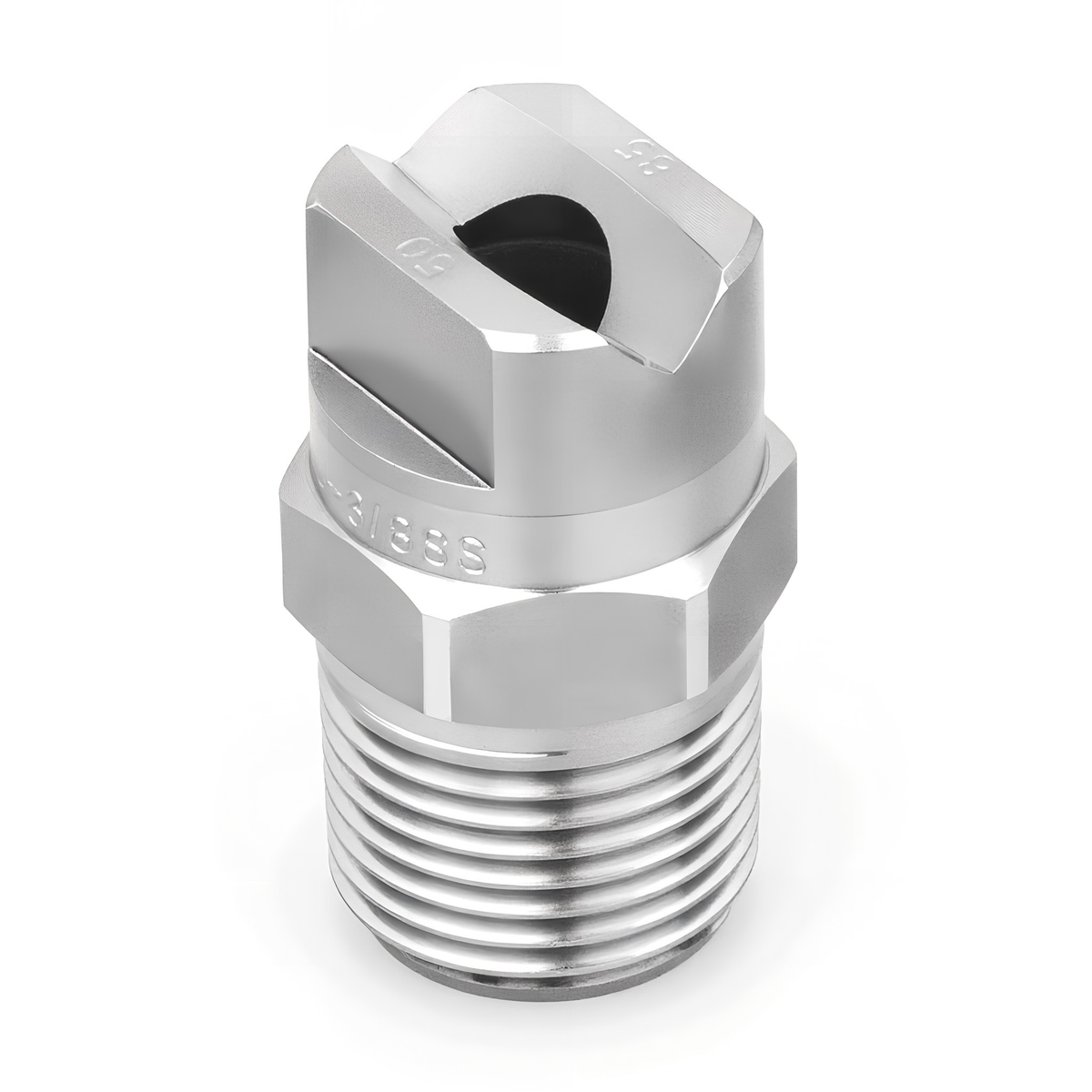

NPHU-2520-3/8-SS – Flat Nozzle, 3/8 Inlet, 303/304 stainless steel
Images are representative. Products may differ in material or configuration.
Images are representative. Products may differ in material or configuration.
Product Parameters
| Product Family | Flat |
|---|---|
| Product Series | NPHU |
| Capacity Size | 20 |
| Inlet Connection Thread Type | NPT |
| Material Composition Filter | 303/304 stainless steel |
| Inlet Connection Size (in.) | 3/8 |
| Length (mm) | 22 |
| Length (in) | 1.250 |
| Hex Size (mm) | 12.7 |
| Hex Size (in) | 11/16 |
| Equivalent Orifice Diameter (in) | 0.106 |
| Spray Angle at Rated Pressure (PSI) | 25 |
| Equivalent Orifice Diameter (mm) | 2.8 |
Description
Product Overview
During specialty applications on a manufacturing & assembly site, quality managers trust the NPHU-2520-3/8-SS to deliver consistent flat spray coverage critical for process precision. Operators connect the nozzle's 3/8-inch inlet to stainless steel piping, leveraging its 303/304 stainless steel construction to withstand corrosive environments. The uniform spray pattern ensures even surface treatment or cleaning, minimizing rework and downtime. This nozzle supports measurable improvements in process repeatability and maintenance intervals.
Applications
The NPHU-2520-3/8-SS is frequently employed in cleaning & washing operations where stable spray distribution helps achieve thorough surface preparation. Its reliable performance also benefits cooling & quenching processes by providing controlled fluid application, which enhances thermal management and product quality.
Industries
Sectors such as automotive, food & beverage, and steel & metals depend on this nozzle for its corrosion resistance and spray consistency under demanding conditions. The building materials, mining, and Energy industries also utilize this product to maintain process efficiency across diverse operational environments.
