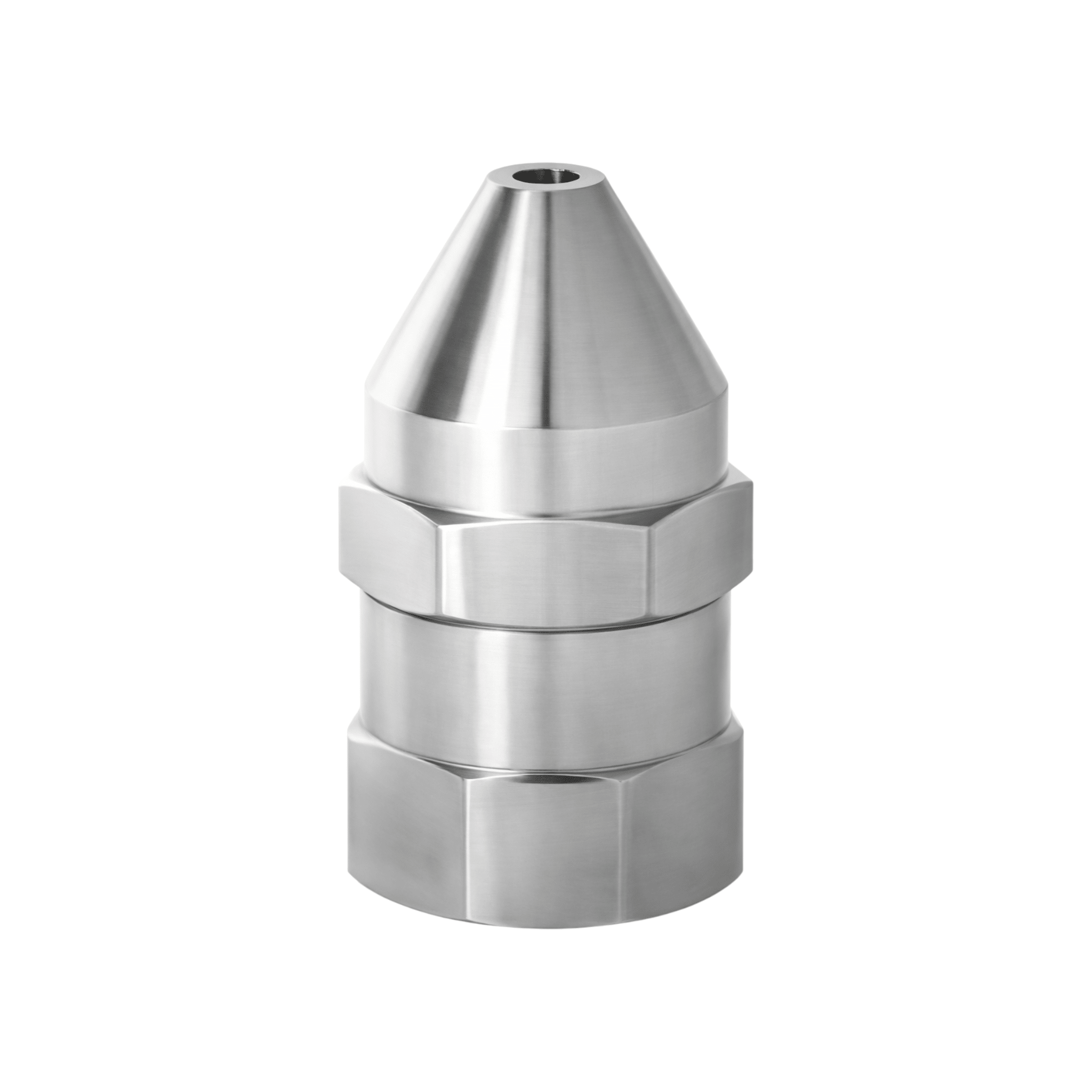

NPG-3030-1/2-316 – Vollkegeldüse, 1/2 Zoll Anschluss, Edelstahl 316L

Produktdetails

SKU NPG-3030-1/2-316

Datenblätter

Are you a distributor? Log in or Register to get pricing.

The NPG-3030-1/2-316 full cone nozzle is manufactured from 316L stainless steel. Capacity Size: 30. Inlet: 1/2" NPT Female. Nominal orifice diameter: 3.2 mm. Spray angle: 30° at rated pressure.

Please see the Specifications tab for detailed dimensions and configuration details.

Imperial Metric

Product Family	Vollkegel
Product Series	NPG-30
Capacity Size	30
Inlet Connection Thread Type	NVT
Inlet Connection Gender	WEIBLICH (W)
Material Composition Filter	Edelstahl 316L
Orifice Diameter. Nom. (mm)	3.2
Orifice Diameter. Nom. (in)	0.125
Inlet Connection Size (in.)	1/2
Length (mm)	66.5
Length (in)	2.343
Hex Size (mm)	31.8
Hex Size (in)	1 1/4
Spray Angle at Rated Pressure (PSI)	30
