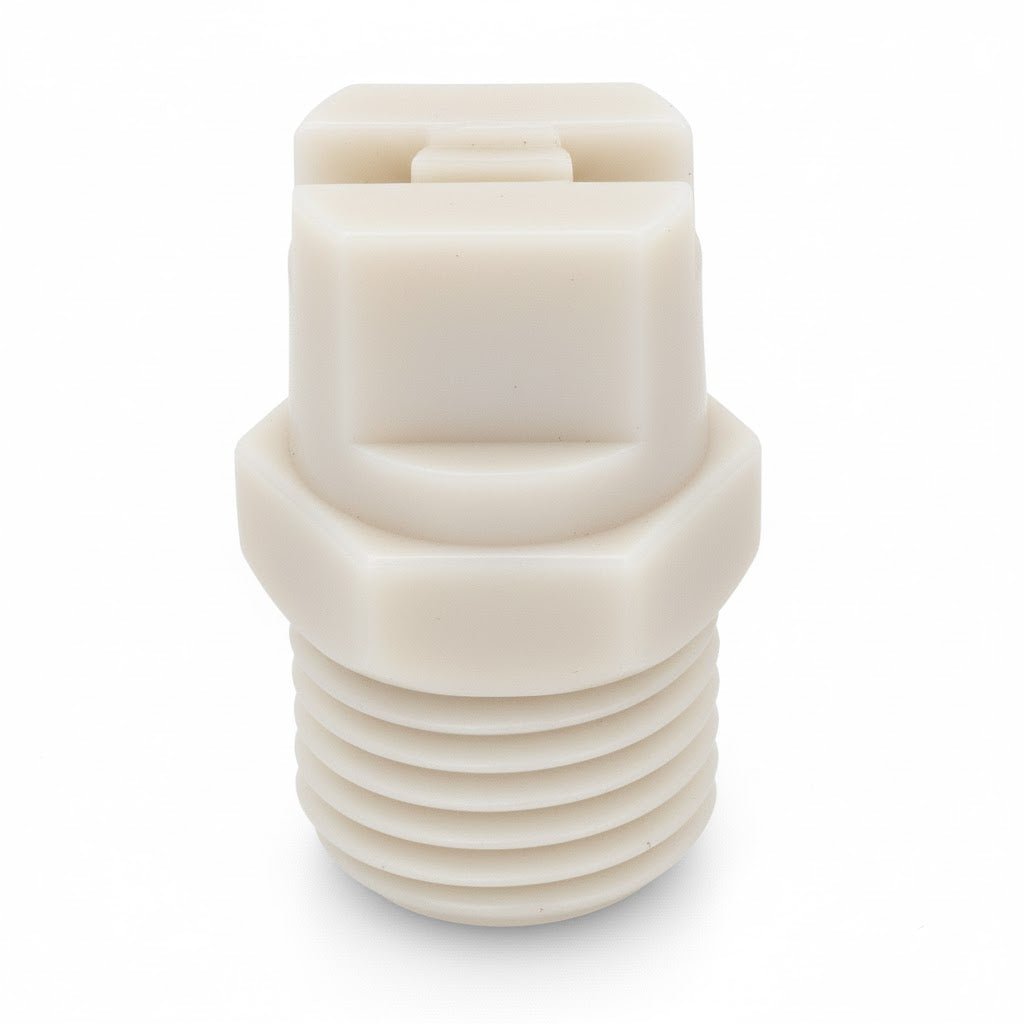

NPHV-9506-1/8-PP – Flat Nozzle, 1/8 Inlet, Polypropylene
Images are representative. Products may differ in material or configuration.
Images are representative. Products may differ in material or configuration.
Product Parameters
| Product Family | Flat |
|---|---|
| Product Series | NPHV-KY/PP |
| Capacity Size | 6 |
| Inlet Connection Thread Type | NPT |
| Material Composition Filter | Polypropylene |
| Inlet Connection Size (in.) | 1/8 |
| Length (in) | 0.875 |
| Hex Size (in) | 1/2 |
| Equivalent Orifice Diameter (in) | 0.061 |
| Spray Angle at Rated Pressure (PSI) | 95 |
Description
Product Overview
Inside the automotive line's coating & surface treatment stage, a quality manager relies on the NPHV-9506-1/8-PP to deliver consistent coverage through its precision flat spray pattern. Constructed from polypropylene, this nozzle withstands corrosive process fluids, maintaining performance integrity over extended production runs. The uniform spray distribution helps minimize material waste while ensuring even application thickness, critical for meeting stringent quality standards. Installation involves connecting the 1/8 inlet to existing fluid lines and calibrating flow rates to optimize coating results.
Applications
In cleaning & washing operations, the NPHV-9506-1/8-PP enables targeted removal of residues without damaging sensitive surfaces, which improves downstream process reliability. Its role in cooling & quenching assists in controlled thermal management, reducing part deformation and supporting consistent product dimensions.
Industries
The nozzle's durability and precise spray control make it suitable for automotive, building materials, Energy, food & beverage, mining, and steel & metals sectors. These industries value the component's ability to perform reliably in corrosive environments while maintaining uniform application, critical for both production efficiency and quality assurance.
