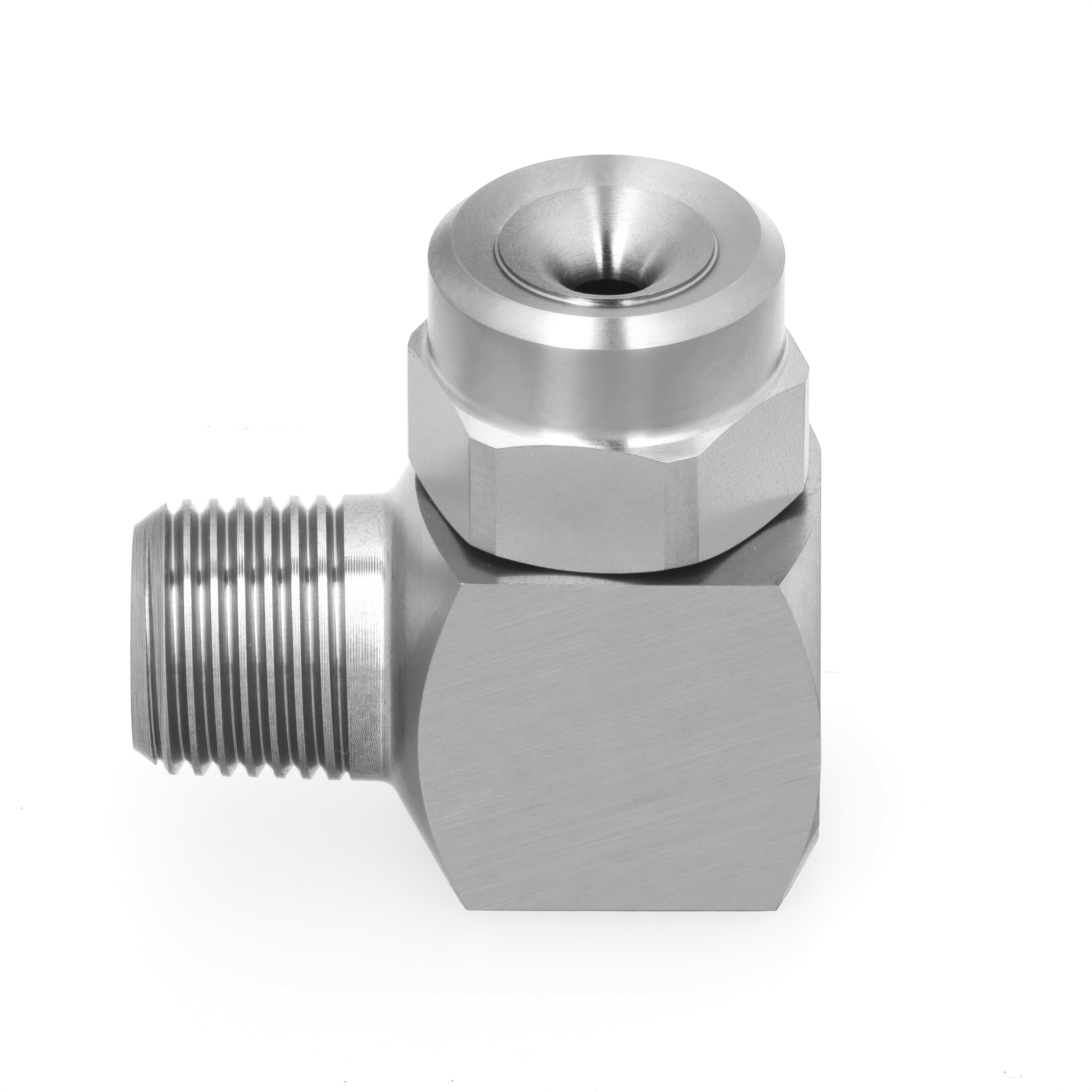

NPMGA-22-3/8-316 – Full Cone Nozzle, 3/8 Inlet, 316L stainless steel
Images are representative. Products may differ in material or configuration.
Images are representative. Products may differ in material or configuration.
Product Parameters
| Product Family | Full Cone |
|---|---|
| Product Series | NPMGA |
| Capacity Size | 22 |
| Inlet Connection Thread Type | NPT |
| Material Composition Filter | 316L stainless steel |
| Orifice Diameter. Nom. (mm) | 4.5 |
| Inlet Connection Size (in.) | 3/8 |
| Length (mm) | 33.5 |
| Max. Free Passage Dia. (mm) | 2.8 |
Description
Product Overview
During fire protection & safety on a building materials site, utilities coordinators rely on the NPMGA-22-3/8-316 to deliver consistent spray coverage essential for hazard mitigation. Constructed from 316l stainless steel, this nozzle resists corrosion in harsh environments, maintaining operational integrity over extended use. The 3/8 inch inlet size facilitates straightforward integration into existing piping systems, while the full cone spray pattern ensures uniform distribution of water or suppressant agents. Operators observe measurable improvements in spray uniformity and reduced downtime due to clogging or material degradation.
Applications
In cleaning & washing operations, the NPMGA-22-3/8-316 provides even spray distribution that enhances residue removal without excessive water consumption. Its role in cooling & quenching processes supports controlled temperature reduction, protecting heat-sensitive components and improving cycle efficiency.
Industries
Sectors such as automotive, mining, and steel & metals incorporate this nozzle for its durability and consistent performance under demanding conditions. Additionally, energy, food & beverage, and cement industries value the corrosion resistance and spray precision that contribute to reliable process outcomes.
