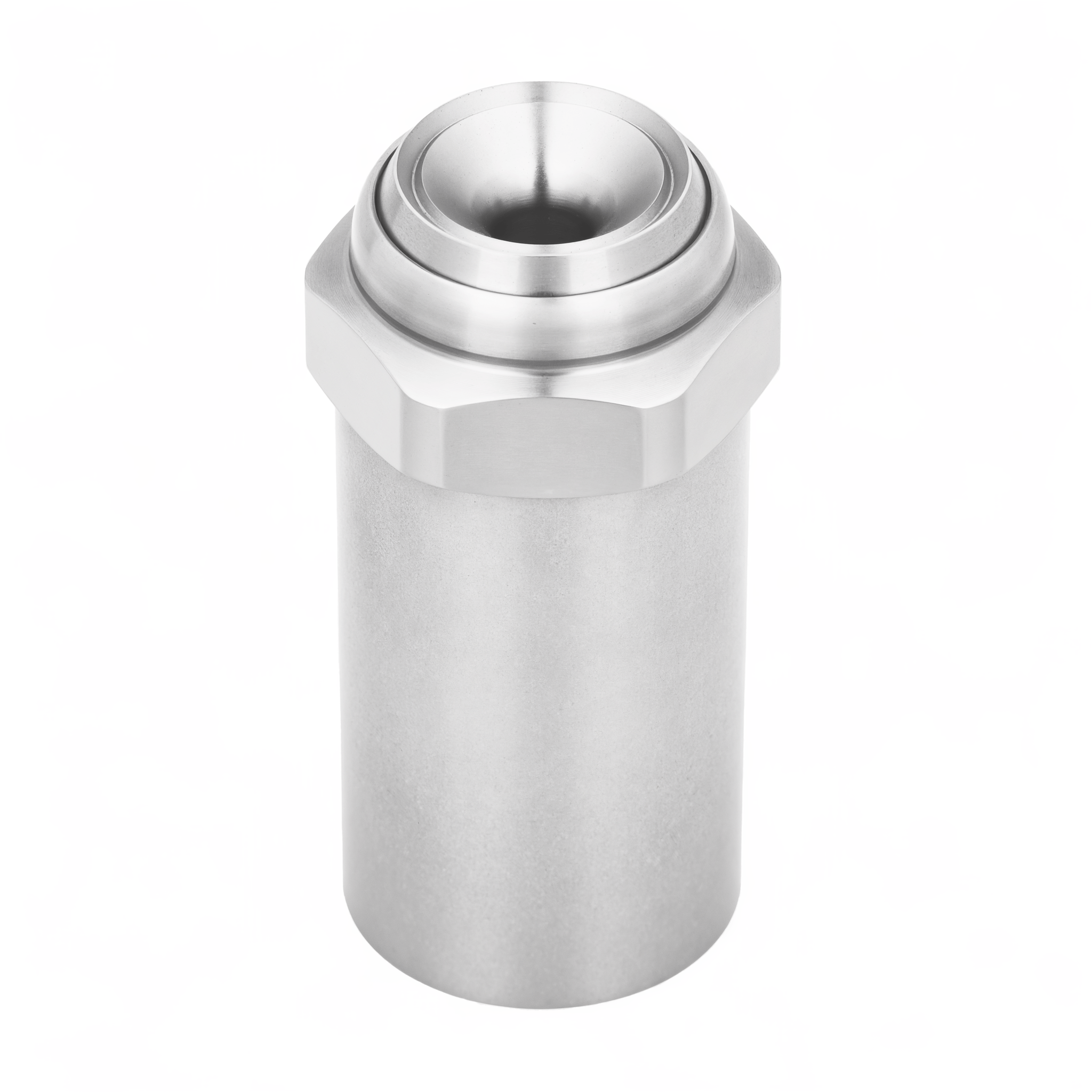

NPMFP-11522-3/8F-316 – Full Cone Nozzle, 3/8 Inlet, 316L stainless steel
Images are representative. Products may differ in material or configuration.
Images are representative. Products may differ in material or configuration.
Description
The NPMFP-11522-3/8F-316 is a precision full cone nozzle made of 316l stainless steel with a 3/8 inlet. It provides uniform spray and corrosion resistance for demanding industrial use.
Product Parameters
| Product Family | Full Cone |
|---|---|
| Product Series | NPMFP |
| Capacity Size | 22 |
| Inlet Connection Thread Type | NPT |
| Material Composition Filter | 316L stainless steel |
| Inlet Connection Size (in.) | 3/8 |
| Length (mm) | 37.2 |
| Length (in) | 1.460 |
| Hex Size (mm) | 20.6 |
| Hex Size (in) | 13/16 |
| Spray Angle at Rated Pressure (PSI) | 115 |
| Max. Free Passage Dia. (mm) | 4.0 |
