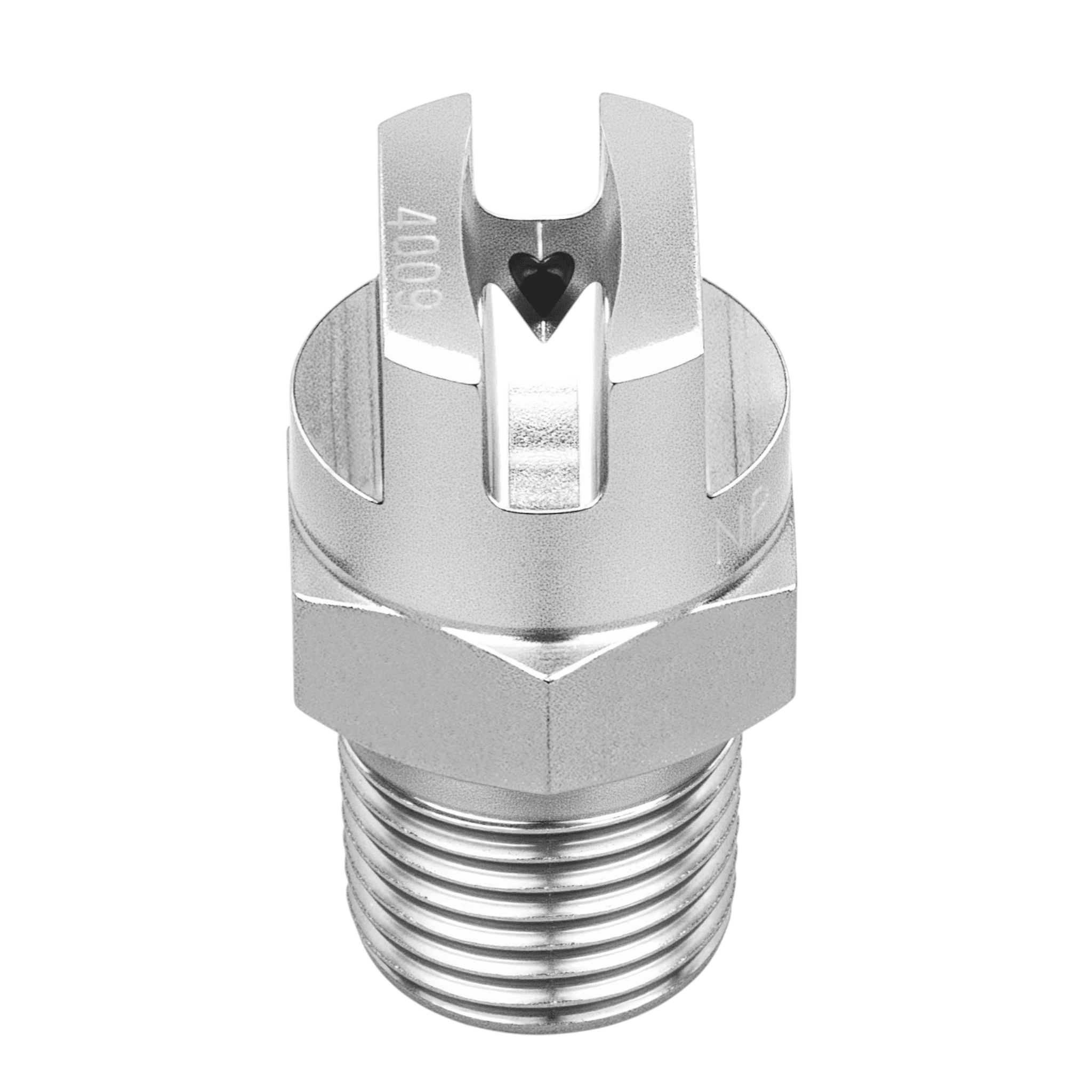

NPHV-5004-1/4-SS – Flat Nozzle, 1/4 Inlet, 303/304 stainless steel
Images are representative. Products may differ in material or configuration.
Images are representative. Products may differ in material or configuration.
Product Parameters
| Product Family | Flat |
|---|---|
| Product Series | NPHV |
| Capacity Size | 4 |
| Inlet Connection Thread Type | NPT |
| Material Composition Filter | 303/304 stainless steel |
| Inlet Connection Size (in.) | 1/4 |
| Length (mm) | 23 |
| Length (in) | 0.906 |
| Hex Size (mm) | 14.3 |
| Hex Size (in) | 9/16 |
| Equivalent Orifice Diameter (in) | 0.05 |
| Spray Angle at Rated Pressure (PSI) | 50 |
| Equivalent Orifice Diameter (mm) | 1.3 |
Description
Product Overview
During specialty applications on a Energy site, production technicians trust the NPHV-5004-1/4-SS to deliver consistent coverage with its precision flat spray pattern. Constructed from 303/304 stainless steel, this nozzle withstands corrosive environments common in industrial settings. Operators rely on its 1/4 inch inlet for easy integration into existing piping systems, ensuring stable flow rates and uniform spray distribution. The durable material and design contribute to extended service life and reduced maintenance intervals.
Applications
The nozzle's uniform spray pattern supports cleaning & washing tasks by efficiently removing residues and contaminants, which helps maintain operational hygiene and equipment longevity. In cooling & quenching processes, the NPHV-5004-1/4-SS achieves rapid temperature reduction, improving throughput and product quality control.
Industries
Sectors such as automotive, mining, and steel & metals utilize this nozzle for its corrosion resistance and reliable spray performance in demanding conditions. Food & beverage, beverage bottling & packaging, and breweries & wineries also select this component to maintain stringent cleanliness standards while optimizing fluid delivery during manufacturing & assembly operations.
