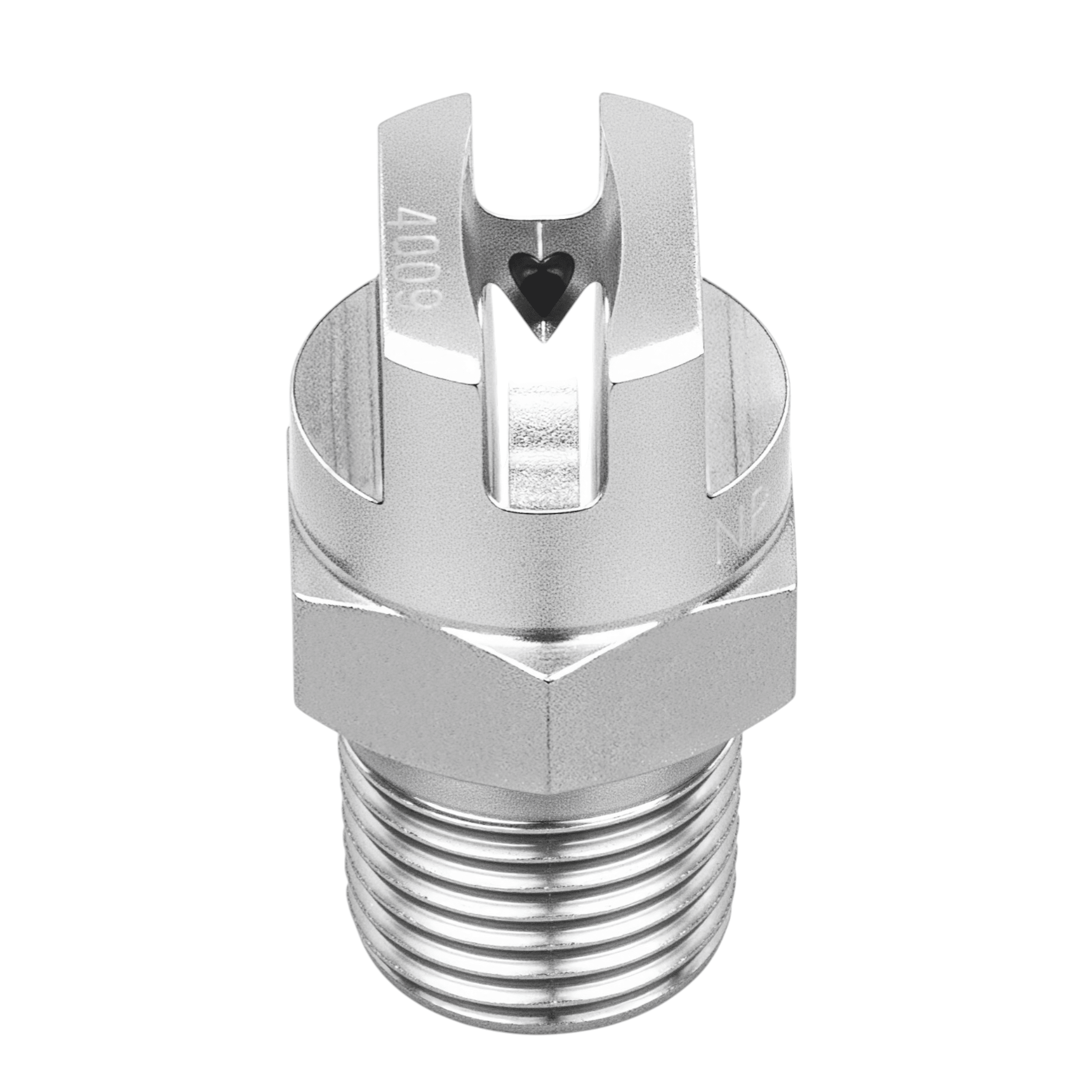

NPHV-4002-1/4-SS – Flat Nozzle, 1/4 Inlet, 303/304 Stainless Steel
Images are representative. Products may differ in material or configuration.
Images are representative. Products may differ in material or configuration.
Product Parameters
| Product Family | Flat |
|---|---|
| Product Series | NPHV |
| Capacity Size | 2 |
| Inlet Connection Thread Type | NPT |
| Material Composition Filter | 303/304 stainless steel |
| Inlet Connection Size (in.) | 1/4 |
| Length (mm) | 23 |
| Length (in) | 0.906 |
| Hex Size (mm) | 14.3 |
| Hex Size (in) | 9/16 |
| Equivalent Orifice Diameter (in) | 0.035 |
| Spray Angle at Rated Pressure (PSI) | 40 |
| Equivalent Orifice Diameter (mm) | 0.89 |
Description
Product Overview
Inside the cement line's car wash stage, a process engineer relies on the NPHV-4002-1/4-SS to deliver consistent spray coverage essential for thorough cleaning. Constructed from 303/304 stainless steel, the nozzle withstands harsh chemical environments and mechanical wear. Its flat spray pattern ensures even distribution of cleaning fluids, reducing water and detergent consumption. By maintaining uniform spray, the nozzle helps optimize cycle times and enhance equipment longevity.
Applications
In cleaning & washing processes, the flat spray pattern efficiently removes contaminants without overspray, improving resource use and surface preparation. Additionally, this nozzle supports cooling & quenching operations by providing controlled fluid application, which minimizes thermal stress on components downstream.
Industries
The NPHV-4002-1/4-SS is favored across industries such as automotive, steel & metals, and Energy for its corrosion resistance and precise fluid control. Its durability and reliable spray distribution are critical for processes in food & beverage manufacturing and mining, where consistent nozzle performance impacts both product quality and operational uptime.
