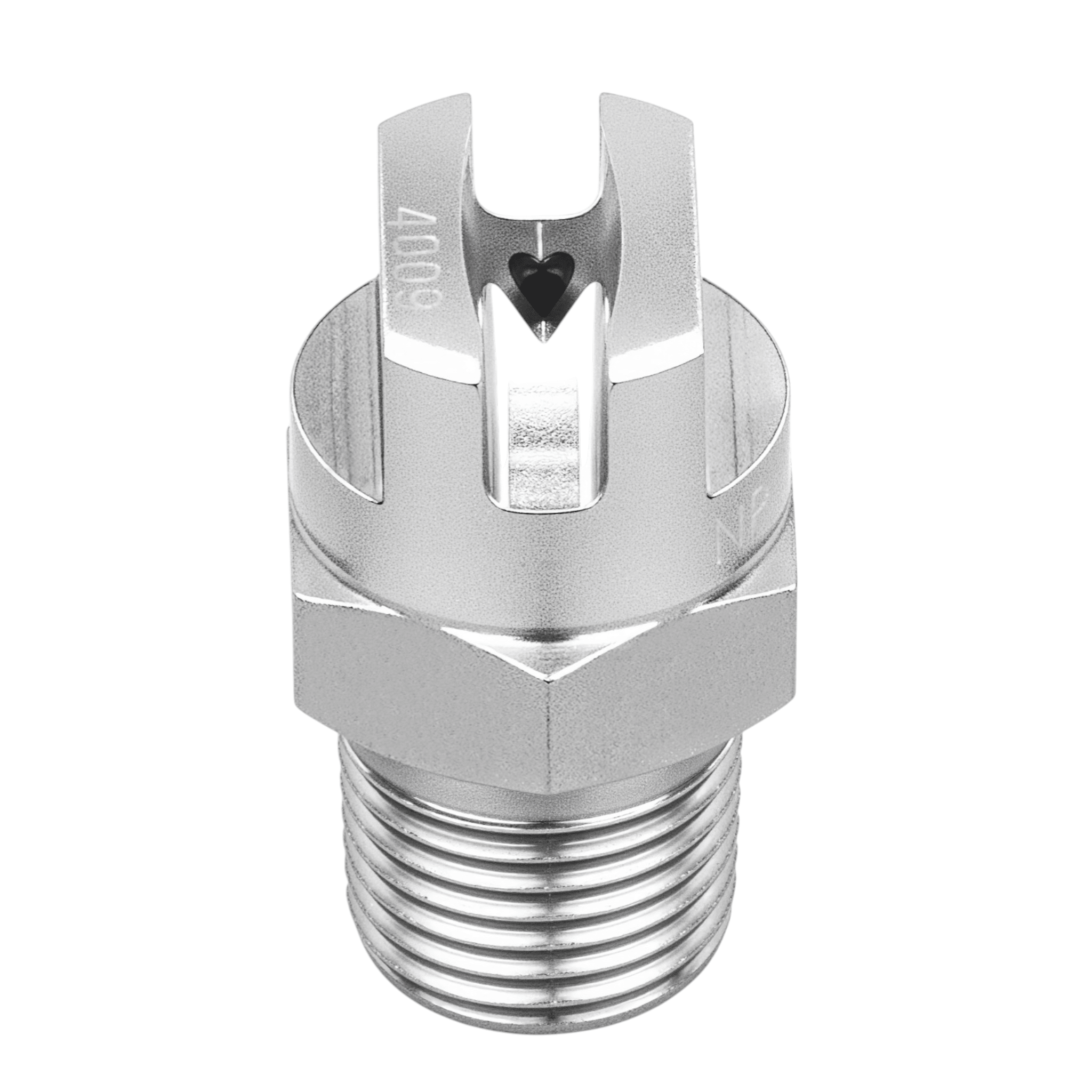

NPHV-11001-1/4-316 – Flat Nozzle, 1/4 Inlet, 316L stainless steel
Images are representative. Products may differ in material or configuration.
Images are representative. Products may differ in material or configuration.
Product Parameters
| Product Family | Flat |
|---|---|
| Product Series | NPHV |
| Capacity Size | 1 |
| Inlet Connection Thread Type | NPT |
| Material Composition Filter | 316L stainless steel |
| Inlet Connection Size (in.) | 1/4 |
| Length (mm) | 23 |
| Length (in) | 0.906 |
| Hex Size (mm) | 14.3 |
| Hex Size (in) | 9/16 |
| Equivalent Orifice Diameter (in) | 0.026 |
| Spray Angle at Rated Pressure (PSI) | 110 |
| Equivalent Orifice Diameter (mm) | 0.66 |
Description
Product Overview
Inside the dairy line's specialty applications stage, a quality manager relies on the NPHV-11001-1/4-316 to deliver consistent spray coverage for surface treatment and sanitation tasks. Constructed from 316L stainless steel, this flat nozzle withstands corrosive environments while maintaining uniform fluid distribution. The 1/4-inch inlet size integrates smoothly with existing piping systems, ensuring stable flow rates that help reduce downtime and maintain product integrity. Precise spray angles contribute to effective cleaning cycles, directly impacting operational efficiency.
Applications
In cleaning & washing processes, the nozzle ensures even application of cleaning agents, reducing residue buildup and lowering maintenance frequency. During cooling & quenching operations, its flat spray pattern promotes rapid heat dissipation, which supports consistent material properties downstream.
Industries
The NPHV-11001-1/4-316 is favored across automotive, mining, and steel & metals industries due to its corrosion resistance and reliable spray performance under harsh conditions. Additionally, sectors such as food & beverage, bakeries & confectioneries, and beverage bottling & packaging benefit from its sanitary design and compatibility with varied process fluids.
