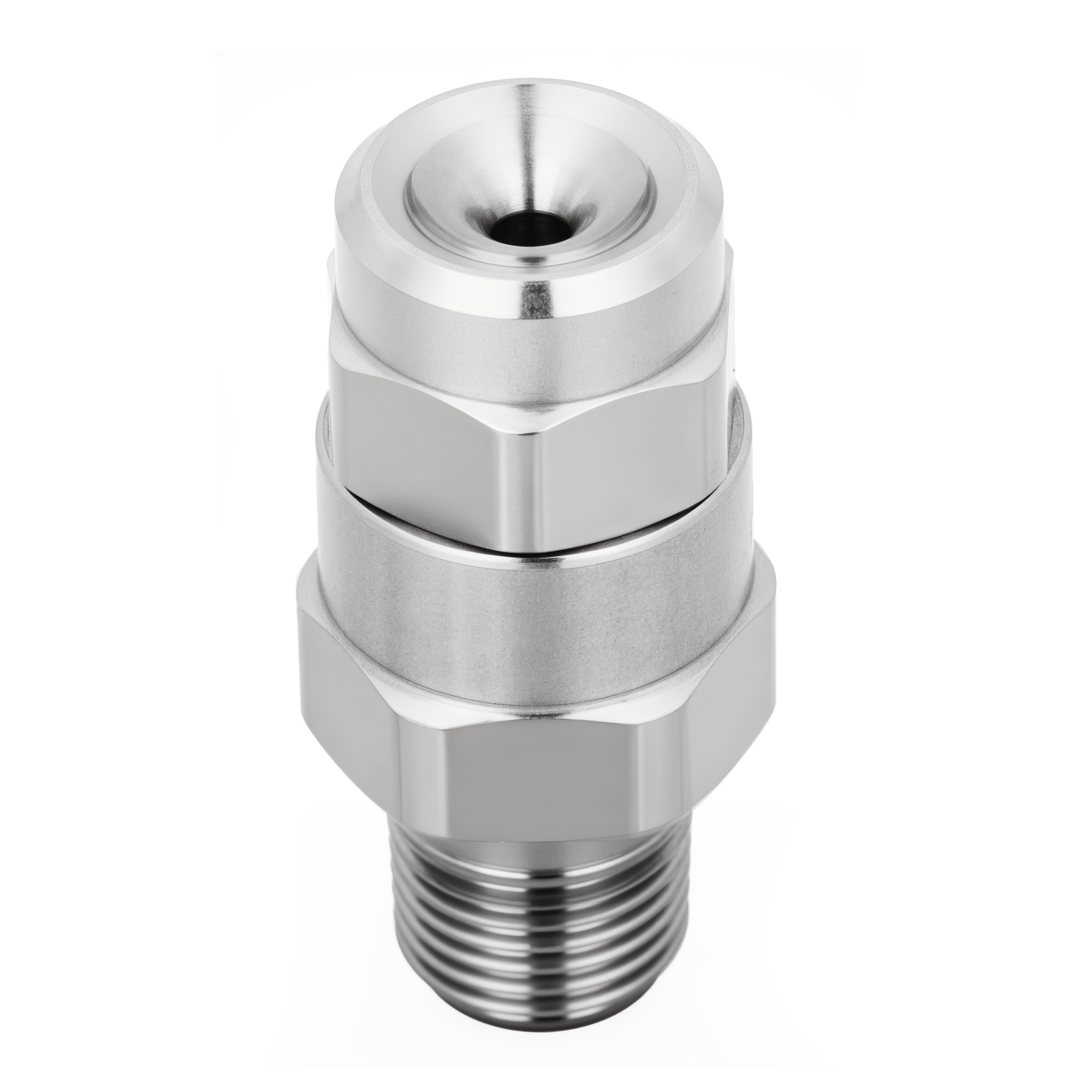

NPGG-12W-1/4-316 – Full Cone Nozzle, 1/4 Inlet, 316L Stainless Steel
Images are representative. Products may differ in material or configuration.
Images are representative. Products may differ in material or configuration.
Product Parameters
| Product Family | Full Cone |
|---|---|
| Product Series | NPGG |
| Capacity Size | 12W |
| Inlet Connection Thread Type | NPT |
| Inlet Connection Gender | MALE (M) |
| Material Composition Filter | 316L stainless steel |
| Orifice Diameter. Nom. (mm) | 3.2 |
| Inlet Connection Size (in.) | 1/4 |
| Length (mm) | 39.5 |
| Length (in) | 1.563 |
| Hex Size (mm) | 17.5 |
| Hex Size (in) | 11/16 |
| Equivalent Orifice Diameter (in) | 0.125 |
| Max. Free Passage Dia. (mm) | 1.3 |
Description
Product Overview
Inside the manufacturing & assembly line's cleaning & washing stage, a maintenance supervisor relies on the NPGG-12W-1/4-316 to deliver consistent and reliable spray performance. Constructed from 316L stainless steel, the nozzle resists corrosion while maintaining structural integrity in harsh environments. Its precision full cone spray pattern ensures uniform coverage, reducing rework caused by incomplete cleaning. By integrating this nozzle, operators achieve measurable improvements in fluid distribution and equipment uptime.
Applications
The NPGG-12W-1/4-316 is frequently used in cleaning & washing operations where consistent spray coverage is critical to process efficiency. Its uniform full cone pattern also supports cooling & quenching processes, minimizing thermal stress and improving overall component quality downstream.
Industries
Sectors such as automotive, steel & metals, and mining utilize this nozzle for its durability and corrosion resistance in demanding applications. Additionally, food & beverage, breweries & wineries, and building materials industries benefit from its precise spray control, which supports both sanitation and surface treatment requirements.
