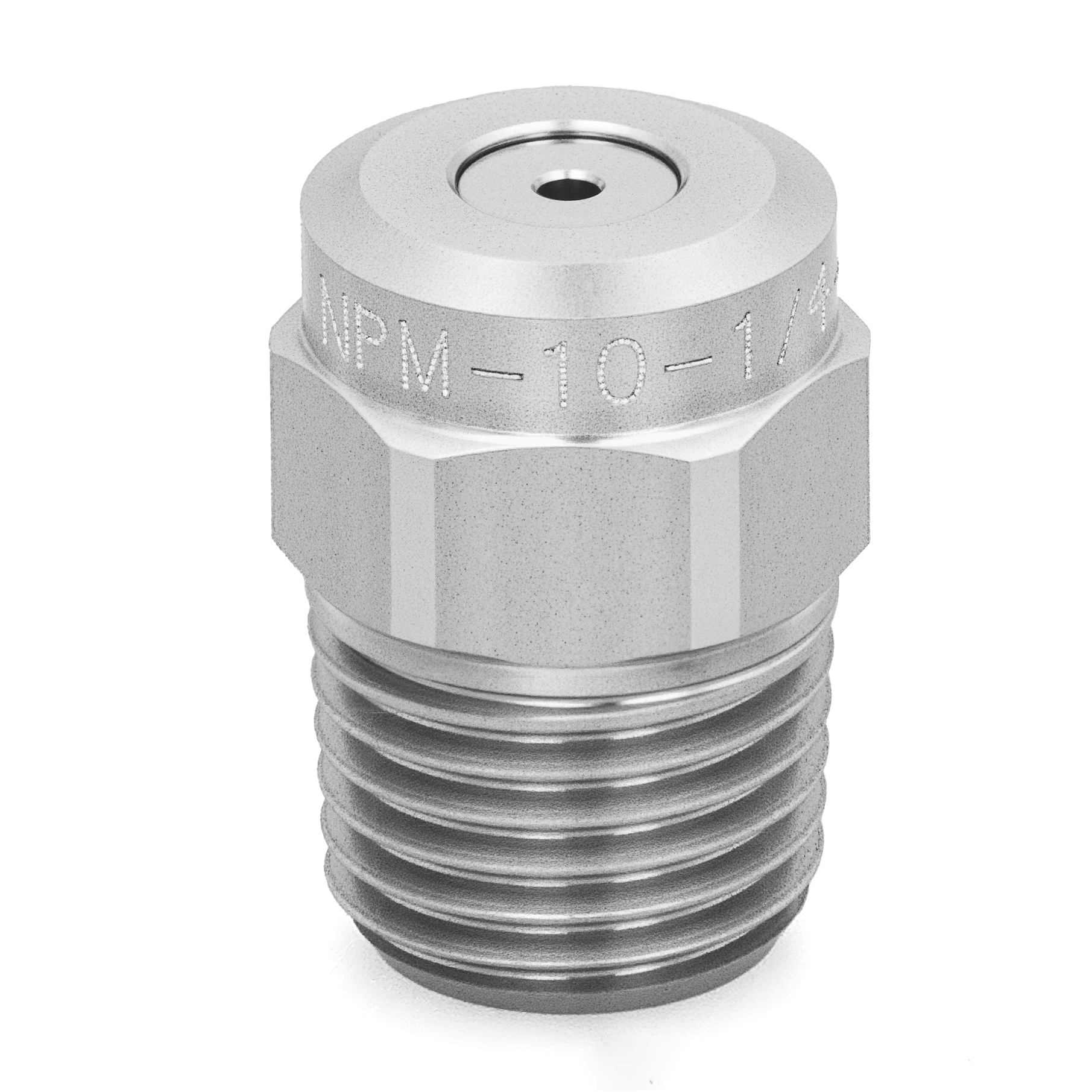

NPM-1-1/4-SS β Hydraulic Atomizing, Fog & Mist Nozzle, 1/4 Inlet, 303/304 Stainless Steel
Images are representative. Products may differ in material or configuration.
Images are representative. Products may differ in material or configuration.
Product Parameters
| Product Family | Hydraulic Atomizing Fog & Mist |
|---|---|
| Product Series | NPM |
| Capacity Size | 1 |
| Material Composition Filter | 303/304 stainless steel |
| Body Hex Size | 14.3 |
| Orifice Diameter. Nom. (mm) | 0.51 |
| Inlet Connection Size (in.) | 1/4 |
| Length (mm) | 21.5 |
Description
Product Overview
Inside the food & beverage line's disinfection & sanitation stage, a utilities coordinator relies on the NPM-1-1/4-SS to deliver a consistent and controlled spray pattern essential for effective surface coverage. Constructed from 303/304 stainless steel, the nozzle withstands corrosive cleaning agents and frequent washdowns without degradation. Its 1/4-inch inlet facilitates straightforward integration into existing hydraulic systems, enabling uniform misting that enhances hygiene protocols while minimizing chemical use.
Applications
The NPM-1-1/4-SS supports dust & pollution control by producing fine atomized sprays that reduce airborne particulates in processing areas. Additionally, its ability to maintain precise humidification & conditioning conditions downstream improves product quality and operational efficiency.
