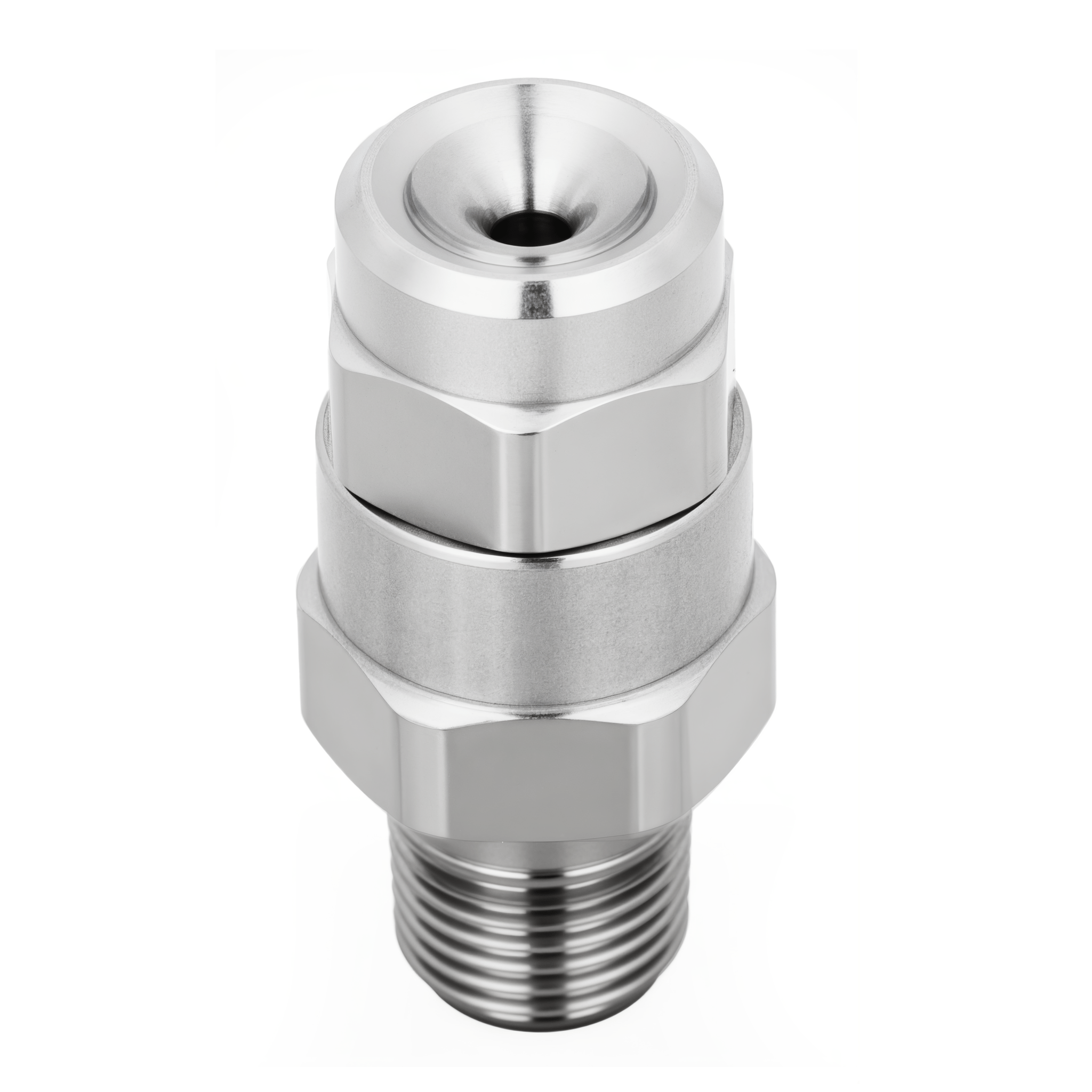

NPGG-35W-1/2-SS – Full Cone Nozzle, 1/2 Inlet, 303/304 Stainless Steel
Images are representative. Products may differ in material or configuration.
Images are representative. Products may differ in material or configuration.
Product Parameters
| Product Family | Full Cone |
|---|---|
| Product Series | NPGG |
| Capacity Size | 35W |
| Inlet Connection Thread Type | NPT |
| Inlet Connection Gender | MALE (M) |
| Material Composition Filter | 303/304 stainless steel |
| Orifice Diameter. Nom. (mm) | 6 |
| Inlet Connection Size (in.) | 1/2 |
| Length (mm) | 56.5 |
| Length (in) | 2.219 |
| Hex Size (mm) | 25.4 |
| Hex Size (in) | 1 |
| Equivalent Orifice Diameter (in) | 0.234 |
| Max. Free Passage Dia. (mm) | 3.2 |
Description
Product Overview
During cooling & quenching on a breweries & wineries site, maintenance supervisors trust the NPGG-35W-1/2-SS to deliver consistent fluid distribution critical for temperature control. Constructed from 303/304 stainless steel, this full cone nozzle withstands harsh conditions while maintaining corrosion resistance. Operators install the nozzle using its 1/2-inch inlet, ensuring a uniform spray pattern that enhances process reliability and reduces downtime. The precise atomization improves cooling efficiency and protects equipment from thermal stress.
Applications
In cleaning & washing operations, the NPGG-35W-1/2-SS provides thorough coverage that facilitates effective removal of residues and contaminants. Its role in cooling & quenching supports rapid temperature reduction, which is essential for maintaining product integrity and operational safety in demanding environments.
Industries
The nozzle's durability and consistent spray characteristics make it a preferred choice across automotive, building materials, Energy, and steel & metals sectors. Additionally, it serves the food & beverage and cement industries by meeting strict performance demands for corrosion resistance and spray uniformity in process applications.
