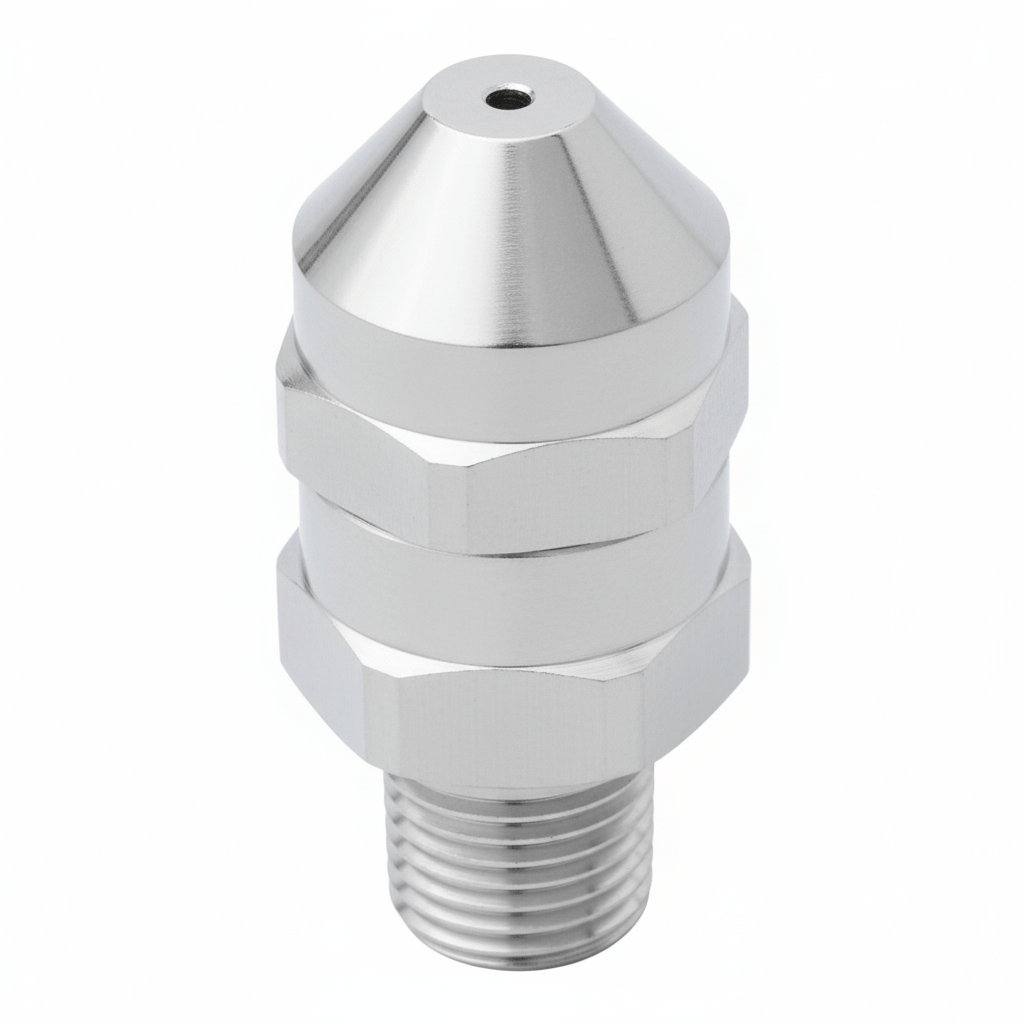

NPGG-1590-1/2-SS – Full Cone Nozzle, 1/2 Inlet, 303/304 stainless steel
Images are representative. Products may differ in material or configuration.
Images are representative. Products may differ in material or configuration.
Product Parameters
| Product Family | Full Cone |
|---|---|
| Product Series | NPGG-15 |
| Capacity Size | 90 |
| Inlet Connection Thread Type | NPT |
| Inlet Connection Gender | MALE (M) |
| Material Composition Filter | 303/304 stainless steel |
| Orifice Diameter. Nom. (mm) | 5.6 |
| Orifice Diameter. Nom. (in) | 0.219 |
| Inlet Connection Size (in.) | 1/2 |
| Length (mm) | 70 |
| Length (in) | 2.406 |
| Hex Size (mm) | 31.8 |
| Hex Size (in) | 1 |
| Spray Angle at Rated Pressure (PSI) | 15 |
Description
Product Overview
When breweries & wineries crews manage cleaning & washing, the NPGG-1590-1/2-SS lets each plant operator deploy a reliable full cone spray pattern that ensures thorough coverage while minimizing chemical waste. Constructed from 303/304 stainless steel, this nozzle resists corrosion in harsh environments, maintaining consistent performance over extended use. Its 1/2-inch inlet size integrates easily into standard piping systems, allowing operators to achieve uniform fluid distribution critical for maintaining sanitary conditions. The NPGG-1590-1/2-SS helps maintain operational efficiency by delivering predictable flow rates and spray angles suited to delicate cleaning tasks.
Applications
In cleaning & washing processes, the NPGG-1590-1/2-SS delivers a uniform spray that improves surface contact and reduces residual buildup, enhancing overall equipment hygiene. Cooling & quenching applications benefit from its consistent cone coverage, which allows for controlled temperature regulation and minimized thermal stress on materials.
