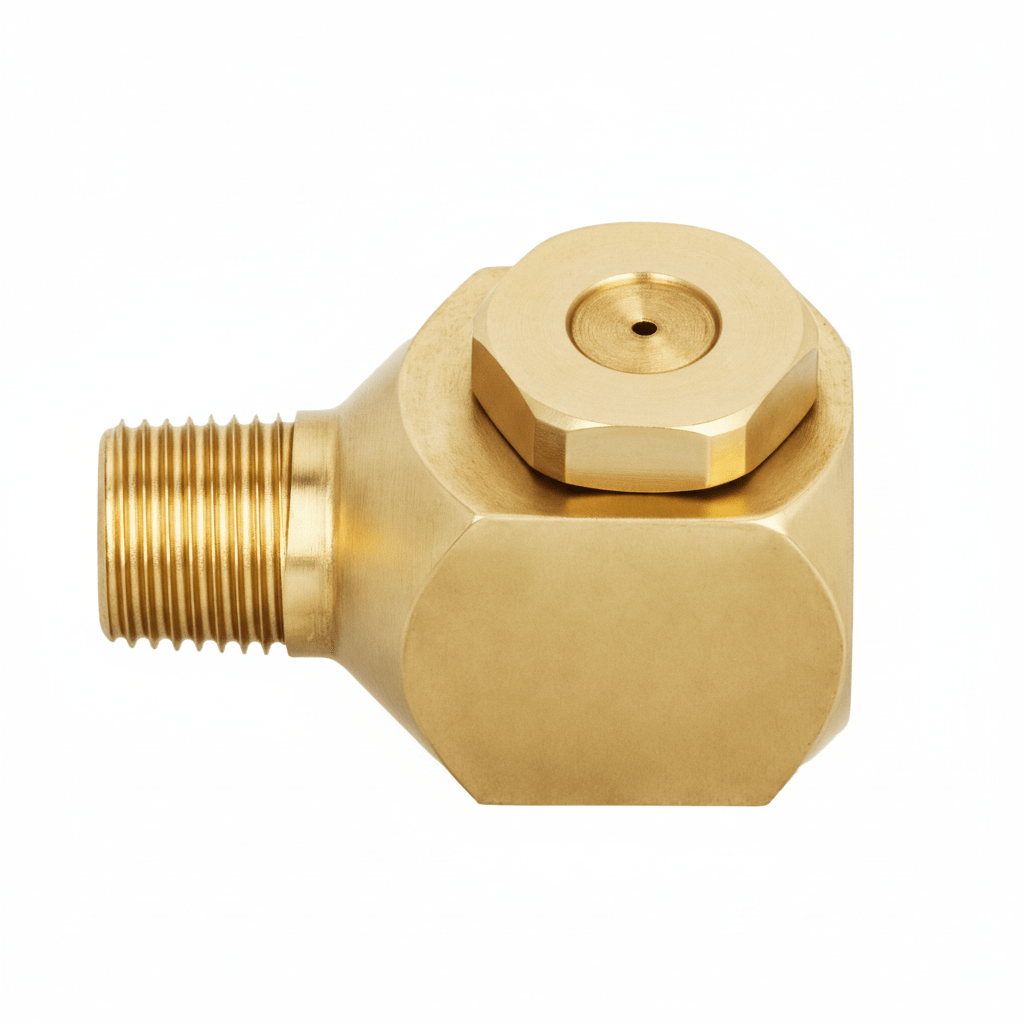

NPBX-3-5W-1/8 – Hollow Cone Nozzle, 1/8 Inlet, Brass
Images are representative. Products may differ in material or configuration.
Images are representative. Products may differ in material or configuration.
Product Parameters
| Product Family | Hollow Cone |
|---|---|
| Product Series | NPBX |
| Capacity Size | 3-5W |
| Inlet Connection Thread Type | NPT |
| Inlet Connection Gender | MALE (M) |
| Material Composition Filter | Brass |
| Orifice Diameter. Nom. (mm) | 3.2 |
| Orifice Diameter. Nom. (in) | 0.125 |
| Inlet Connection Size (in.) | 1/8 |
| Length (mm) | 30.5 |
| Length (in) | 1.188 |
| Inlet Dia. Nom. (in) | 0.094 |
| Max. Free Passage Dia. (mm) | 2.4 |
Description
Product Overview
A production technician in the manufacturing & assembly facility uses the NPBX-3-5W-1/8 during specialty applications to achieve consistent coating coverage on critical components. The brass construction ensures durability and resistance to corrosion in harsh operating environments. With its precision hollow cone spray pattern and 1/8 inlet, the nozzle delivers uniform atomization that helps maintain process stability and reduces material waste. This level of control supports tighter quality tolerances and extends maintenance intervals.
Applications
In cooling & quenching operations, the NPBX-3-5W-1/8 provides uniform spray distribution that enhances temperature control and improves cycle times. Its effectiveness in dust & pollution control also helps reduce airborne particulates, contributing to safer work environments and compliance with regulatory standards.
Industries
The nozzle is favored in automotive, building materials, and chemical processing sectors where consistent spray performance and corrosion resistance are critical. Additionally, steel & metals, breweries & wineries, and cement industries benefit from its reliable operation under demanding conditions, supporting processes that require precise fluid delivery and minimal downtime.
