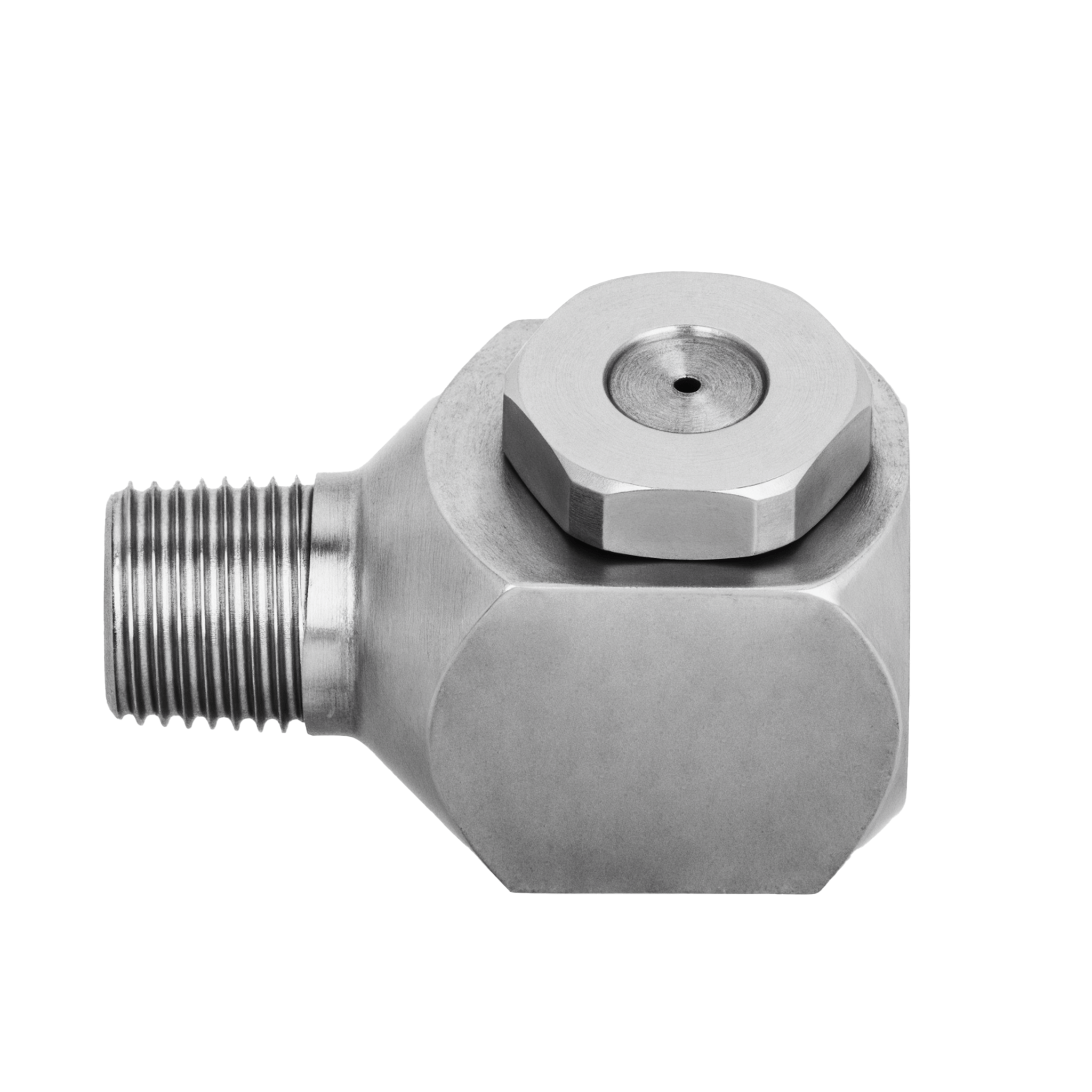

NPBX-3-5W-1/8-316 – Hollow Cone Nozzle, 1/8 Inlet, 316L Stainless Steel
Images are representative. Products may differ in material or configuration.
Images are representative. Products may differ in material or configuration.
Product Parameters
| Product Family | Hollow Cone |
|---|---|
| Product Series | NPBX |
| Capacity Size | 3-5W |
| Inlet Connection Thread Type | NPT |
| Inlet Connection Gender | MALE (M) |
| Material Composition Filter | 316L stainless steel |
| Orifice Diameter. Nom. (mm) | 3.2 |
| Orifice Diameter. Nom. (in) | 0.125 |
| Inlet Connection Size (in.) | 1/8 |
| Length (mm) | 30.5 |
| Length (in) | 1.188 |
| Inlet Dia. Nom. (in) | 0.094 |
| Max. Free Passage Dia. (mm) | 2.4 |
Description
Product Overview
A plant operator in the Energy facility uses the NPBX-3-5W-1/8-316 during cooling & quenching to ensure consistent temperature control on metal components. Constructed from 316L stainless steel, this nozzle withstands corrosive environments while delivering a uniform hollow cone spray pattern. The precision design of the NPBX-3-5W-1/8-316 allows for efficient fluid distribution through its 1/8-inch inlet, contributing to optimal process efficiency and reduced material waste. Operators rely on its durability and consistent spray coverage to maintain equipment quality and operational stability.
Applications
In cooling & quenching processes, the nozzle's uniform spray supports rapid heat dissipation, minimizing thermal distortion in treated materials. Additionally, its use in dust & pollution control aids in suppressing airborne particulates, improving workplace safety and regulatory compliance.
Industries
Sectors such as automotive, chemical processing, and steel & metals prioritize this nozzle for its resistance to harsh conditions and reliable spray performance. It is equally valued in manufacturing & assembly and breweries & wineries, where precise fluid application impacts product quality and equipment longevity.
