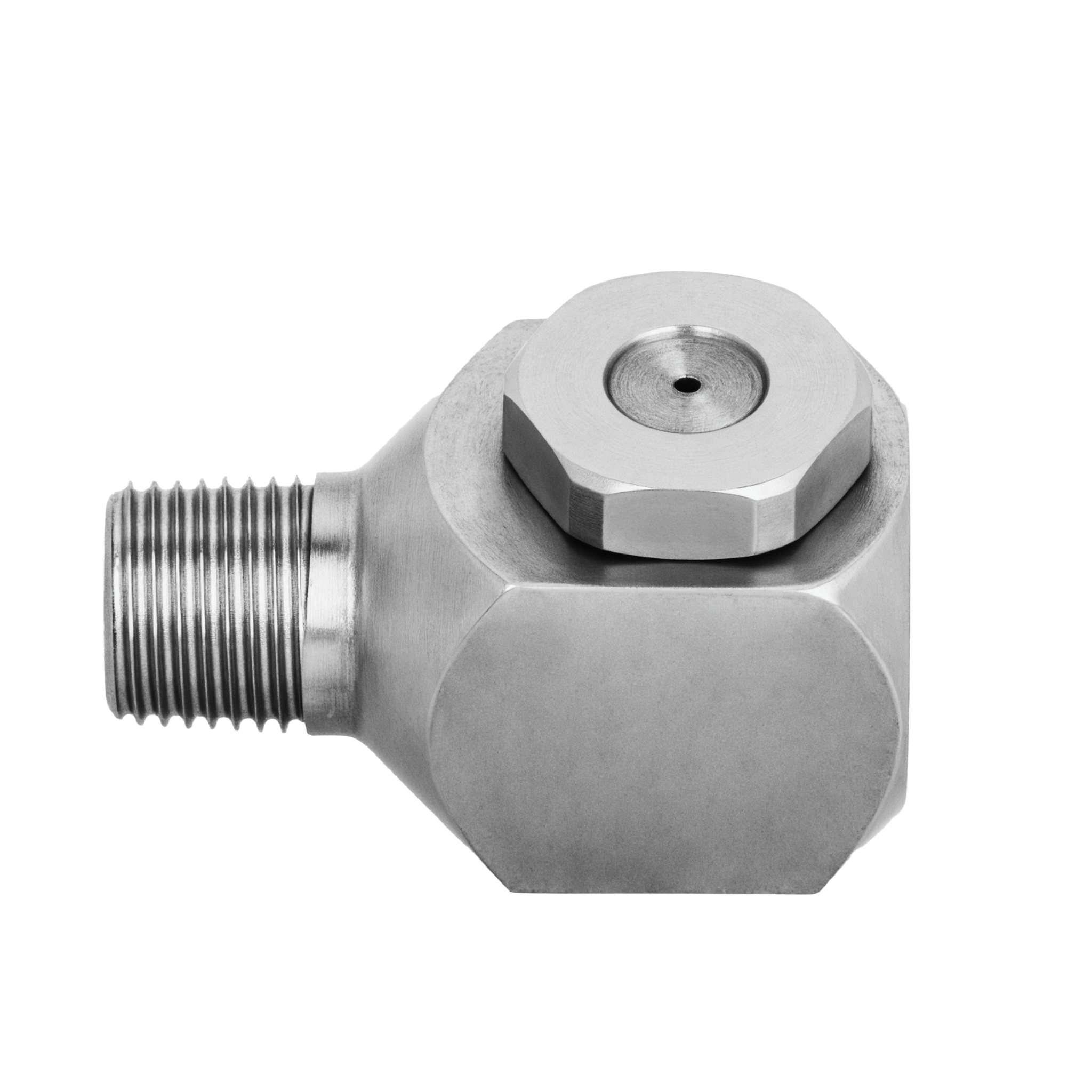

NPBX-10-20W-3/8-316 β Hollow Cone Nozzle, 3/8 Inlet, 316L Stainless Steel
Images are representative. Products may differ in material or configuration.
Images are representative. Products may differ in material or configuration.
Product Parameters
| Product Family | Hollow Cone |
|---|---|
| Product Series | NPBX |
| Capacity Size | 10-20W |
| Inlet Connection Thread Type | NPT |
| Inlet Connection Gender | MALE (M) |
| Material Composition Filter | 316L stainless steel |
| Orifice Diameter. Nom. (mm) | 5.2 |
| Orifice Diameter. Nom. (in) | 0.234 |
| Inlet Connection Size (in.) | 3/8 |
| Length (mm) | 40 |
| Length (in) | 1.563 |
| Inlet Dia. Nom. (in) | 0.203 |
| Max. Free Passage Dia. (mm) | 6 |
Description
Product Overview
Inside the building materials line's cooling & quenching stage, a utilities coordinator relies on the NPBX-10-20W-3/8-316 to deliver consistent spray coverage that supports rapid temperature reduction. Constructed from 316L stainless steel, this nozzle withstands corrosive environments encountered during the quenching process. Its precision hollow cone design ensures uniform droplet distribution, which improves heat transfer efficiency and minimizes thermal stress on materials. The 3/8-inch inlet aligns with existing piping systems, facilitating straightforward installation and maintenance.
Applications
The NPBX-10-20W-3/8-316 is commonly utilized in cooling & quenching operations where controlling thermal conditions is critical to product quality. Additionally, its design supports dust & pollution control processes by providing fine, evenly distributed sprays that suppress airborne particulates effectively.
Industries
This nozzle is favored across automotive, building materials, and chemical processing industries for its durability and consistent spray pattern. Energy, steel & metals, and breweries & wineries sectors also select this component due to its corrosion resistance and compatibility with various process fluids.
